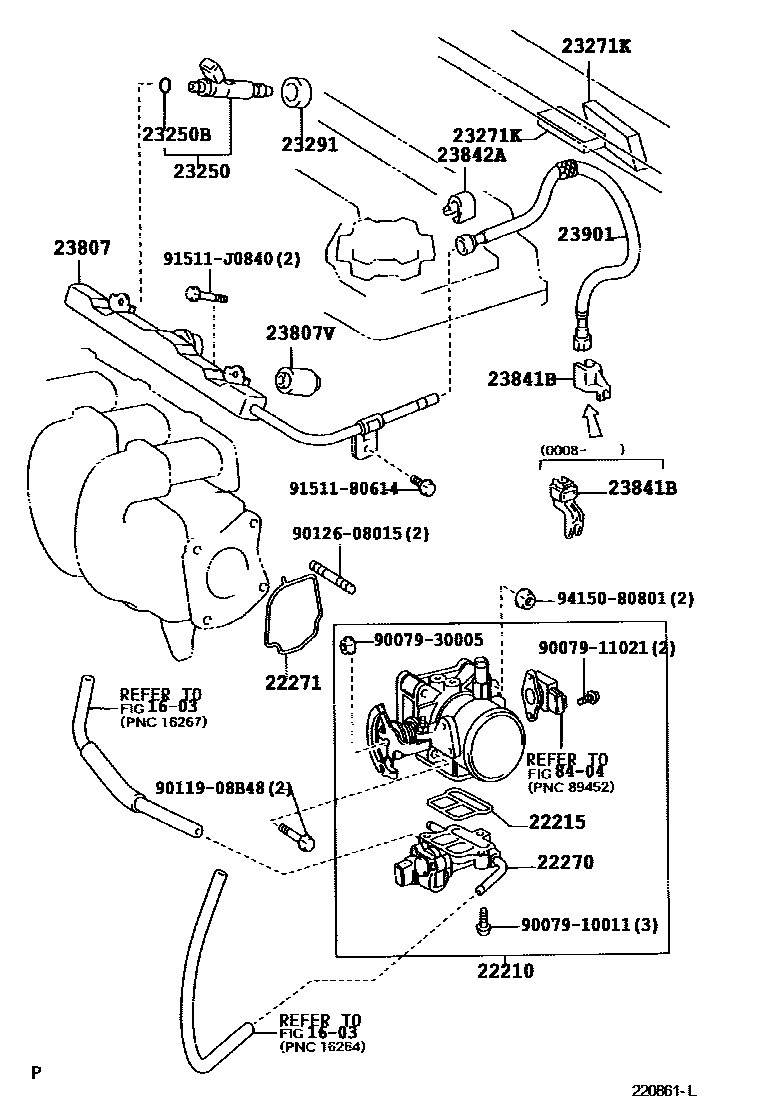

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22210BODY ASSY, THROTTLE

main22210-22040i2ZZGE..ZZT231199908-200208

main22210-22070i1ZZFE..ZZT230199908-200208

22215GASKET, THROTTLE BODY COVER

main22215-7A680i1ZZFE,2ZZGE..ZZT23#199908-200208

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-22030i2ZZGE..ZZT231199908-200208

main22270-22031i2ZZGE..ZZT231200303

main22270-22040i1ZZFE..ZZT230200208-200303

main22270-22041i1ZZFE..ZZT230200303

22271GASKET, THROTTLE BODY

main22271-22040i1ZZFE..ZZT230199908-200208

main22271-88600i2ZZGE..ZZT231199908-200208

23250INJECTOR ASSY, FUEL

main23209-22040×4i1ZZFE..ZZT230199908-200208

main23209-22060-01×4i2ZZGE..ZZT231200208-200604

MARK WHITE

main23209-22060-02×4i2ZZGE..ZZT231199908-200208

NO.= 23250-22060,MARK BLUE

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i1ZZFE,2ZZGE..ZZT23#199908-200208

23271KINSULATOR(FOR FUEL HOSE)

main27747-22010i2ZZGE..ZZT231200007-200008

23291INSULATOR, INJECTOR VIBRATION

main23291-22020×4i1ZZFE..ZZT230200111-200208

main23291-41010×4i2ZZGE..ZZT231199908-200208

main23291-73010×4i1ZZFE..ZZT230199908-200111

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-22030i1ZZFE..ZZT230199908-200208

main23807-88600i2ZZGE..ZZT231200208-200604

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08055×2i1ZZFE..ZZT230200208-200604

main90561-08059×2i2ZZGE..ZZT231199908-200208

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21020i1ZZFE,2ZZGE..ZZT23#199908-200007

main23841-28010i2ZZGE..ZZT231200007-200008

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i1ZZFE..ZZT230199908-200208

23901TUBE SUB-ASSY, FUEL

main23901-22100i1ZZFE..ZZT230199908-200008

main23901-22101i1ZZFE..ZZT230200008-200208

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9007910011

main90079-10011

9007911021

main90079-11021

9007930005

main90079-30005

9011908B48

main90119-08B48

9012608015

main90126-08015

9151180614

main91511-80614

91511J0840

main91511-J0840

9415080801

main94150-80801

23 parts on this diagram · 3 diagrams in section
