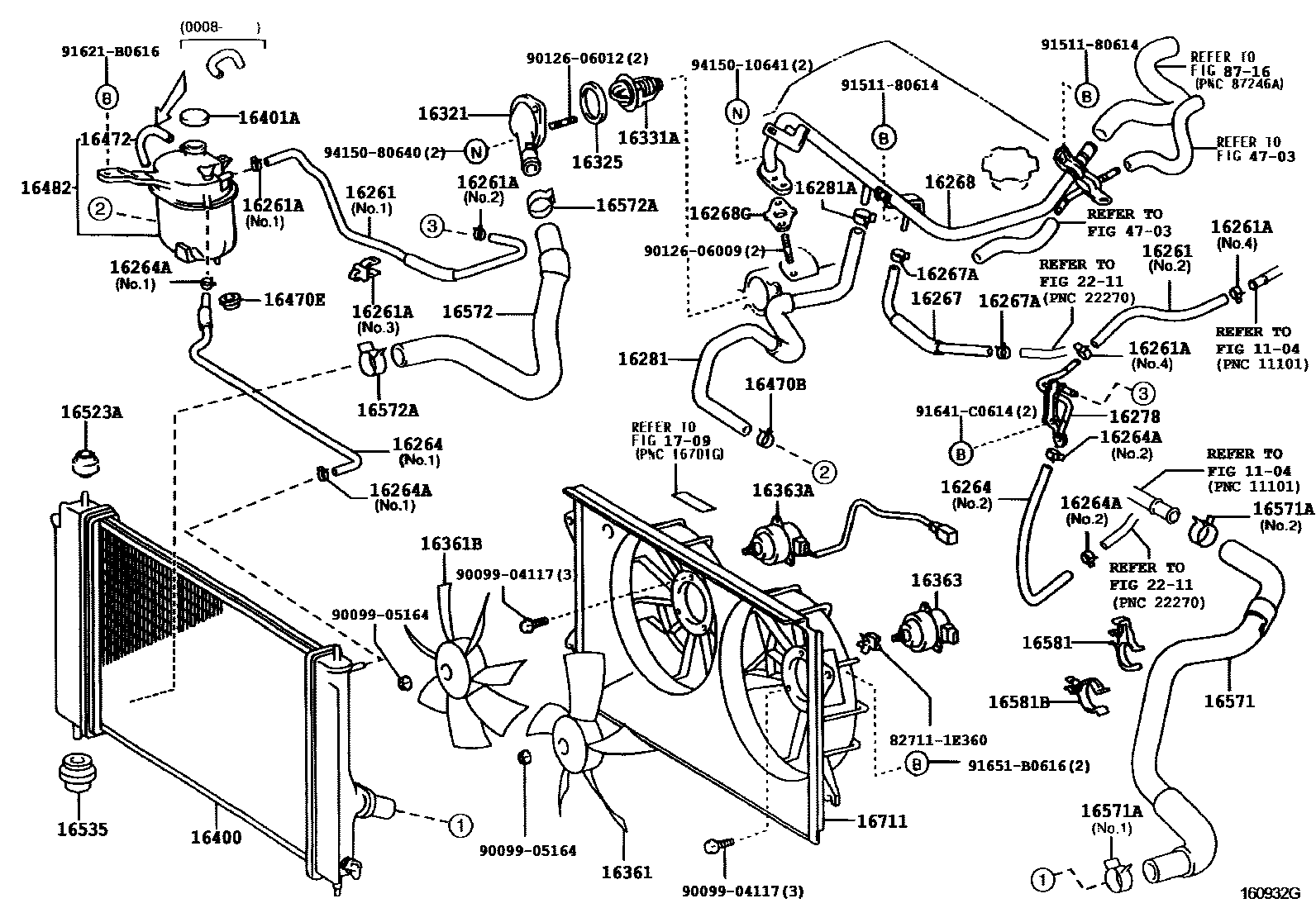

RADIATOR & WATER OUTLET
1104
16261HOSE, WATER BY-PASS
16267HOSE, WATER BY-PASS, NO.3
16268GGASKET(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16281HOSE, WATER BY-PASS, NO.4
16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
16401ACAP SUB-ASSY, RADIATOR RESERVE TANK
sub16475-51010
16470TANK ASSY, RADIATOR RESERVE
16470EGROMMET, RADIATOR RESERVE TANK HOSE
16472HOSE, BREATHER
16482TANK SUB-ASSY, RADIATOR RESERVE
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16581CLAMP, HOSE(FOR WATER HOSE)
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16711SHROUD, FAN
1709
2211
4703
8716
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009904117
main90099-04117
9009905164
main90099-05164
9012606009
main90126-06009
9012606012
main90126-06012
9151180614
main91511-80614
91621B0616
main91621-B0616
91641C0614
main91641-C0614
91651B0616
main91651-B0616
9415010641
main94150-10641
9415080640
main94150-80640
50 parts on this diagram · 6 diagrams in section
