VENTILATION HOSE

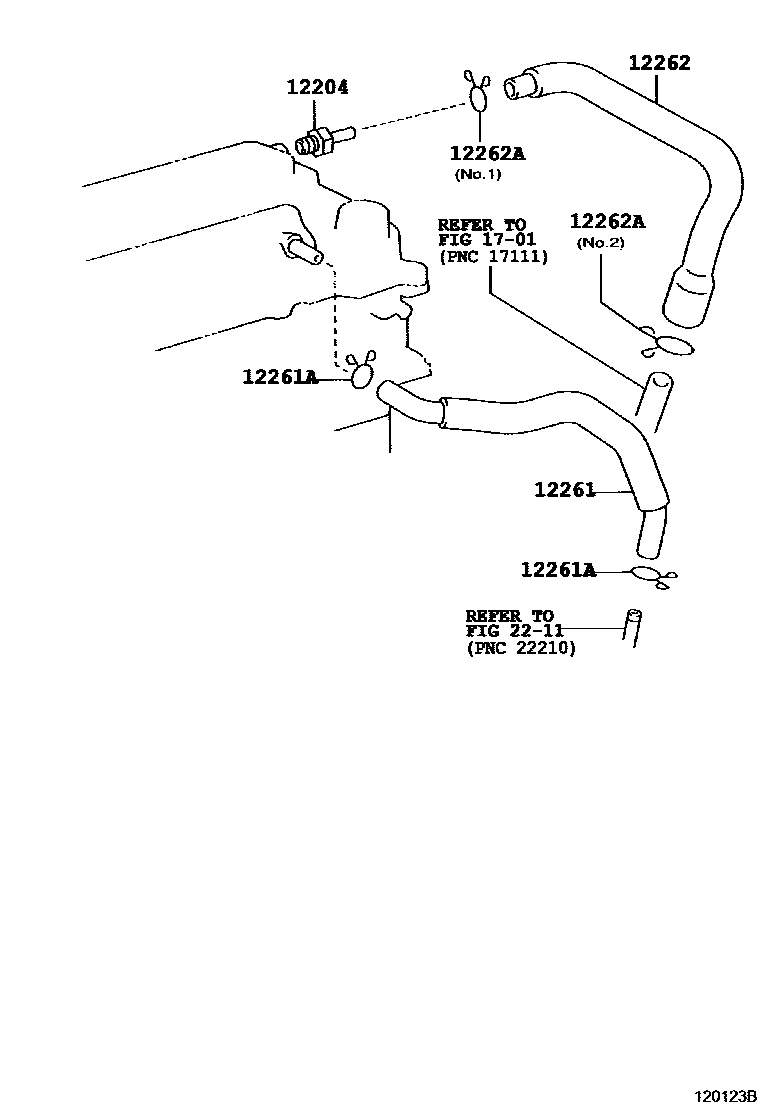

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-22050i199908-200405
sub12204-22051
main12204-22051i200405
main12204-88600i199908-200208
12261HOSE, VENTILATION
main12261-22040i199908-200208
main12261-88600i199908-200205
main12261-88602i200205-200208
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90466-24001i199908-200208
main90467-14037i199908-200208
main90467-21152i199908-200208
12262HOSE, VENTILATION, NO.2
main12262-0D050i200406
main12262-22040i200208
main12262-22040i199908-200208
main12262-88600i199908-200208
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90466-18002i200403
main90467-13103i199908-200208
main90467-19003i199908-200403
main90467-19012i199908-200204
sub90467-19019
main90467-19019i200204-200208
main90467-21010i200208
main90467-22003i199908-200208
sub90467-21010
1701
2211

7 parts on this diagram · 2 diagrams in section
