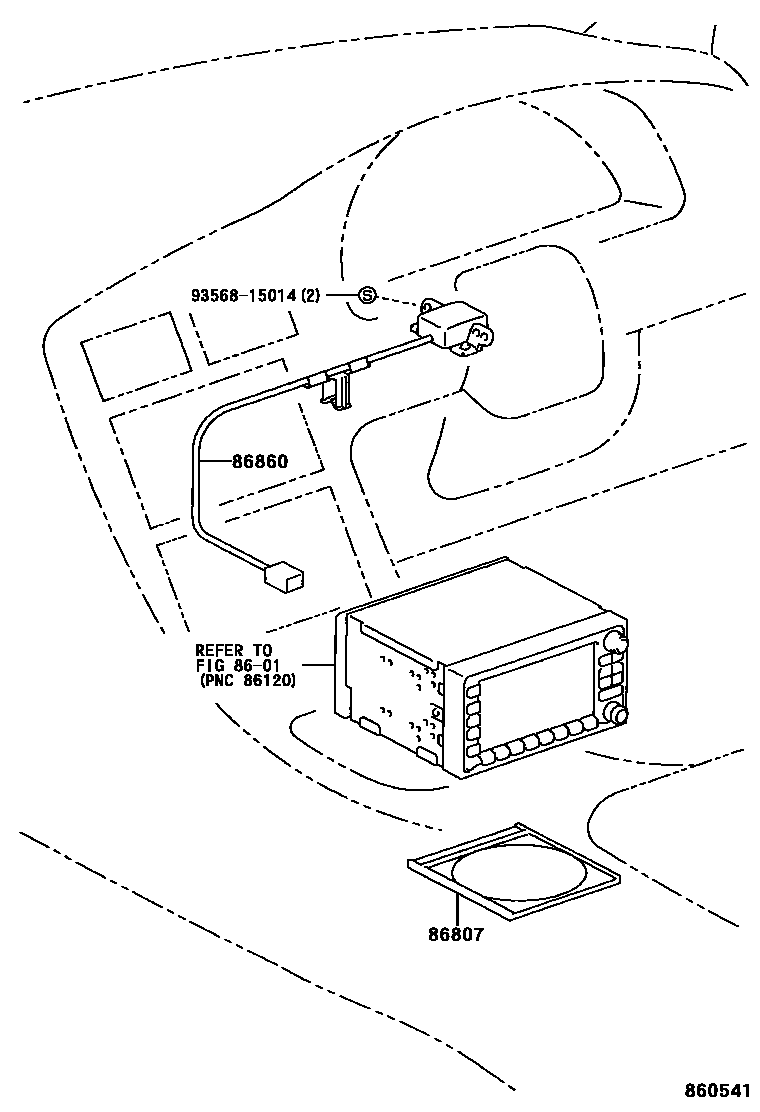

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86807DISC KIT, CD-ROM

main86807-44011iST20#..LB199712

86860ANTENNA ASSY, NAVIGATION

main86860-20010iST20#..LB199712

9356815014

main93568-15014

4 parts on this diagram · 1 diagram in section
