WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE WIRE 0003 1ENGINE WIRE 0004 1COWL,INSTRUMENT WIRE 0005 1DOOR,ROOF WIRE 0006 1FLOOR,LUGGAGE WIRE 0007 1CABLE BOND 0008 1CLAMP & PROTECTOR 0009 1CLAMP & PROTECTOR 0010 1CLAMP & PROTECTOR 0011 1CONNECTOR

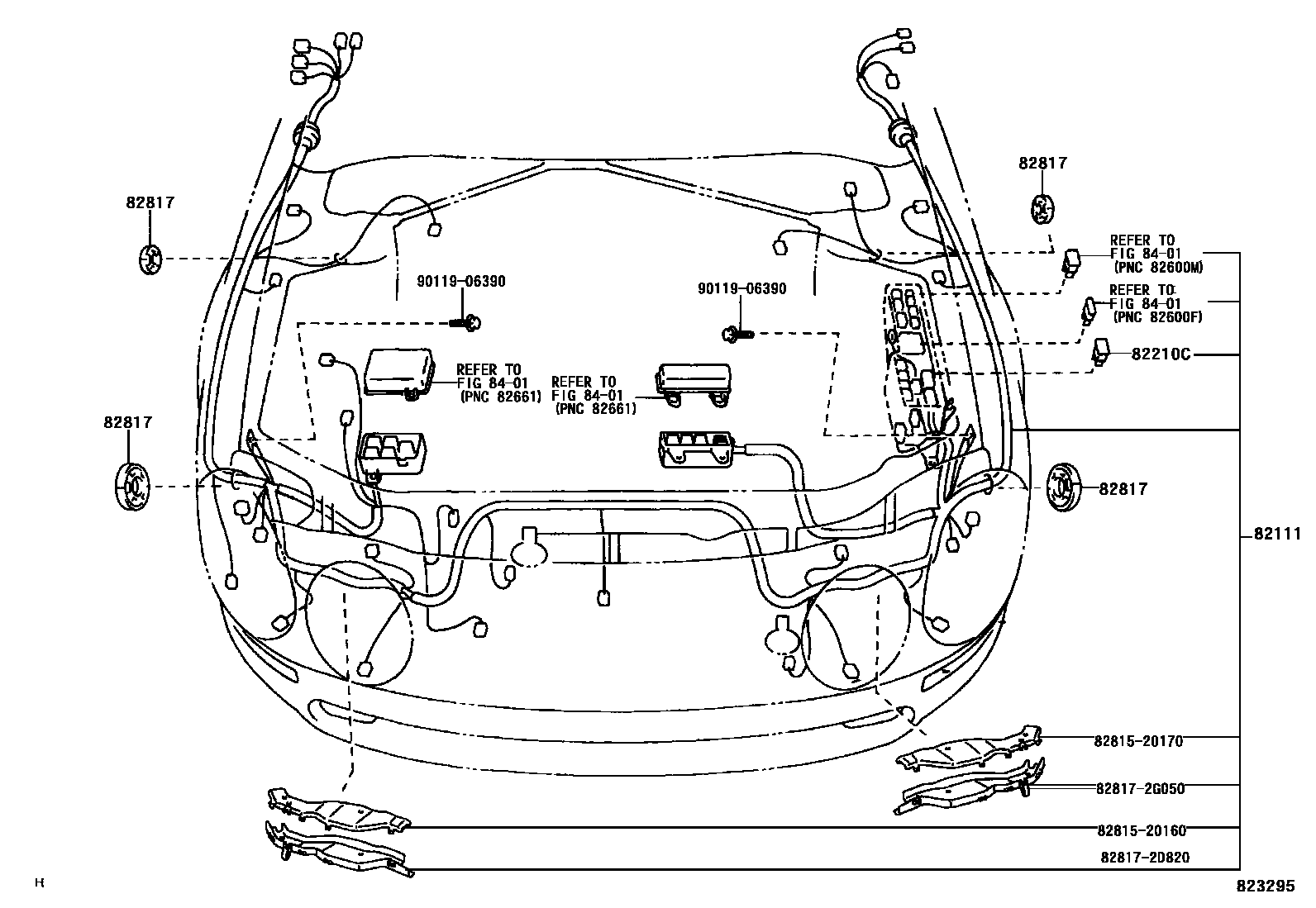

82111WIRE, ENGINE ROOM MAIN

main82111-2G700iST202199309-199508

main82111-2G710iST202..CV199508-199512

main82111-2G720iST203199309-199508

main82111-2G730iST203199309-199508

main82111-2G740iST205199402-199508

main82111-2G750iST205199402-199508

main82111-2H710iST202199512-199606

main82111-2H711iST202..CV199606-199712

main82111-2H720iST202..LB199508-199512

main82111-2H721iST202199606-199712

main82111-2H722iST202199712

main82111-2H730iST203199508-199606

main82111-2H740iST203199508-199606

main82111-2H741iST203199606-199712

main82111-2H750iST205199508-199606

main82111-2H760iST205199508-199606

main82111-2H761iST205199606-199712

main82111-2H762iST205199712

82210CFUSIBLE LINK

main90982-08189×3iST20#199309

main90982-08190iST20#199309

main90982-08227iST20#199309

main90982-08246iST20#199309

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2B730×2iST20#199309-199712

main82817-2D840×2iST20#..LB199712

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8281520160COVER, WIRING HARNESS PROTECTOR

main82815-20160

8281520170COVER, WIRING HARNESS PROTECTOR

main82815-20170

828172D820PROTECTOR, WIRING HARNESS, NO.1

main82817-2D820

828172G050PROTECTOR, WIRING HARNESS, NO.1

main82817-2G050

9011906390

main90119-06390

9 parts on this diagram · 11 diagrams in section
