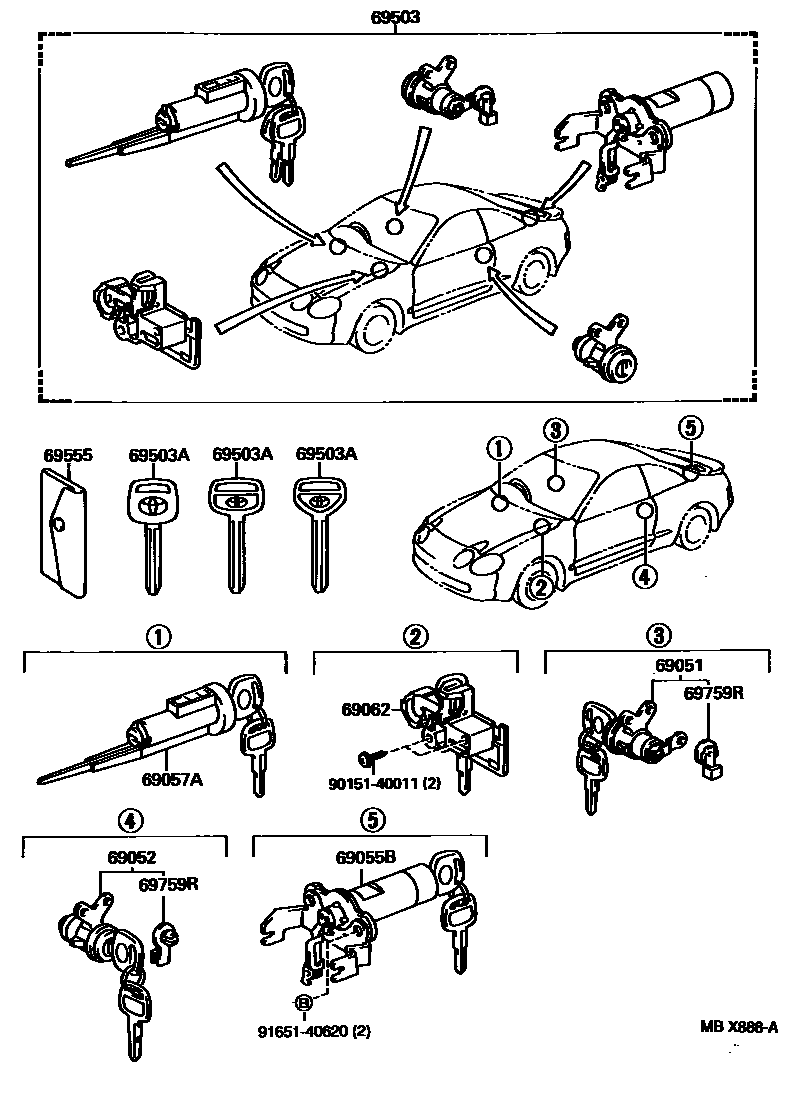

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20350iST20#199309

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20350iST20#199309

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-20570iST20#..LB199309-199712

main69055-20700iST20#..LB199712

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20340iST20#199309

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20250iST20#199309

69503CYLINDER SET, LOCK

main69005-2B320iST20#..LB199309-199712

main69005-2B370iST202..CV199408

main69005-2B590iST20#..LB199712

69503AKEY, BLANK

main90999-00185iST20#199309

main90999-00186iST20#199309

main90999-00188iST20#199309

69555COVER, KEY

main69555-17020iST20#199309-199508

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080iST20#199309

main69759-22090iST20#199309

9015140011

main90151-40011

9165140620

main91651-40620

11 parts on this diagram · 2 diagrams in section
