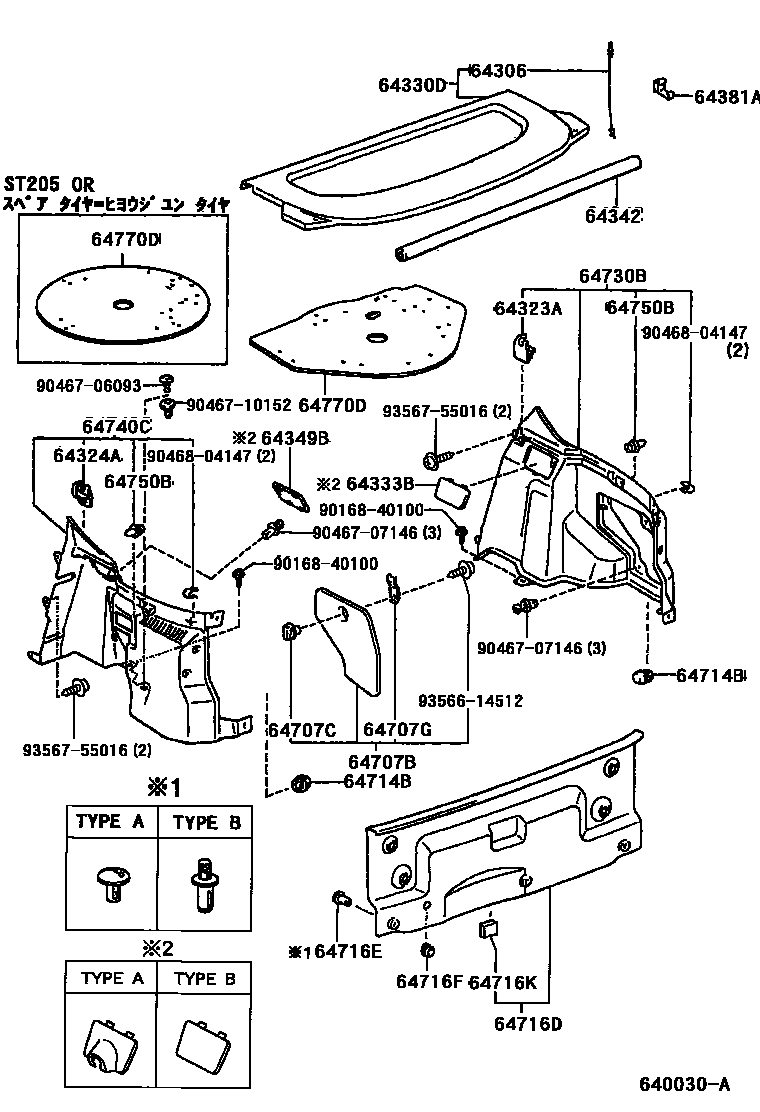

DECK BOARD & DECK TRIM COVER
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64323ACLAMP, PACKAGE TRAY TRIM, RH
BLACK,TRIM2#
64324ACLAMP, PACKAGE TRAY TRIM, LH
BLACK,TRIM2#
64330DPANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM2#
64333BCOVER, PACKAGE TRAY TRIM SIDE, RH
64342COVER, PACKAGE TRAY TRIM, UNDER
BLACK,TRIM2#
64349BCOVER, PACKAGE TRAY TRIM SIDE, LH
64381AHANGER, PACKAGE TRAY TRIM
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
BLACK,TRIM2#
BLACK,TRIM2#
64707CKNOB, JACK COVER
BLACK,TRIM2#
64707GSTOPPER, JACK COVER
64714BPLUG, HOLE(FOR DECK TRIM SIDE COVER)
64716DCOVER, DECK TRIM, REAR
BLACK,TRIM2#
BLACK,TRIM2#
64716ECLIP(FOR DECK TRIM REAR COVER)
64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)
64716KPAD, DECK TRIM COVER
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
64750BRETAINER(FOR DECK SIDE TRIM PANEL)
64770DCOVER ASSY, SPARE WHEEL
9016840100
main90168-40100
9046706093
main90467-06093
9046707146
main90467-07146
9046710152
main90467-10152
9046804147
main90468-04147
9356614512
main93566-14512
9356755016
main93567-55016
27 parts on this diagram · 1 diagram in section
