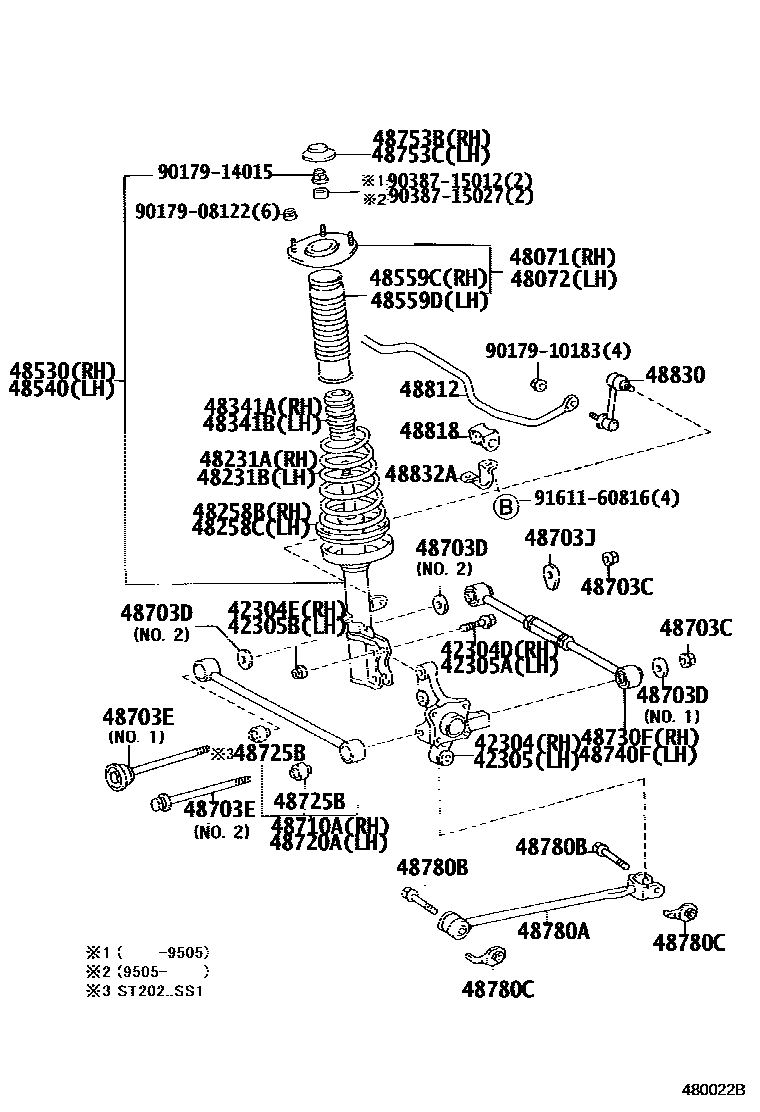

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304DBOLT (FOR REAR AXLE CARRIER RH)
42304ENUT (FOR REAR AXLE CARRIER RH)
42305CARRIER SUB-ASSY, REAR AXLE, LH
42305ABOLT (FOR REAR AXLE CARRIER LH)
42305BNUT (FOR REAR AXLE CARRIER LH)
48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH
48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-2B370 OR 48530-2B380
MARK 48530-2B390 OR 48530-2B400
MARK 48530-2B410 OR 48530-2B420
MARK 48530-2B440
MARK 48530-2B391 OR 48530-2B401
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-2B370 OR 48540-2B380
MARK 48540-2B390 OR 48540-2B400
MARK 48540-2B440
MARK 48540-2B391 OR 48540-2B401
48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1
48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1
48703DWASHER(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48725BBUSH, REAR SUSPENSION ARM, NO.1
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
ID=17
48830LINK ASSY, REAR STABILIZER
48832ABRACKET, REAR STABILIZER BAR, NO.1
9017908122
main90179-08122
9017910183
main90179-10183
9017914015
main90179-14015
9038715012
main90387-15012
9038715027
main90387-15027
9161160816
main91611-60816
42 parts on this diagram · 3 diagrams in section
