STEERING WHEEL

0001 13-SPOKE 0003 1��(�����*80,������) 0005 1��(������*80,������&�������) 0007 125��������������� 0008 13-SPOKE

45100WHEEL ASSY, STEERING

main45100-12891-C1iST20#..CV,GT4,SS2,SS3199712

main45100-14640-C0iST202..SS1199712

main45100-2B260-C0iST202,205..GT4,SS2,SS3199508-199606

main45100-2B290-C0iST202..CV199508-199606

main45100-2B300-C0iST203..ATM199309-199508

main45100-2B310-C0iST202,205..GT4,SS2,SS3199309-199606

main45100-2B340-C0iST202..SS1;ST203..MTM199309-199508

main45100-2B350-C0iST203..ATM199309-199508

main45100-2B360-C0iST202,205..CV,GT4,SS2199309-199508

main45100-2B460-C0iST202,203..SS1199508-199612

main45100-2B480-C0iST202,205..GT4,SS2,SS3199508-199612

main45100-2B520-C0iST202,203..SS1199508-199512

main45100-2B590-C0iST202,203..SS1199612-199712

main45100-2B610-C0iST202,205..CV,GT4,SS2,SS3199612-199712

main45100-2B660-C0iST202..CV199608-199712

main45102-12620iST202..SS3199508-199511

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-20500iST202,205;ST203..MTM199309-199508

main45105-20510iST203..ATM199309-199508

45105ACUSHION(FOR HORN BUTTON CONTACT PLATE)

main90540-08014×3iST20#199309-199508

45130BUTTON ASSY, HORN

main45130-14360-C0iST20#199712

BLACK,TRIM2#

main45130-2B230-C0iST20#..LB199508-199512

main45130-2B270-C0iST202,205..CV,GT4,SS2,SS3199508-199606

main45130-2B280-C0iST203..ATM199309-199508

main45130-2B290-C0iST202..CV199508-199512

main45130-2B400-C0iST202..CV199607-199712

BLACK,TRIM2#

main45130-42020-C0iST202..CV199606-199607

main45140-12010iST202..SS3199508-199511

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-22040×3iST20#199309-199508

45184COVER, STEERING WHEEL BOSS, LOWER

main45180-20270-C0iST202,205;ST203..MTM199309-199405

BLACK,TRIM2#

main45184-20510-C0iST203..ATM199309-199508

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071iST20#199309

9015950238

main90159-50238

9016840103

main90168-40103

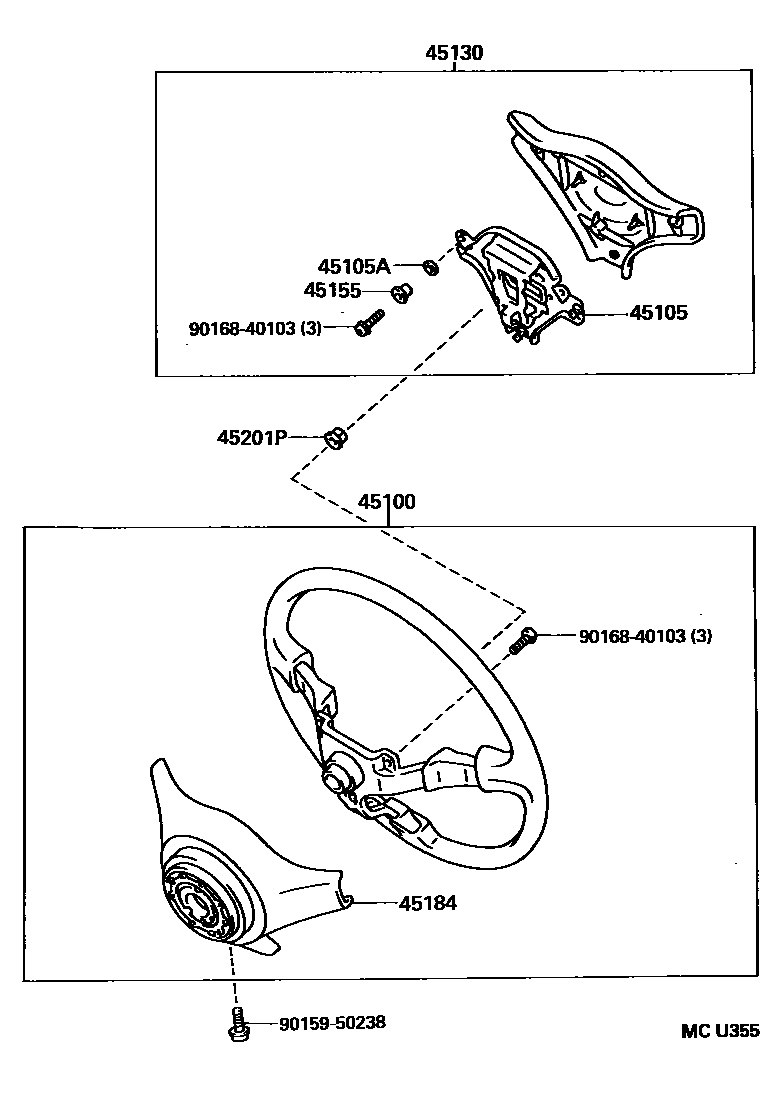

9 parts on this diagram · 5 diagrams in section
