DISC WHEEL & WHEEL CAP

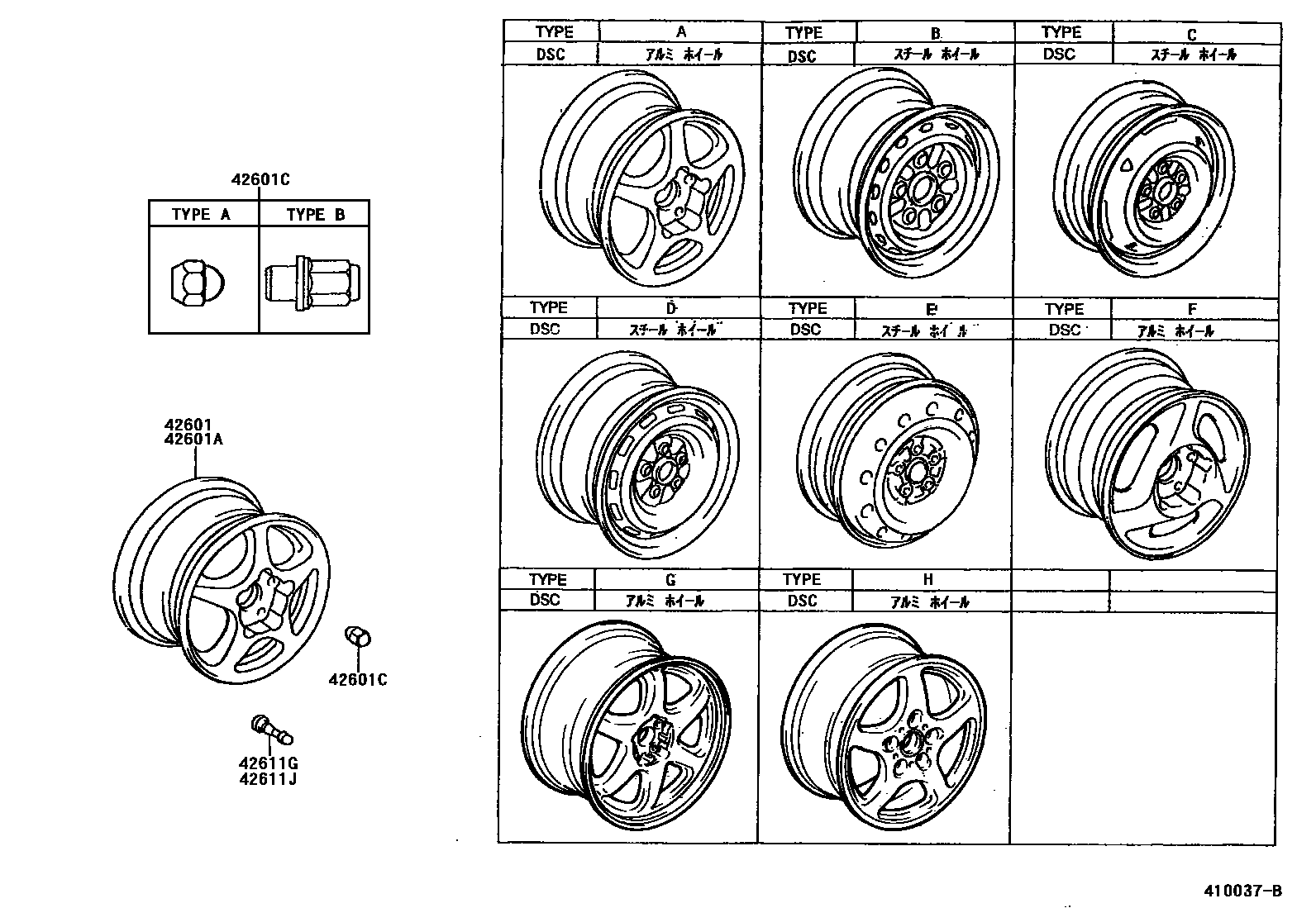

Parts diagram

42601WHEEL, DISC

main42611-20880-01×4i199309

main42611-2B060×4i199309-199512

main42611-2B090×4i199402-199508

main42611-2B110×4i199309-199712

main42611-2B130×4i199512-199712

main42611-2B140×4i199508-199712

main42611-2B200×4i199712

main42611-2B210×4i199704-199712

main42611-2B220×4i199712

42601AWHEEL, DISC (FOR SPARE)

main42611-20840i199309

main42611-20880-01i199309

main42611-2B060i199309-199512

main42611-2B070i199402

main42611-2B090i199402-199508

main42611-2B110i199309-199512

main42611-2B130i199508-199712

main42611-2B140i199508-199712

main42611-2B200i199712

main42611-2B210i199704-199712

main42611-2B220i199712

42601CNUT, HUB (FOR AXLE)

main90942-01021×20i199712

main90942-01058×20i199309-199508

main90942-01062×20i199402-199508

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001×4i199704

main90942-05009×4i199309

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001i199704

main90942-05009i199309

5 parts on this diagram · 3 diagrams in section
