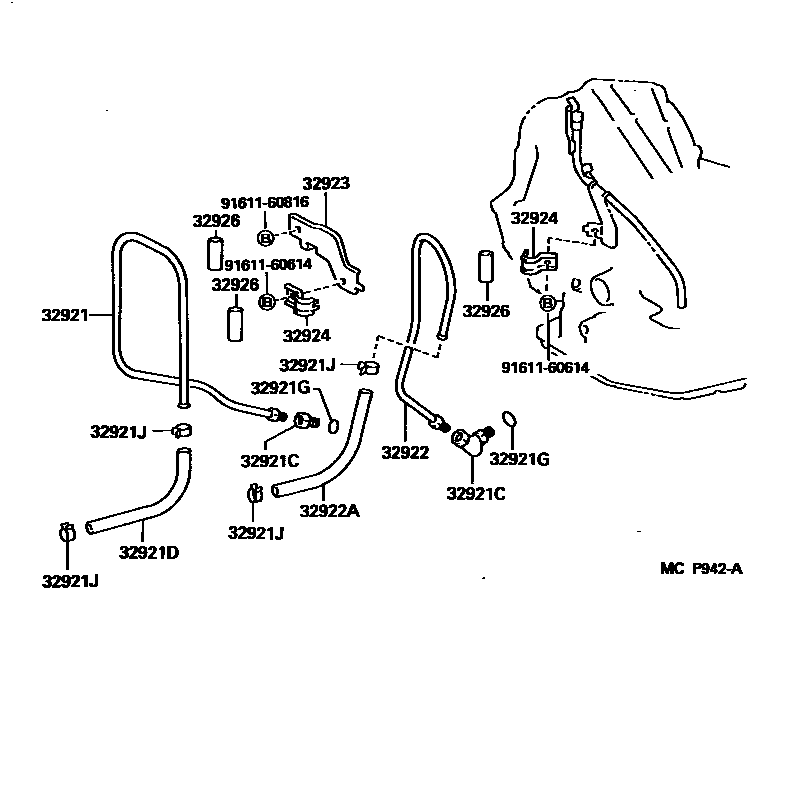

OIL COOLER & TUBE (ATM)

0001 1A140E 0003 1A241E

32921TUBE, OIL COOLER INLET, NO.1

main32921-20380iST202,203..ATM199309-199712

main32921-20460iST202..ATM..(CV,SS2,SS3)199712

32921CUNION(FOR OIL COOLER TUBE)

main32901-32060iST202..ATM..SS1199712

main90404-16031iST202..ATM..SS1199712

32921DHOSE(FOR OIL COOLER INLET)

main90445-17088iST202..ATM..(CV,SS2,SS3)199712

main90445-17106iST202,203..ATM199309-199712

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iST202,203..ATM199309-199903

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013×4iST202..ATM..(CV,SS2,SS3); ST202..ATM..SS1199712

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-20400iST202..ATM..SS1199712

main32922-20480iST202..ATM..(CV,SS2,SS3)199712

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17104iST202..ATM..(CV,SS2,SS3)199712

main90445-17106iST202,203..ATM199309-199712

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-20111iST202..ATM..SS1199712

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-20080×2iST202,203..ATM199309-199712

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-20010×3iST202,203..ATM199309-199712

main32926-30020×2iST202..ATM..(CV,SS2,SS3)199712

9161160614

main91611-60614

9161160816

main91611-60816

12 parts on this diagram · 2 diagrams in section
