ENGINE OVERHAUL GASKET KIT

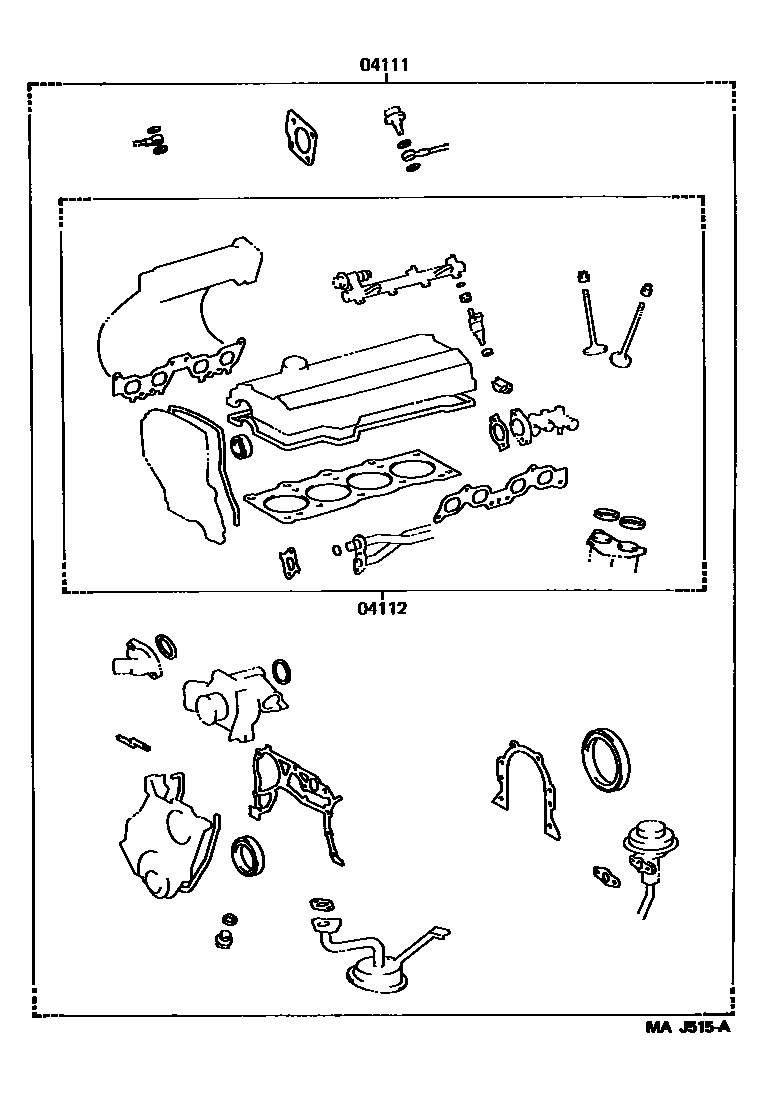

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-74490i199309-199508
main04111-74520i199309-199702
sub04111-74521
main04111-74521i199702-199712
main04111-74540i199402-199702
sub04111-74541
main04111-74541i199702
main04111-74590i199508-199601
main04111-74591i199601-199612
sub04111-74592
main04111-74592i199612
main04111-74710i199712
04112GASKET KIT, ENGINE VALVE GRIND
main04112-74490i199309-199508
main04112-74510i199309-199606
sub04112-74511
main04112-74512i199606-199702
sub04112-74513
main04112-74513i199702-199712
main04112-74520i199402-199702
sub04112-74521
main04112-74521i199702
main04112-74560i199508-199601
main04112-74561i199601-199612
sub04112-74562
main04112-74562i199612
main04112-74710i199712

2 parts on this diagram · 5 diagrams in section
