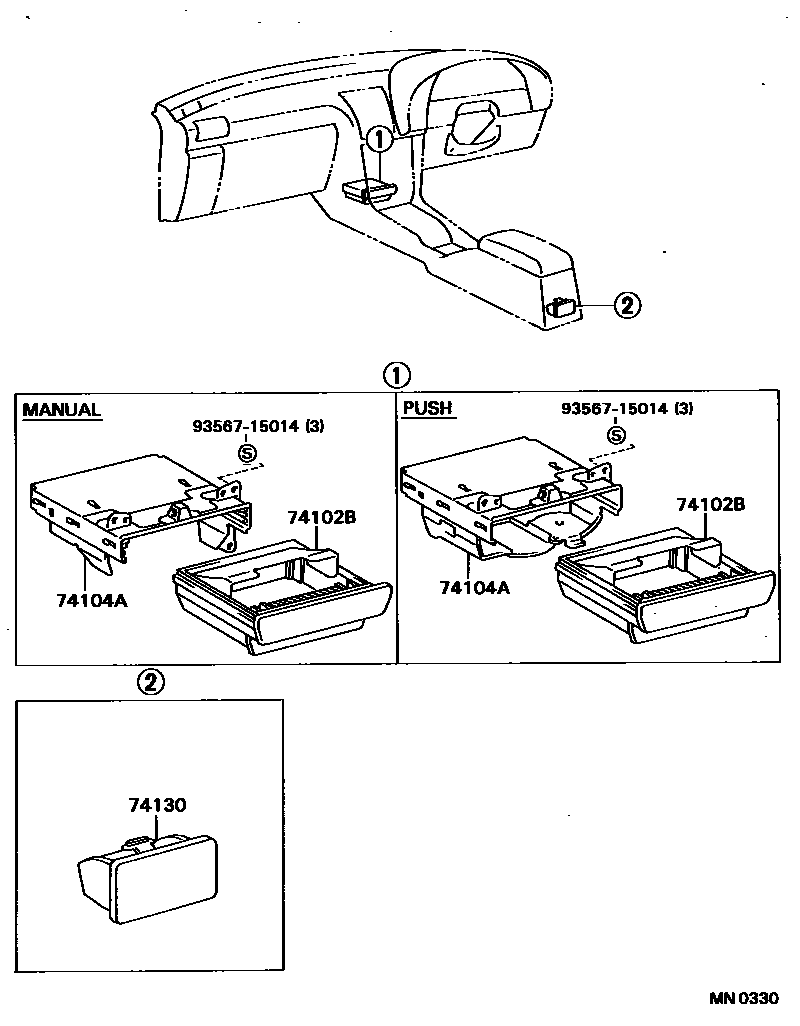

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-20200iST182,183..SR198909-199008

main74102-20210iST18#..ACT,GT4,GTR,ZR198909-199008

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-20240iST182,183..SR198909-199008

main74104-20250iST18#..ACT,GT4,GTR,ZR198909-199008

74130RECEPTACLE ASSY, REAR ASH

main74109-20080-03iST18#198909-199309

GRAY,TRIM1#

main74109-20080-04iST182,183..GTR,SR,ZR198909-199108

BLUE,TRIM8#

9356715014

main93567-15014

4 parts on this diagram · 1 diagram in section
