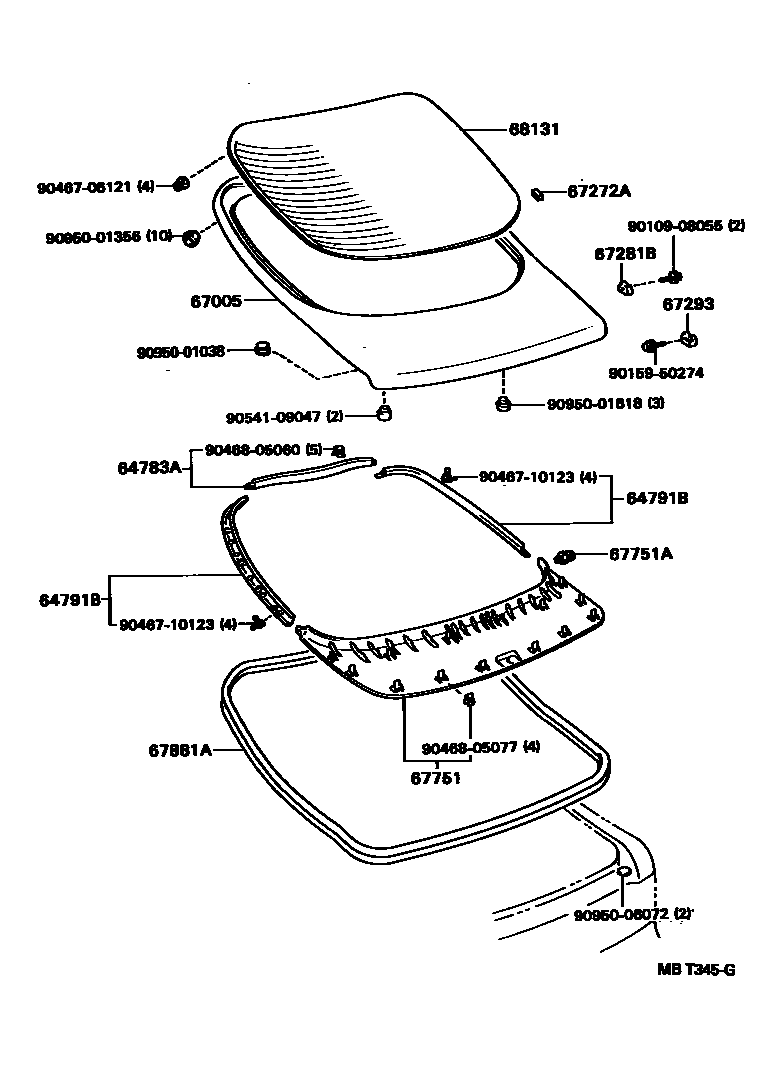

BACK DOOR PANEL & GLASS

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-20050-03iST18#..LB198909-199309

SHADOW GRAY,TRIM1#

main64783-20050-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

64791BCOVER, BACK DOOR TRIM

main64791-20060-03iST18#..LB198909-199309

main64791-20060-04iST182,183..GTR,SR,ZR198909-199108

main64792-20030-03iST18#..LB198909-199309

main64792-20030-04iST182,183..GTR,SR,ZR198909-199108

67005PANEL SUB-ASSY, BACK DOOR

main67005-2B190iST185..GT4198910-199108

GT-FOUR RALLY

main67005-2B210iST18#..LB198909-199108

main67005-2B370iST18#..LB199108-199309

67272ACUSHION, BACK DOOR STOPPER, NO.2

main67272-20010×5iST18#..LB198909-199309

67281BSTOPPER, BACK DOOR, LOWER

main67281-20030×2iST18#..LB198909-199309

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-20020×2iST18#..LB198909-199309

67751BOARD, BACK DOOR TRIM

main64781-20080-03iST18#..LB198909-199309

SHADOW GRAY,TRIM1#

main64781-20080-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-05014-01×2iST182,183..GTR,SR,ZR; ST183,185..ACT,GT4,GT4A198909-199108

BLACK,TRIM1#; BLACK,TRIM1#,8#

67881AWEATHERSTRIP, BACK DOOR

main67881-20100iST18#..LB198909-199309

68131GLASS, BACK DOOR

main68131-20420iST18#..LB198909-199303

main68131-20421iST18#..LB199303-199309

9010908055

main90109-08055

9015950274

main90159-50274

9046706121

main90467-06121

9046710123

main90467-10123

9046805060

main90468-05060

9046805077

main90468-05077

9054109047

main90541-09047

9095001038

main90950-01038

9095001356

main90950-01356

9095001618

main90950-01618

9095006072

main90950-06072

21 parts on this diagram · 1 diagram in section
