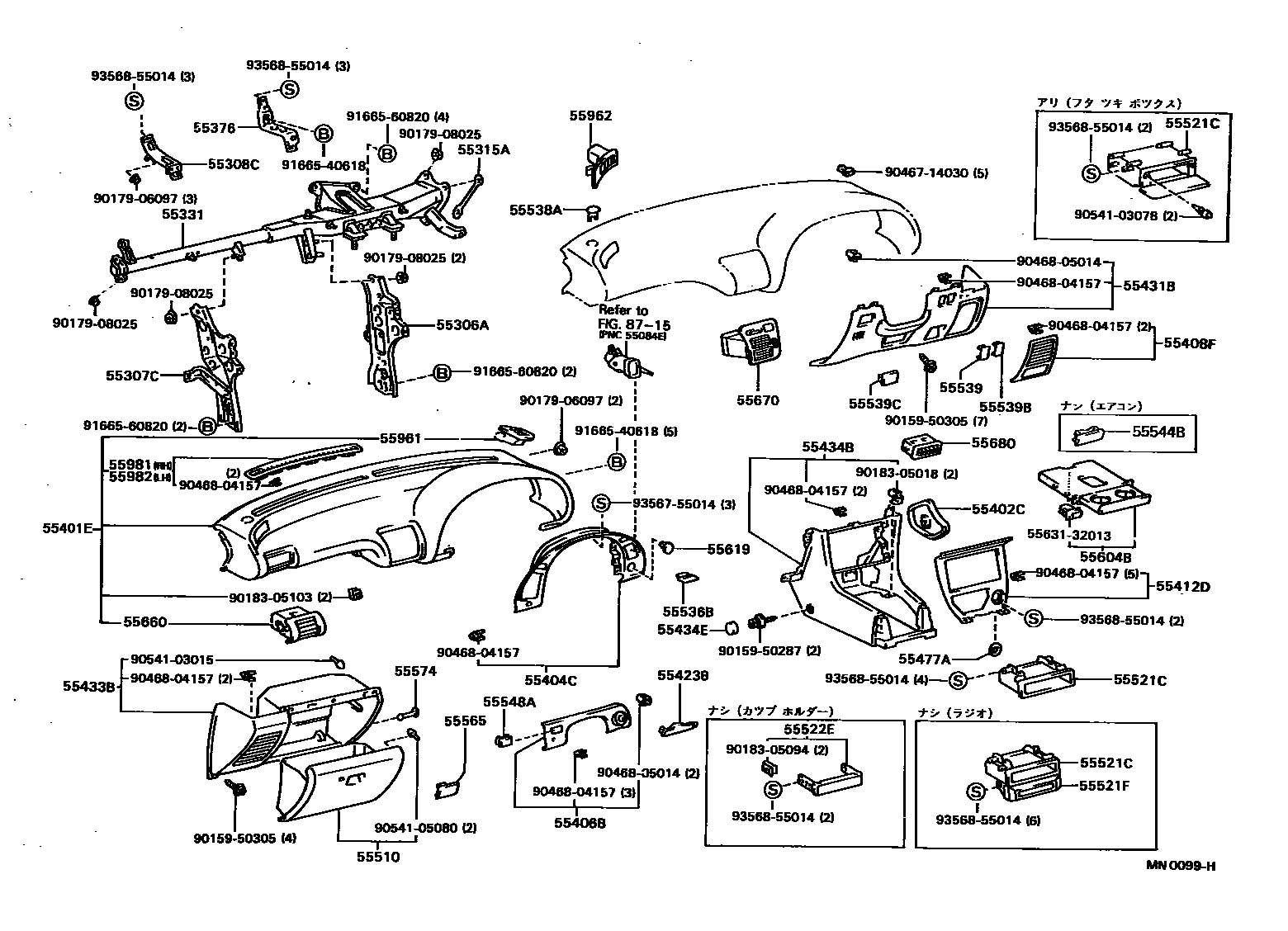

INSTRUMENT PANEL & GLOVE COMPARTMENT

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20170iST18#198909-199309

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-20160iST18#198909-199309

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20160iST18#198909-199309

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-20040iST18#198909-199309

main55315-20050iST18#198909-199309

main55315-20060iST18#198909-199309

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20120iST18#198909-199009

main55330-20121iST18#199009-199309

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-20070iST18#198909-199309

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20570-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55401-20570-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-20130-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55402-20130-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-20270iST18#198909-199309

55406BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER

main55406-20040iST18#198909-199309

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-20130-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55472-20130-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-20390iST18#198909-199309

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-20150iST18#198909-199309

55431BPANEL, INSTRUMENT PANEL FINISH, UPPER

main55432-20190-03iST18#198909-199107

SHADOW GRAY,TRIM1#

main55432-20190-04iST182,183..GTR,SR,ZR198909-199107

DARK BLUE,TRIM8#

main55432-20191-B0iST18#199108-199309

SHADOW GRAY,TRIM1#

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-20110-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55433-20110-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20140-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55434-20140-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55434ECAP

main90339-10009-03×2iST18#198909-199309

SHADOW GRAY,TRIM1#

main90339-10009-04×2iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-20090iST18#198909-199309

55521CCOVER, STEREO OPENING

main55521-16030iST183..CV199012-199109

main55521-32011iST182,183..ZR199108-199309

55521FCOVER, STEREO OPENING, NO.2

main55521-20130iST18#..GT4RC,GTR,SR,ZR199012-199309

55522ECOVER, CUP HOLDER OPENING

main55522-16030iST185..GT4199108-199309

GT-FOUR RALLY

55536BCOVER, LIGHT CONTROL SWITCH HOLE

main55536-20030iST185..GT4RC199109-199202

55538ACOVER, COOLER SWITCH HOLE

main55538-20060-03iST18#..CV,GT4,GT4A,GTR,SR,ZR198909-199108

SHADOW GRAY,TRIM1#

main55538-20060-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55539COVER, SPARE SWITCH HOLE

main55539-20080-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55539-20080-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-20080-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55539-20080-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55539CCOVER, SPARE SWITCH HOLE

main55546-20020-03iST182,185198909-199309

SHADOW GRAY,TRIM1#

main55546-20020-04iST182198909-199108

DARK BLUE,TRIM8#

55544BCOVER, INSTRUMENT PANEL LOWER REGISTER HOLE

main55544-22030-03iST18#..CV,GT4,GT4A,GTR,SR,ZR199107-199108

SHADOW GRAY,TRIM1#

main55544-22030-14iST182,183..GTR,SR,ZR199107-199108

DARK BLUE,TRIM8#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-20080iST18#..MTM198909-199309

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20070-03iST18#199109-199309

SHADOW GRAY,TRIM1#

main55565-20070-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iST18#198909-199309

55604BHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-20040iST18#..ACT,GT4,GTR,ZR198909-199008

55619COVER, SWITCH HOLE

main55534-20050iST18#198909-199309

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20170-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55660-20170-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20130-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55670-20130-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-13iST18#198909-199309

SHADOW GRAY,TRIM1#

main55680-14030-J0iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20180-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55961-20180-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-20180-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55962-20180-04iST182,183..GTR,SR,ZR198909-199108

DARK BLUE,TRIM8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-20100-03iST18#198909-198912

SHADOW GRAY,TRIM1#

main55981-20100-04iST182,183198909-198912

DARK BLUE,TRIM8#

main55981-20101-03iST18#198912-199309

SHADOW GRAY,TRIM1#

main55981-20101-04iST182,183..GTR,SR,ZR198912-199108

DARK BLUE,TRIM8#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-20100-03iST18#198909-198912

SHADOW GRAY,TRIM1#

main55982-20100-04iST182,183198909-198912

DARK BLUE,TRIM8#

main55982-20101-03iST18#198912-199309

SHADOW GRAY,TRIM1#

main55982-20101-04iST182,183..GTR,SR,ZR198912-199108

DARK BLUE,TRIM8#

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

5563132013ARM,UNDER TRAY DOOR CHECK

main55631-32013

9015950287

main90159-50287

9015950305

main90159-50305

9017906097

main90179-06097

9017908025

main90179-08025

9018305018

main90183-05018

9018305094

main90183-05094

9018305103

main90183-05103

9046714030

main90467-14030

9046804157

main90468-04157

9046805014

main90468-05014

9054103015

main90541-03015

9054103078

main90541-03078

9054105080

main90541-05080

9166540618

main91665-40618

9166560820

main91665-60820

9356755014

main93567-55014

9356855014

main93568-55014

58 parts on this diagram · 1 diagram in section
