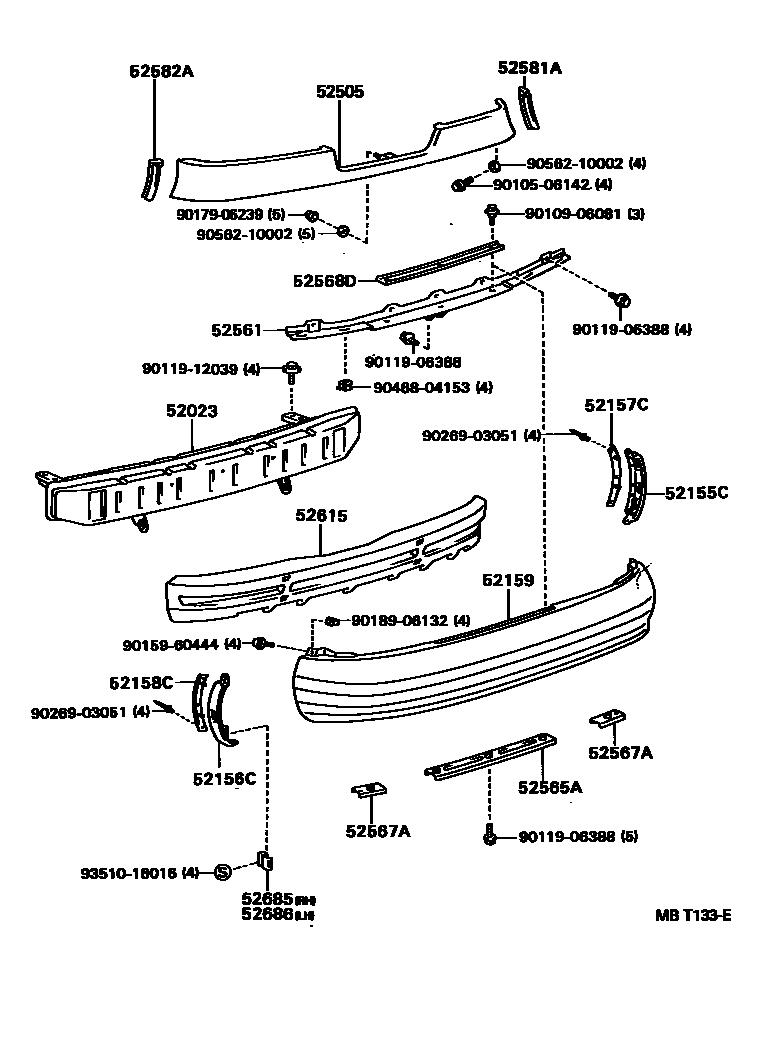

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-20270iST182,183..LB198909-199309

main52023-20290iST183..CV199009-199309

main52023-20300iST185..GT4,GT4A198910-199309

main52023-20320iST185..GT4RC199108-199202

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-20220iST18#..LB..NOB198909-199309

main52155-20230iST183..CV199009-199309

main52155-20240iST185..WIB199008-199309

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-20150iST18#..LB..NOB198909-199309

main52156-20160iST183..CV199009-199309

main52156-20170iST185..WIB199008-199309

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-20090iST18#..LB..NOB198909-199309

main52157-20100iST183..CV199009-199309

main52157-20110iST185..WIB199008-199309

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-20060iST18#..LB..NOB198909-199309

main52158-20070iST183..CV199009-199309

main52158-20080iST185..WIB199008-199309

52159COVER, REAR BUMPER

main52159-20590-02iST18#..LB..NOB198909-199108

RED MICA,3H4

main52159-20590-03iST18#..LB..NOB198909-199309

BLUISH GRAY M,182

main52159-20590-04iST182,183198909-199008

LIGHT BLUE M,8G6

main52159-20590-07iST18#..LB..NOB198909-199108

BLACKISH KHAKI M,6K8

main52159-20590-08iST18#..LB..NOB198909-199309

SUPER WHITE 2,040

main52159-20590-12iST18#..LB..NOB198909-199309

SUPER RED 2,3E5

main52159-20590-14iST182,183..LB199008-199108

BLUE MICA M,8G7

main52159-20590-17iST183..GTR199012-199103

THE 20TH ANNIVERSARY,DARK TURQUOISE MICA,742

main52159-20590-C0iST182,183..LB199108-199309

BLACK,202

main52159-20590-F0iST182,183..LB199108-199202

GREENISH YELLOW M.M.,569

main52159-20590-H0iST182,183..LB199108-199309

MEDIUM TURQUOISE M.,749

main52159-20600-01iST183..CV199009-199309

BLACK,202

main52159-20600-02iST183..CV199009-199309

SUPER RED 2,3E5

main52159-20600-08iST183..CV199009-199309

SUPER WHITE 2,040

main52159-20600-J0iST183..ATM..CV199208-199309

main52159-20610-02iST185..GT4A199008-199108

RED MICA,3H4

main52159-20610-03iST185..WIB199008-199309

BLUISH GRAY M,182

main52159-20610-07iST185..GT4A199008-199108

BLACKISH KHAKI M,6K8

main52159-20610-08iST185..WIB199008-199309

SIPER WHITE 2,040

main52159-20610-12iST185..WIB199008-199309

SUPER RED 2,3E5

main52159-20610-C0iST185199108-199309

BLACK,202

main52159-20610-F0iST185..GT4199108-199202

GREENISH YELLOW M.M.,569

main52159-20610-H0iST185..GT4199108-199309

MEDIUM TURQUOISE M.,749

52505FILLER SUB-ASSY, REAR BUMPER

main52505-20020iST18#..LB198909-199309

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-20150iST18#..LB198909-199309

main52561-20160iST183..CV199009-199309

52565ARETAINER, REAR BUMPER, LOWER

main52565-20140iST18#198909-199309

52567ARETAINER, REAR BUMPER, LOWER SIDE

main52567-20030×2iST18#198909-199309

52568DRETAINER, REAR BUMPER, UPPER NO.2

main52568-20020iST18#198909-199309

52581APROTECTOR, REAR BUMPER FILLER

main52581-20020×2iST183..CV199009-199309

main52581-20030iST18#..LB198909-199309

52582APROTECTOR, REAR BUMPER FILLER, LH

main52581-20030iST18#..LB198909-199309

52615ABSORBER, REAR BUMPER ENERGY

main52615-20130iST18#..LB..NOB198909-199309

main52615-20140iST183..CV199009-199309

main52615-20150iST185..WIB199008-199309

52685SUPPORT, REAR BUMPER SIDE, NO.3 RH

main52685-20010×2iST18#198909-199309

52686SUPPORT, REAR BUMPER SIDE, NO.3 LH

main52685-20010×2iST18#198909-199309

9010506142

main90105-06142

9010906081

main90109-06081

9011906388

main90119-06388

9011912039

main90119-12039

9015960444

main90159-60444

9017906239

main90179-06239

9018906132

main90189-06132

9026903051

main90269-03051

9046804153

main90468-04153

9056210002

main90562-10002

9351016016

main93510-16016

27 parts on this diagram · 2 diagrams in section
