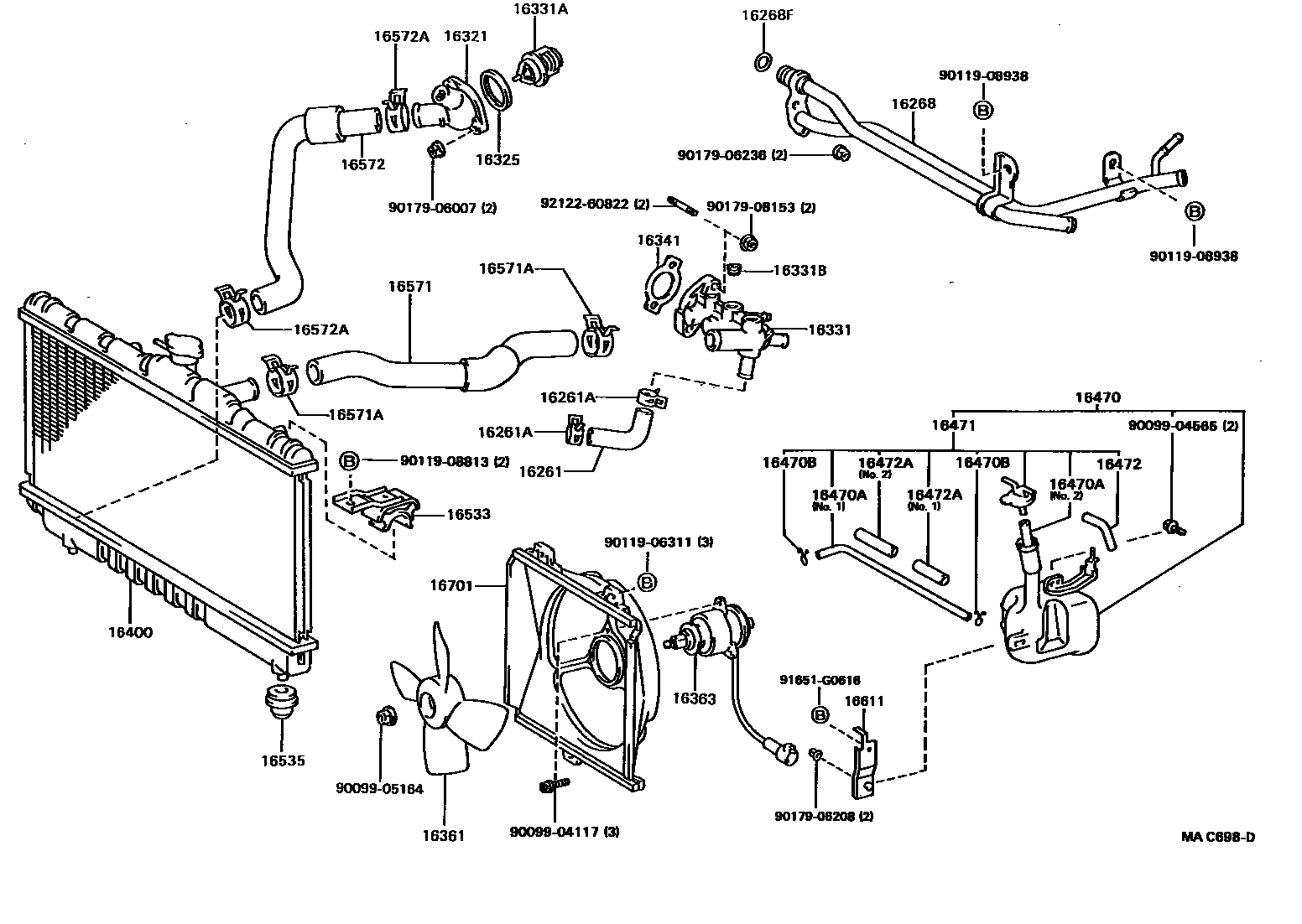

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16261HOSE, WATER BY-PASS

main16261-74010i3SFE..ST182,183198909-199309

main16261-88361i3SGE..ST182,183198909-199107

main16261-88380i3SGTE..ST185198910-199107

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-22003×2i3SFE,3SG#..ST18#198909-199309

16268PIPE, WATER BY-PASS, NO.1

main16268-74010i3SFE..ST182,183198909-199108

main16268-74100i3SGE..ST182,183..ATM198909-199107

main16268-74101i3SGE..ST182,183..ATM199107-199309

main16268-74120i3SGE..ST182,183..MTM198909-199107

main16268-74121i3SGE..ST182,183..MTM199107-199309

main16268-74150i3SFE..ST182,183199108-199204

main16268-74151i3SFE..ST182,183199204-199308

main16268-74152i3SFE..ST182,183199308-199309

main16268-88382i3SGTE..ST185198910-199107

main16268-88383i3SGTE..ST185199107-199309

16268FRING, O(FOR WATER BY-PASS PIPE)

main96761-24017i3SFE,3SG#..ST18#198909-199309

16321INLET, WATER

main16321-74030i3SFE..ST182,183199008-199309

main16321-88381i3SFE,3SG#..ST18#198909-199008

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i3SFE,3SG#..ST18#198909-199008

main16325-63010i3SFE..ST182,183199008-199301

main16325-63011i3SFE..ST182,183199301-199309

16331OUTLET, WATER

main16304-74110i3SFE..ST182,183198909-199108

main16304-74120i3SGE..ST182,183198909-199107

main16304-74121i3SGE..ST182,183199107-199309

main16304-88382i3SGTE..ST185..GT4,GT4A198910-199309

main16304-88386i3SGTE..ST185..GT4RC199108-199202

main16331-74180i3SFE..ST182,183199203-199309

16331ATHERMOSTAT

main90916-03046i3SFE..ST182,183199008-199106

main90916-03060i3SFE..ST182,183199106-199309

main90916-03075i3SG#..ST18#199008-199309

16331BPLUG(FOR WATER OUTLET)

main90345-53009×2i3SFE..ST182,183198909-199108

16341GASKET, WATER OUTLET

main16341-63011i3SFE..ST182,183198909-199309

main16341-74030i3SGE..ST182,183198909-199309

main16341-88380i3SGTE..ST185198910-199102

main16341-88381i3SGTE..ST185199102-199309

16361FAN

main16361-55010i3SGTE..ST185..GT4RC199108-199202

main16361-63020i3SGTE..ST185..GT4,GT4A198910-199309

main16361-64010i3SFE..ST182,183; 3SGE..ST182,183198909-199309

main16361-74040i3SGE..ST182,183198909-199309

16363MOTOR, COOLING FAN

main16363-74020i3SFE,3SGE..ST182,183198909-199309

main16363-74030i3SGTE..ST185..NOB;3SGTE..ST185..GT4A; 3SGTE..ST185..WIB..GT4198910-199309

main16363-74050i3SGE..ST182,183198909-199309

NO.2

main16363-74070i3SGTE..ST185..GT4RC199108-199202

16400RADIATOR ASSY

main16400-74500i3SFE..ST182,183..ATM198909-199008

main16400-74510i3SGE..ST182,183..MTM..(CV,GTR)198909-199309

main16400-74520i3SGE..ST182,183..ATM198909-199008

main16400-74530i3SGE..ST183..ACT199004-199108

main16400-74540i3SFE..ST182,183..MTM198909-199309

main16400-74560i3SGTE..ST185198910-199309

16470TANK ASSY, RADIATOR RESERVE

main16470-74110i3SFE,3SGE..ST182,183..CV,GTR,SR,ZR198909-199309

main16470-74120i3SGE..ST183..ACT199004-199108

main16470-74130i3SGTE..ST185..GT4,GT4A198910-199309

main16470-74190i3SGTE..ST185..GT4RC199108-199202

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-74110i3SFE,3SGE..ST182,183..CV,GTR,SR,ZR198909-199309

main85338-74130i3SGTE..ST185198910-199309

main90445-12006i3SGTE..ST185..WIB..GT4198910-199309

main90445-12078i3SFE,3SG#..ST18#..CV,GT4RC,GTR,SR,ZR198909-199309

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085×2i3SFE,3SG#..ST18#198909-199309

16471CAP SUB-ASSY, RESERVE TANK

main16405-74100i3SGE..ST183..ACT199004-199108

main16405-74110i3SGTE..ST185..GT4,GT4A198910-199309

main16405-74120i3SFE,3SGE..ST182,183..CV,GTR,SR,ZR198909-199309

main16405-74180i3SGTE..ST185..GT4RC199108-199202

16472HOSE, BREATHER

main85338-74040i3SFE,3SG#..ST18#198909-199309

16472APROTECTOR, HOSE

main16477-74110i3SFE,3SGE..ST182,183..CV,GTR,SR,ZR198909-199309

main16478-46020i3SGTE..ST185..GT4RC199108-199202

main85338-70070i3SFE,3SGE..ST182,183199108-199309

16533SUPPORT, RADIATOR, UPPER

main16533-74120×2i3SFE..ST182,183..MTM;3SGE..ST182,183..GTR198909-199008

main16533-74130×2i3SFE..ST183..ATM;3SFE,3SGE..ST182,183..ATM;3SG#..ST183,185..ACT,GT4,GT4A,GT4RC199008-199309

16535SUPPORT, RADIATOR, LOWER

main16535-74090×2i3SFE..ST182,183..MTM;3SGE..ST182,183..GTR198909-199007

main16535-74091×2i3SFE..ST182,183;3SGE..ST182,183..MTM199108-199309

main16535-74100×2i3SFE..ST182,183..ATM; 3SGE..ST183..ACT; 3SGTE..ST185199006-199007

main16535-74101×2i3SFE..ST182,183..ATM; 3SGE..ST183..ACT; 3SGTE..ST185199008-199108

main16535-74140×2i3SGE..ST182,183..ATM199109-199309

16571HOSE, RADIATOR, INLET

main16571-74120i3SFE,3SGE..ST182,183198909-199108

main16571-74130i3SGTE..ST185198910-199309

main16571-74210i3SFE,3SGE..ST182,183199109-199309

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33003×2i3SFE,3SG#..ST18#199108-199109

16572HOSE, RADIATOR, OUTLET

main16572-74100i3SFE,3SGE..ST182,183198909-199309

main16572-74110i3SGTE..ST185198910-199309

main16572-88380i3SGTE..ST185198910-199108

main16572-88381i3SGTE..ST185199108-199309

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i3SGTE..ST185199012-199309

RADIATOR SIDE,NO.1

main90467-33003i3SGE..ST182,183199012-199108

WATER INLET SIDE

main90467-34003×2i3SGTE..ST185199108-199309

16611BRACKET, RADIATOR RESERVE TANK

main16611-74070i3SFE,3SG#..ST18#..CV,GT4,GT4A,GTR,SR,ZR198909-199309

main16611-74090i3SGE..ST183..ACT199004-199108

16701SHROUD SUB-ASSY, FAN

main16711-74200i3SFE..ST182,183; 3SGE..ST182,183198909-199010

main16711-74240i3SGTE..ST185..GT4,GT4A198910-199309

main16711-74250i3SGE..ST182,183198909-199309

main16711-74400i3SFE..ST182,183; 3SGE..ST182,183199010-199309

main16711-74420i3SGTE..ST185..GT4RC199108-199202

9009904117

main90099-04117

9009904565

main90099-04565

9009905164

main90099-05164

9011906311

main90119-06311

9011908813

main90119-08813

9011908938

main90119-08938

9017906007

main90179-06007

9017906208

main90179-06208

9017906236

main90179-06236

9017908153

main90179-08153

91651G0616

main91651-G0616

9212260822

main92122-60822

39 parts on this diagram · 6 diagrams in section
