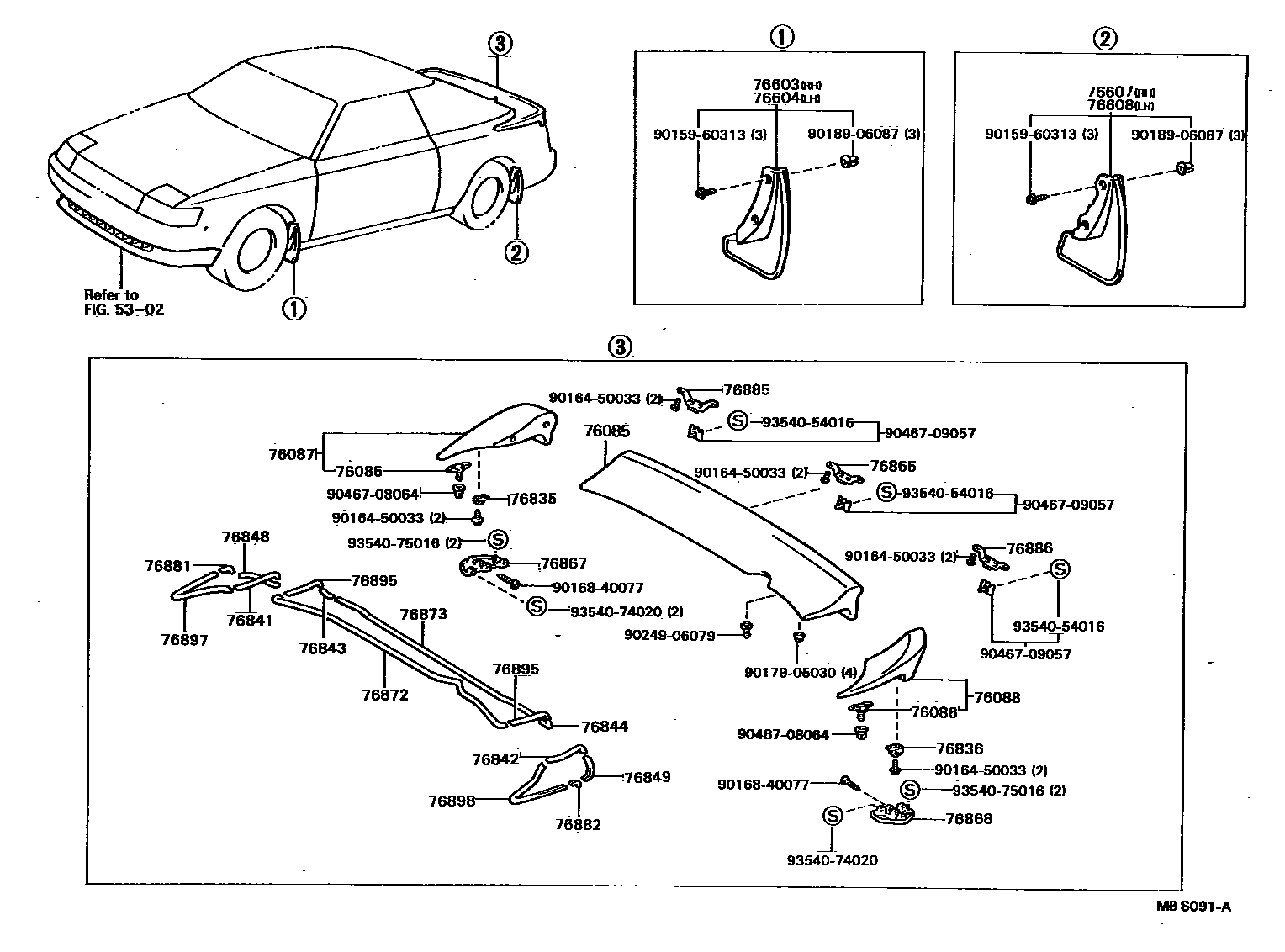

MUDGUARD & SPOILER

0001 1 0002 1

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

76085SPOILER SUB-ASSY, REAR

main76871-20900iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

main76871-20902iST162..CV198710-198908

76086RETAINER SUB-ASSY, REAR SPOILER

main76086-20080×2iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

76087SPOILER SUB-ASSY, REAR NO.1

main76087-20902iST162..CV198710-198908

main76087-20904iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

76088SPOILER SUB-ASSY, REAR NO.2

main76088-20904iST162..CV198710-198908

main76088-20906iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-29075iST160,163; ST162..LB198708-198908

main76603-29095iST165;ST162..CV198710-198908

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-29075iST160,163; ST162..LB198708-198908

main76604-29095iST165;ST162..CV198710-198908

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-29095iST160,163; ST162,165198708-198908

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-29095iST160,163; ST162,165198708-198908

76835RETAINER, REAR SPOILER SIDE, NO.1

main76835-20010iST162..CV198710-198908

main76835-20020iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

76836RETAINER, REAR SPOILER SIDE, NO.2

main76836-20010iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

main76836-20020iST162..CV198710-198908

76841PROTECTOR, REAR SPOILER SIDE, NO.5 RH

main76841-20020iST16#..GT,GT4,SX,ZR; ST160..ST198708-198711

main76841-20021iST16#..GT,GT4,SX,ZR; ST160,163..ST198711-198908

76842PROTECTOR, REAR SPOILER SIDE, NO.5 LH

main76842-20020iST16#..GT,GT4,SX,ZR; ST160..ST198708-198711

main76842-20021iST16#..GT,GT4,SX,ZR; ST160,163..ST198711-198908

76843PROTECTOR, REAR SPOILER, NO.11 RH

main76843-20010iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

main76843-20020iST162..CV198710-198908

76844PROTECTOR, REAR SPOILER, NO.11 LH

main76844-20010iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

main76844-20020iST162..CV198710-198908

76848PROTECTOR, REAR SPOILER, NO.12 RH

main76848-20010iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

main76848-20020iST162..CV198710-198908

76849PROTECTOR, REAR SPOILER, NO.12 LH

main76849-20010iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

main76849-20020iST162..CV198710-198908

76865RETAINER, REAR SPOILER, NO.1

main76865-20060×3iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

76867RETAINER, REAR SPOILER SIDE, RH

main76867-20071iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

main76867-20090iST162..CV198710-198908

76868RETAINER, REAR SPOILER SIDE, LH

main76868-20061iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

main76868-20080iST162..CV198710-198908

76872PROTECTOR, REAR SPOILER, NO.1

main76803-20010iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

main76803-20020iST162..CV198710-198908

76873PROTECTOR, REAR SPOILER, NO.2

main76873-20020iST162..CV198710-198908

main76873-20040iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-20030iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76882-20030iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

76885RETAINER, REAR SPOILER, NO.5

main76885-20040iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

76886RETAINER, REAR SPOILER, NO.6

main76886-20020iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

76895PROTECTOR, REAR SPOILER, NO.5

main76895-20020iST162..CV198710-198908

main76895-20030iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

76897PROTECTOR, REAR SPOILER, SIDE RH

main76807-20010iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

main76807-20020iST162..CV198710-198908

76898PROTECTOR, REAR SPOILER, SIDE LH

main76808-20010iST160,163,165; ST162..LB198708-198908

main76808-20020iST162..CV198710-198908

9015960313

main90159-60313

9016450033

main90164-50033

9016840077

main90168-40077

9017905030

main90179-05030

9018906087

main90189-06087

9024906079

main90249-06079

9046708064

main90467-08064

9046709057

main90467-09057

9354054016

main93540-54016

9354074020

main93540-74020

9354075016

main93540-75016

40 parts on this diagram · 2 diagrams in section
