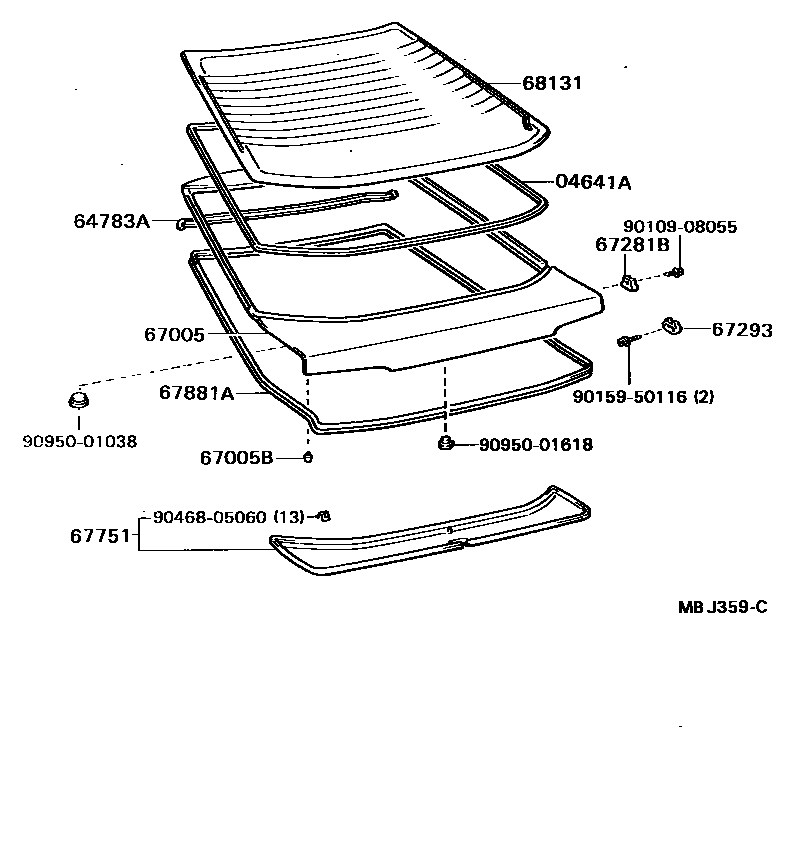

BACK DOOR PANEL & GLASS

04641ADAM KIT, BACK WINDOW GLASS ADHESIVE

main04562-30040iST16#..LB198708-198908

64783ATRIM, BACK WINDOW PANEL, UPPER

main64783-20020iST16#..LB198708-198908

67005PANEL SUB-ASSY, BACK DOOR

main67005-20591iST160,163..ST198708-198908

main67005-20601iST160,163..ST198708-198908

main67005-20661iST16#..GT,GT4,SX,ZR; ST160,163..ST198708-198908

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09041×2iST16#..LB198708-198908

67281BSTOPPER, BACK DOOR, LOWER

main67281-20020×2iST16#..LB198708-198908

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-20020×2iST16#..LB198708-198908

67751BOARD, BACK DOOR TRIM

main64781-20040-01iST16#..LB198708-198908

BLACK,TRIM2#

main64781-20040-04iST163..4FC;ST160,162..LB;ST163..5F..SX198708-198908

DEEP BLUE,TRIM8#

67881AWEATHERSTRIP, BACK DOOR

main67881-20050iST16#..LB198708-198908

68131GLASS, BACK DOOR

main68131-20130iST16#..LB198708-198805

main68131-20390iST16#..LB198805-198908

9010908055

main90109-08055

9015950116

main90159-50116

9046805060

main90468-05060

9095001038

main90950-01038

9095001618

main90950-01618

14 parts on this diagram · 1 diagram in section
