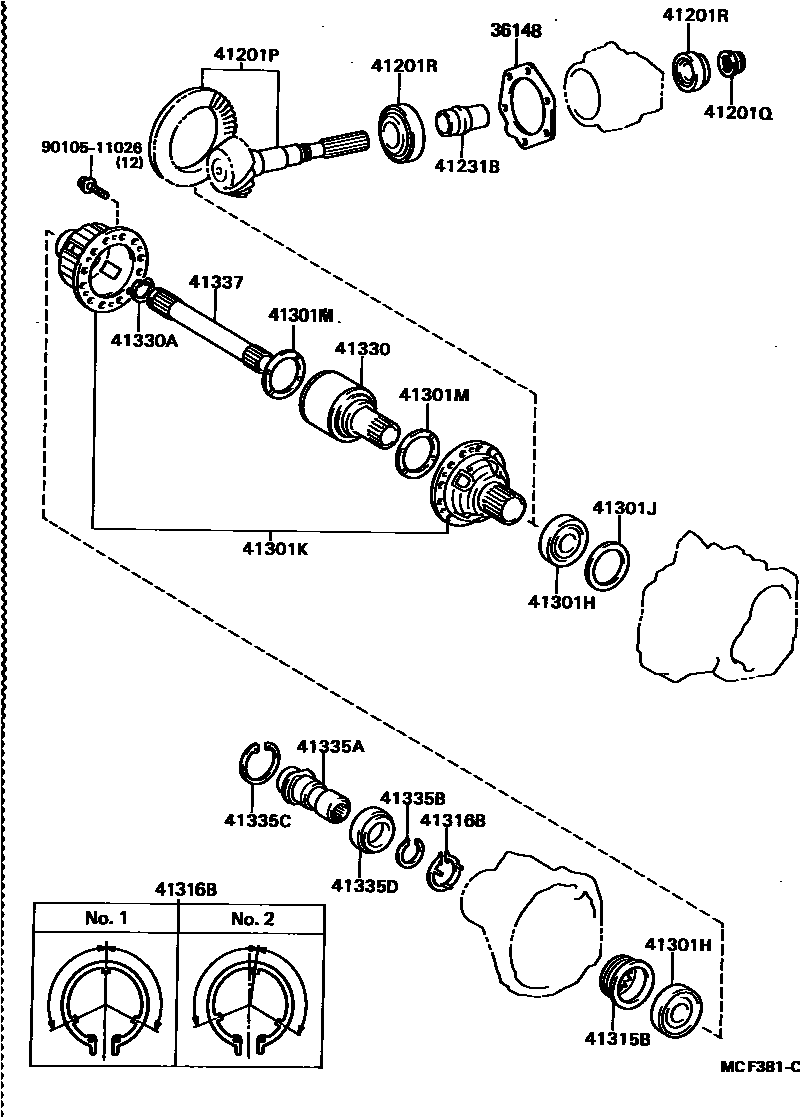

TRANSFER GEAR
36148SHIM, PINION BEARING CAGE
41201PGEAR KIT, TRANSFER
41201QNUT (FOR TRANSFER GEAR)
41201RBEARING (FOR TRANSFER DRIVEN PINION)
41231BSPACER, TRANSFER PINION BEARING
41301HBEARING(FOR RING GEAR MOUNTING CASE)
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41301KCASE SUB-ASSY, CENTER DIFFERENTIAL RING GEAR MOUNTING
41301MWASHER(FOR TRANSFER GEAR)
41315BNUT, BEARING ADJUSTING
41330COUPLING ASSY, CENTER DIFFERENTIAL CONTROL
41330ARING, HOLE SNAP (FOR DIFFERENTIAL INTERMEDIATE SHAFT)
41335AHOLDER, DIFFERENTIAL SIDE GEAR SHAFT
41335BRING, SHAFT SNAP (FOR SIDE GEAR SHAFT HOLDER)
41335CRING, HOLE SNAP (FOR SIDE GEAR SHAFT HOLDER)
41335DBEARING (FOR SIDE GEAR SHAFT HOLDER)
41337SHAFT, DIFFERENTIAL SIDE GEAR INTERMEDIATE, NO.2
9010511026
main90105-11026
19 parts on this diagram · 1 diagram in section
