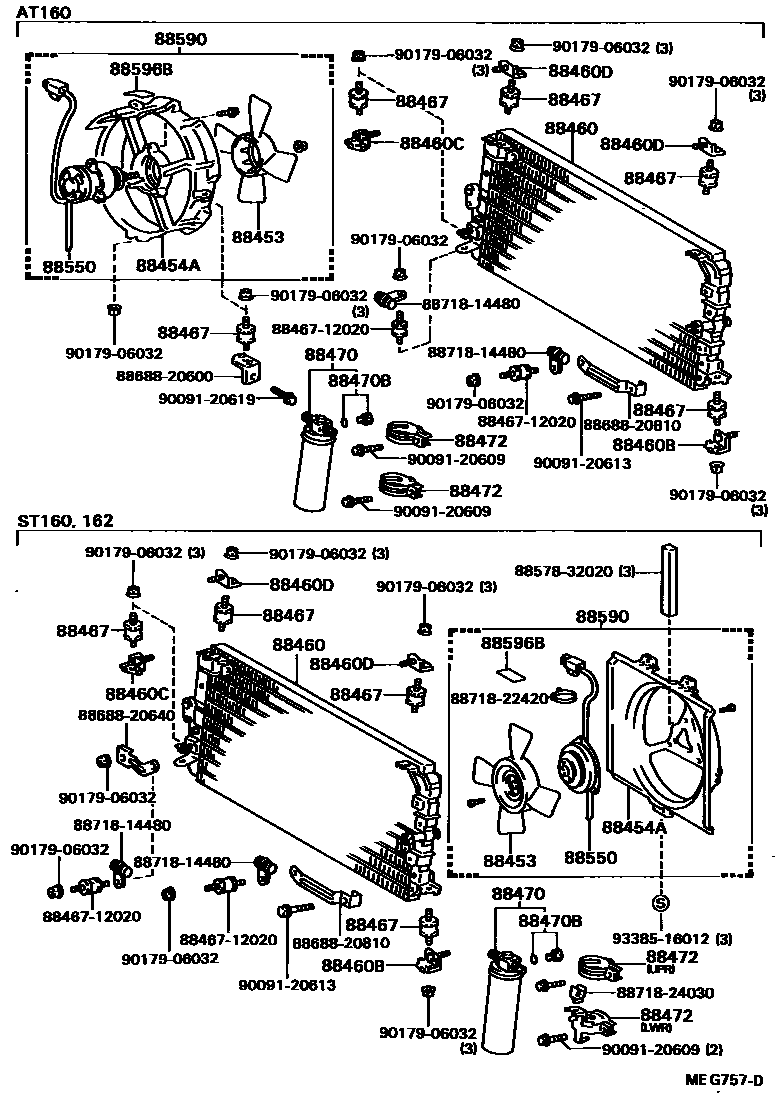

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

88453FAN, COOLING (FOR CONDENSER)

main88453-20020iAT160,ST165198508-198708

main88453-32020iST160,162198508-198708

88454ASHROUD, FAN

main88454-12061iST160..4FC198508-198708

main88454-20050iAT160,ST165198508-198708

main88454-32030iST160..5F; ST162198508-198708

88460CONDENSER ASSY, COOLER

main88460-20200iAT160,ST16#198508-198708

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-20650iAT160,ST160,162198508-198708

main88688-20830iST165198610-198708

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-20660iAT160,ST16#198508-198708

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-20620×2iAT160,ST16#198508-198708

88467CUSHION, COOLER CONDENSER, NO.1

main88467-14040×5iAT160,ST16#198508-198708

88470RECEIVER & DRYER ASSY, COOLER

main88470-12050iAT160,ST16#198508-198708

88470BBOLT, FUSE

main88475-12020iAT160,ST16#198508-198708

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iAT160,ST16#198508-198708

UPR

main88473-20030iAT160,ST16#198508-198708

LWR

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12090iST160,162198508-198708

main88550-20030iAT160,ST165198508-198708

88590BLOWER ASSY, W/SHROUD

main88590-12061iST160..4FC198508-198708

main88590-20130iST162198508-198708

main88590-20140iST160..5F198508-198708

main88590-20150iAT160,ST165198508-198708

88596BPLATE, CAUTION, NO.1

main88596-14010iST160..4FC198508-198608

main88596-24010iST160..4FC198608-198708

8846712020CUSHION, COOLER CONDENSER, NO.1

main88467-12020

8857832020PAKING, COOLER AIR DUCT

main88578-32020

8868820600BRACKET, COOLER DIAPHRAGM

main88688-20600

8868820640BRACKET, COOLER DIAPHRAGM

main88688-20640

8868820810BRACKET, COOLER DIAPHRAGM

main88688-20810

8871814480PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14480

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

8871824030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24030

9009120609

main90091-20609

9009120613

main90091-20613

9009120619

main90091-20619

9017906032

main90179-06032

9338516012

main93385-16012

26 parts on this diagram · 4 diagrams in section
