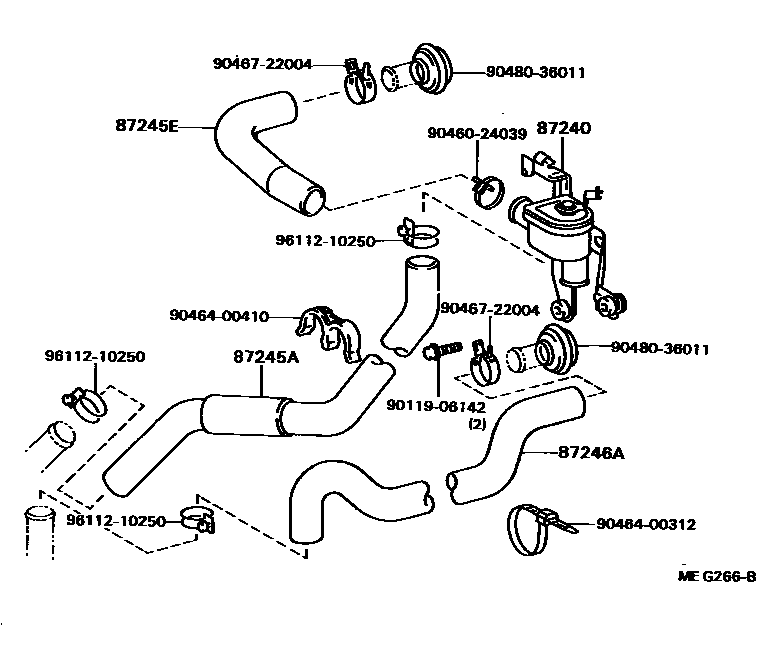

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87240VALVE ASSY, HEATER WATER

main87240-20290iAT160,ST16#198508-198708

87245AHOSE, HEATER WATER, INLET A

main87245-20830iST160198508-198708

main87245-20840iAT160198508-198708

main87245-2B080iST162,165198508-198708

87245EHOSE, HEATER WATER, INLET E

main87245-20810iAT160,ST16#198508-198708

87246AHOSE, HEATER WATER, OUTLET A

main87245-20850iAT160198508-198708

main87245-2B090iST162,165198508-198708

main99556-30500iST160198508-198708

9011906142

main90119-06142

9046024039

main90460-24039

9046400312

main90464-00312

9046400410

main90464-00410

9046722004

main90467-22004

9048036011

main90480-36011

9611210250

main96112-10250

11 parts on this diagram · 2 diagrams in section
