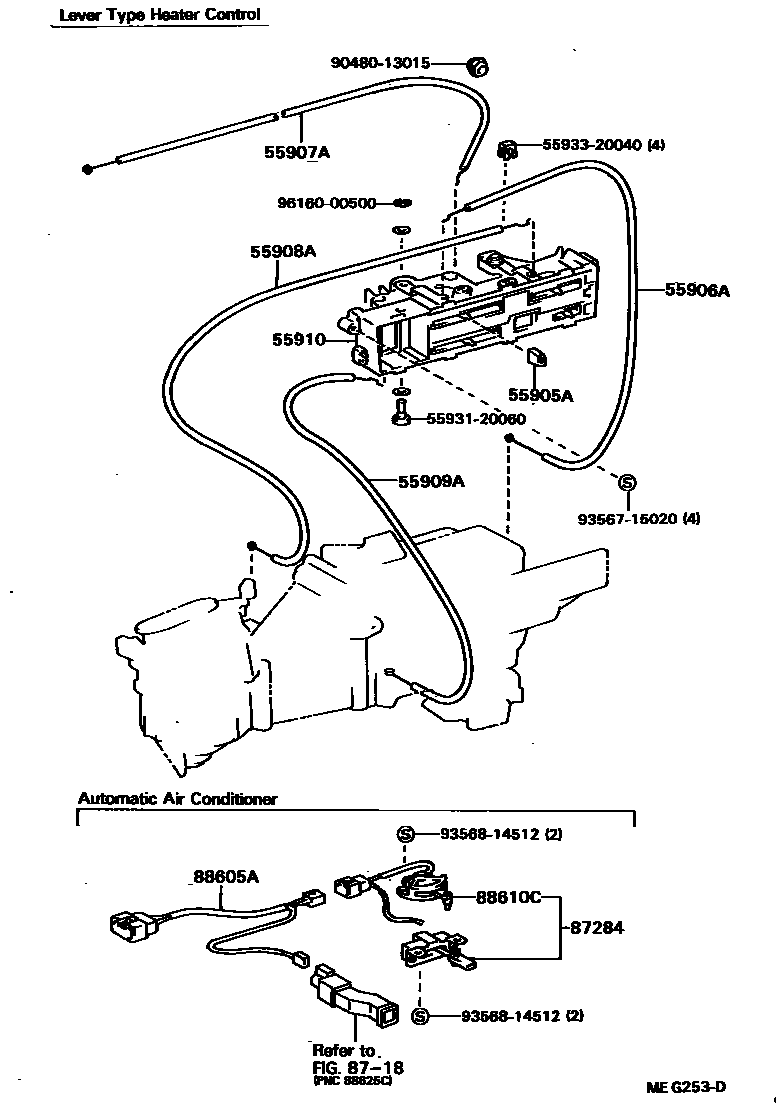

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55905AKNOB, HEATER CONTROL

main55905-12070×4iAT160,ST160,162198508-198708

main55905-20150iST162,165198508-198708

W/*PHC,A/C

main55905-20160iST162,165198508-198708

W/*PHC,ECON

main55905-20170iST162,165198508-198708

W/*PHC,MODE AUTO

main55905-20180iST162,165198508-198708

W/*PHC,BLOWER AUTO

main55905-20240iST162,165198508-198708

W/*PHC,HI

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-20210iAT160,ST160,162198508-198708

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-20180iAT160,ST160,162198508-198708

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-20100iAT160,ST160,162198508-198708

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-20050iAT160,ST160,162198508-198708

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55900-20350iST162198508-198609

*PHC

main55900-20351iST162,165198609-198708

*PHC

main55910-20370iAT160,ST160,162198508-198708

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

87284RESISTOR SUB-ASSY, VARIABLE

main88032-20070iAT160,ST160,162198508-198708

W/*AAC

88605AHARNESS SUB-ASSY, COOLER WIRING

main88605-20730iAT160,ST160,162198508-198708

W/*AAC,*LHC

88610CSWITCH ASSY, COOLER CONTROL

main88610-20160iAT160,ST160,162198508-198708

W/*AAC,*LHC

5593120060CLAMP, HEATER CONTROL WIRE

main55931-20060

5593320040GUIDE, LEVER, NO.2

main55933-20040

9048013015

main90480-13015

9356715020

main93567-15020

9356814512

main93568-14512

9616000500

main96160-00500
