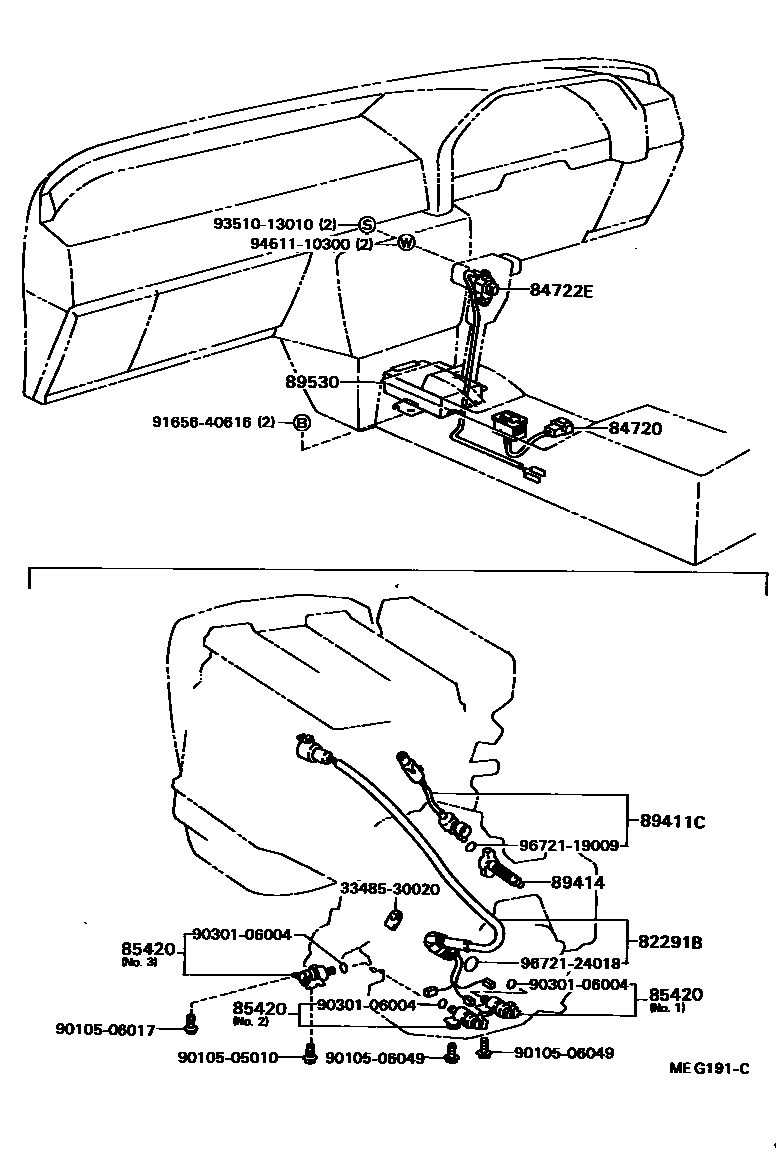

ELECTRONIC CONTROLLED TRANSMISSION
82291BWIRE, TO SOLENOID (FOR TRANSMISSION)
84720SWITCH ASSY, PATTERN SELECT
84722ESWITCH, TRANSMISSION CONTROL
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
85420SOLENOID ASSY, TRANSMISSION
NO.1,NO.2
NO.3
NO.1,AISIN
NO.1,DENSO
NO.2,AISIN
NO.2,DENSO
NO.3
NO.3
89530COMPUTER ASSY, TRANSMISSION CONTROL
3348530020PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
main33485-30020
9010505010
main90105-05010
9010506017
main90105-06017
9010506049
main90105-06049
9030106004
main90301-06004
9165640616
main91656-40616
9351013010
main93510-13010
9461110300
main94611-10300
9672119009
main96721-19009
9672124018
main96721-24018
17 parts on this diagram · 2 diagrams in section
