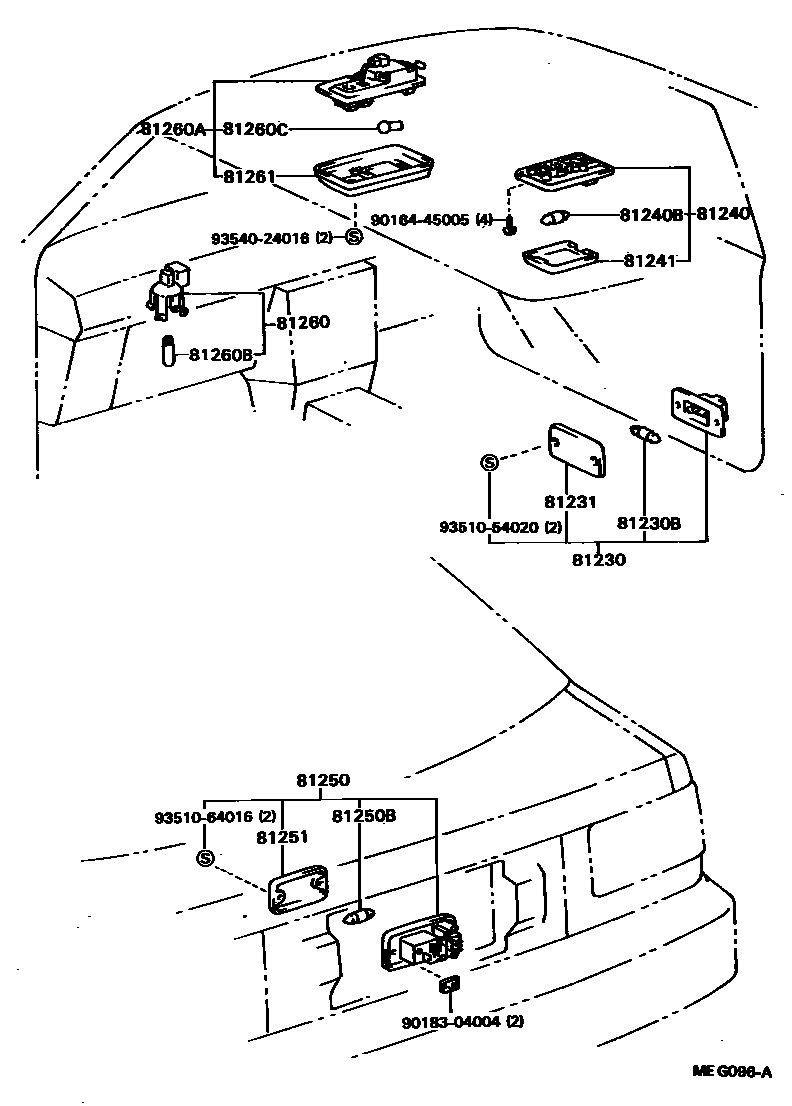

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-14040×2iAT160,ST16#..GT,GT4,SX198508-198708

81230BBULB(FOR COURTESY LAMP)

main99132-13050×2iAT160,ST16#..GT,GT4,SX198508-198708

81231LENS, COURTESY LAMP

main81231-30100×2iAT160,ST16#..GT,GT4,SX198508-198708

81240LAMP ASSY, ROOM, NO.1

main81240-22080-04iAT160,ST16#198508-198608

BLUE,DEEP BLUE,TRIM8#

main81240-22080-13iAT160,ST16#198508-198608

GRAY,SHADOW GRAY,TRIM1#

main81240-22081-04iAT160,ST160,162198608-198708

BLUE,DARK BLUE,TRIM8#

main81240-22081-13iAT160,ST16#198608-198708

GRAY,SHADOW GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAT160,ST16#198508-198708

81241LENS, ROOM LAMP, NO.1

main81241-20060iAT160,ST16#198508-198708

81250LAMP ASSY, ROOM, NO.2

main81250-14030-13iAT160,ST16#198508-198708

GRAY,GRAY,TRIM1#

main81250-14030-14iAT160,ST160,162198508-198708

BLUE,BLUE,TRIM8#

81250BBULB, ROOM LAMP, NO.2

main99132-13050iAT160,ST16#198508-198708

81251LENS, ROOM LAMP, NO.2

main81251-14030iAT160,ST16#198508-198708

81260LAMP ASSY, GLOVE BOX

main81260-22070iAT160,ST16#..GT,GT4,ST,SX198508-198708

81260ALAMP ASSY, MAP

main81260-20090-03iAT160,ST16#..GT,GT4,ST,SX198508-198708

GRAY,SHADOW GRAY,TRIM1#

main81260-20090-04iAT160,ST160,162..GT,ST,SX198508-198708

BLUE,DEEP BLUE,TRIM8#

81260BBULB(FOR GLOVE BOX)

main90981-11018iAT160,ST16#..GT,GT4,ST,SX198508-198708

81260CBULB(FOR MAP LAMP)

main90981-12014iAT160,ST16#..GT,GT4,ST,SX198508-198708

81261LENS AND COVER, MAP LAMP

main81261-20090-03iAT160,ST16#..GT,GT4,ST,SX198508-198708

GRAY,SHADOW GRAY,TRIM1#

main81261-20090-04iAT160,ST160,162..GT,ST,SX198508-198708

BLUE,DEEP BLUE,TRIM8#

9016445005

main90164-45005

9018304004

main90183-04004

9351054020

main93510-54020

9351064016

main93510-64016

9354024016

main93540-24016

19 parts on this diagram · 1 diagram in section
