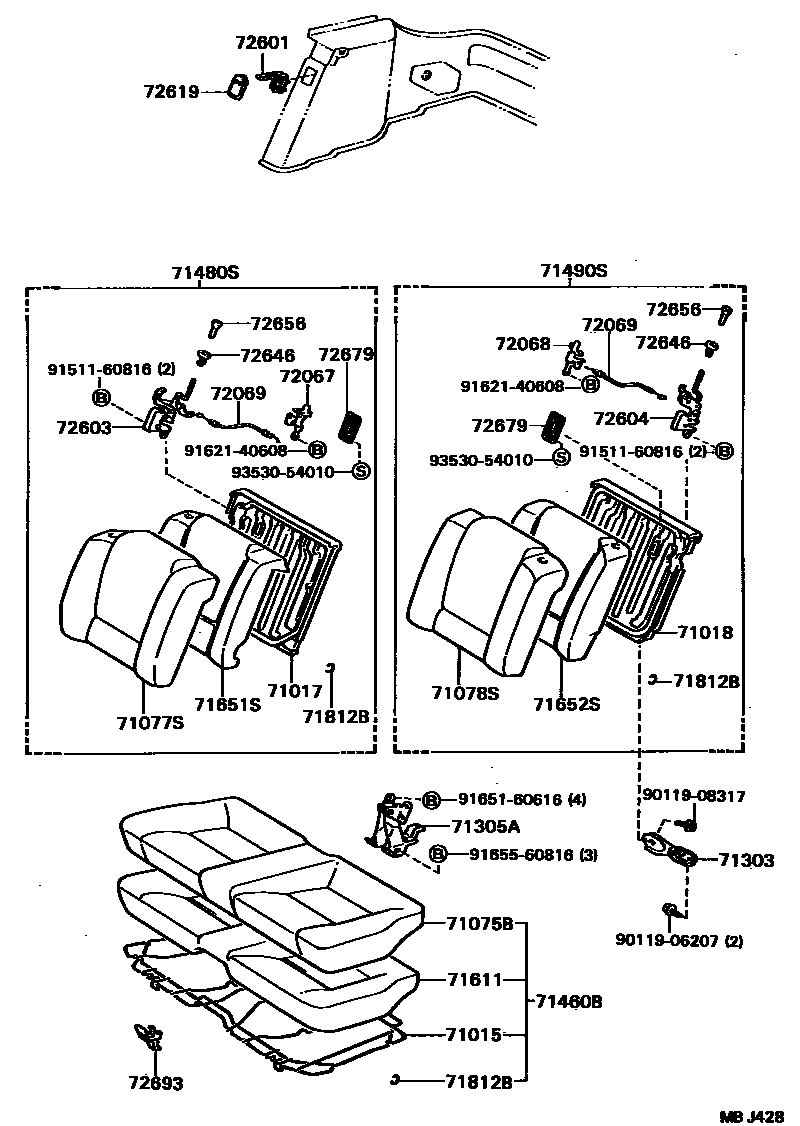

REAR SEAT & SEAT TRACK

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-20190iAT160,ST16#198508-198708

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-20240iAT160,ST16#198508-198708

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-20050iAT160,ST16#198508-198708

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-20460-03iAT160,ST162198508-198512

FB,GRAY,SHADOW GRAY,TRIM1#

main71065-20460-04iAT160,ST162198508-198512

FB,BLUE,DEEP BLUE,TRIM8#

main71065-20461-03iAT160,ST162198512-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71065-20461-04iAT160,ST162198512-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71065-20520-03iST160..SX198508-198512

FB,GRAY,SHADOW GRAY,TRIM1#

main71065-20520-04iST160..SX198508-198512

FB,BLUE,DEEP BLUE,TRIM8#

main71065-20521-03iST160..SX198512-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71065-20521-04iST160..SX198512-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71065-20540-03iST160..ST,SV198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71065-20540-04iST160..ST,SV198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71065-20590-03iST165198610-198708

FB,GRAY,SHADOW GRAY,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-2B560-03iAT160,ST162198508-198512

FB,GRAY,SHADOW GRAY,TRIM1#

main71077-2B560-04iAT160,ST162198508-198512

FB,BLUE,DEEP BLUE,TRIM8#

main71077-2B561-03iAT160,ST162198512-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71077-2B561-04iAT160,ST162198512-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71077-2B680-03iST160..SX198508-198512

FB,GRAY,SHADOW GRAY,TRIM1#

main71077-2B680-04iST160..SX198508-198512

FB,BLUE,DEEP BLUE,TRIM8#

main71077-2B681-03iST160..SX198512-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71077-2B681-04iST160..SX198512-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71077-2B700-03iST160..ST,SV198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71077-2B700-04iST160..ST,SV198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71077-2B750-03iST165198610-198708

FB,GRAY,SHADOW GRAY,TRIM1#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-20270-03iAT160,ST162198508-198512

FB,GRAY,SHADOW GRAY,TRIM1#

main71078-20270-04iAT160,ST162198508-198512

FB,BLUE,DEEP BLUE,TRIM8#

main71078-20271-03iAT160,ST162198512-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71078-20271-04iAT160,ST162198512-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71078-20320-03iST160..SX198508-198512

FB,GRAY,SHADOW GRAY,TRIM1#

main71078-20320-04iST160..SX198508-198512

FB,BLUE,DEEP BLUE,TRIM8#

main71078-20321-03iST160..SX198512-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71078-20321-04iST160..SX198512-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71078-20340-03iST160..ST,SV198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71078-20340-04iST160..ST,SV198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71078-20380-03iST165198610-198708

FB,GRAY,SHADOW GRAY,TRIM1#

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-16010×2iAT160,ST16#198508-198708

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-20050iAT160,ST16#198508-198708

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-20380-03iST160..ST,SV198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71560-20380-04iST160..ST,SV198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71560-20390-03iST160..SX198508-198512

FB,GRAY,SHADOW GRAY,TRIM1#

main71560-20390-04iST160..SX198508-198512

FB,BLUE,DEEP BLUE,TRIM8#

main71560-20391-03iST160..SX198512-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71560-20391-04iST160..SX198512-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71560-20400-03iAT160,ST162198508-198512

FB,GRAY,SHADOW GRAY,TRIM1#

main71560-20400-04iAT160,ST162198508-198512

FB,BLUE,DEEP BLUE,TRIM8#

main71560-20401-03iAT160,ST162198512-198708

FB,GRAY,GRAY,TRIM1#

main71560-20401-04iAT160,ST162198512-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71560-20530-03iST165198610-198708

FB,GRAY,SHADOW GRAY,TRIM1#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-2B630-03iST160..ST,SV198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71480-2B630-04iST160..ST,SV198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71480-2B640-03iST160..SX198508-198512

FB,GRAY,SHADOW GRAY,TRIM1#

main71480-2B640-04iST160..SX198508-198512

FB,BLUE,DEEP BLUE,TRIM8#

main71480-2B641-03iST160..SX198512-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71480-2B641-04iST160..SX198512-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71480-2B650-03iAT160,ST162198508-198512

FB,GRAY,SHADOW GRAY,TRIM1#

main71480-2B650-04iAT160,ST162198508-198512

FB,BLUE,DEEP BLUE,TRIM8#

main71480-2B651-03iAT160,ST162198512-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71480-2B651-04iAT160,ST162198512-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71480-2B800-03iST165198610-198708

FB,GRAY,SHADOW GRAY,TRIM1#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-20260-03iST160..ST,SV198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71490-20260-04iST160..ST,SV198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71490-20270-03iST160..SX198508-198512

FB,GRAY,SHADOW GRAY,TRIM1#

main71490-20270-04iST160..SX198508-198512

FB,BLUE,DEEP BLUE,TRIM8#

main71490-20271-03iST160..SX198512-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71490-20271-04iST160..SX198512-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71490-20330-03iAT160,ST162198508-198512

FB,GRAY,SHADOW GRAY,TRIM1#

main71490-20330-04iAT160,ST162198508-198512

FB,BLUE,DEEP BLUE,TRIM8#

main71490-20331-03iAT160,ST162198512-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71490-20331-04iAT160,ST162198512-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71490-20370-03iST165198610-198708

FB,GRAY,SHADOW GRAY,TRIM1#

71611PAD, REAR SEAT CUSHION

main71611-20340iAT160,ST160,162198508-198708

main71611-20380iST165198610-198708

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-20400iST160198508-198708

main71651-20410iAT160,ST162,165198508-198708

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-20260iST160198508-198708

main71652-20270iAT160,ST162,165198508-198708

71812BCLIP(FOR REAR SEAT CUSHION COVER)

main90468-18071iAT160,ST16#198508-198708

72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

main72067-20010iAT160,ST16#198508-198708

72068LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

main72068-20010iAT160,ST16#198508-198708

72069CABLE SUB-ASSY, REAR SEATBACK LOCK CONTROL

main72069-20010×2iAT160,ST16#198508-198708

72601STRIKER SUB-ASSY, REAR SEAT LOCK

main72610-20010×2iAT160,ST16#198508-198708

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72603-20010iAT160,ST16#198508-198708

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72604-20010iAT160,ST16#198508-198708

72619COVER, REAR SEATBACK LOCK STRIKER

main72615-20010-03×2iAT160,ST16#198508-198708

GRAY,GRAY,TRIM1#

main72615-20010-14×2iAT160,ST160,162198508-198708

BLUE,BLUE,TRIM8#

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-20020-03×2iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main72646-20020-04×2iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

72656BUTTON, REAR SEATBACK STOP RELEASE

main72661-12010-03×2iAT160,ST16#198508-198708

GRAY,GRAY,TRIM1#

main72661-12010-14×2iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-16010-04×2iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

main72679-16010-13×2iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20010×2iAT160,ST16#198508-198708

9011906207

main90119-06207

9011908317

main90119-08317

9151160816

main91511-60816

9162140608

main91621-40608

9165160616

main91651-60616

9165560816

main91655-60816

9353054010

main93530-54010

33 parts on this diagram · 1 diagram in section
