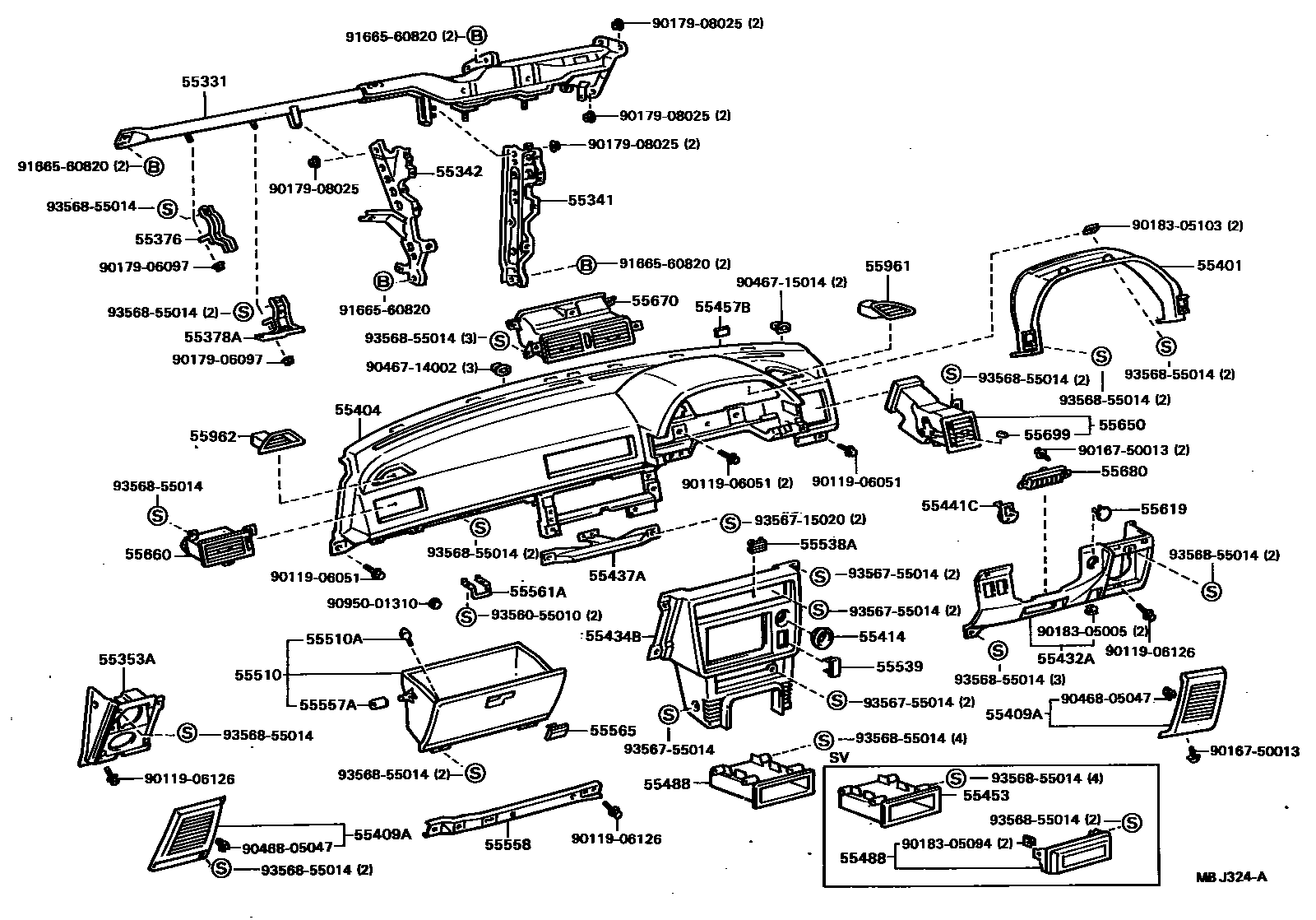

INSTRUMENT PANEL & GLOVE COMPARTMENT

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20070iAT160,ST16#198508-198708

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-20060iAT160,ST16#198508-198708

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-20060iAT160,ST16#198508-198708

55353ABRACKET, SPEAKER MOUNTING, NO.1

main55353-20050-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55353-20050-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-20030iAT160,ST16#198508-198708

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-20080iAT160,ST16#198508-198708

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-20200iAT160,ST16#198508-198708

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-20470-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55401-20470-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55472-20090-03iAT160,ST16#198508-198708

RH,GRAY,SHADOW GRAY,TRIM1#

main55472-20090-04iAT160,ST160,162198508-198708

RH,BLUE,DEEP BLUE,TRIM8#

main55473-20080-03iAT160,ST16#198508-198708

LH,GRAY,SHADOW GRAY,TRIM1#

main55473-20080-04iAT160,ST160,162198508-198708

LH,BLUE,DEEP BLUE,TRIM8#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-20060iAT160,ST16#198508-198708

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-20170-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55432-20170-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20050-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55434-20050-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-20040iAT160,ST16#198508-198708

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-03iAT160,ST160,162198508-198708

GRAY,GRAY,TRIM1#

main55441-20140-14iAT160,ST16#198508-198610

BLUE,BLUE,TRIM8#

main55441-20140-24iAT160,ST160,162198610-198708

BLUE,DEEP BLUE,TRIM8#

55453COVER, RADIO TUNER OPENING

main55521-16010iST160..SV198508-198708

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030×5iAT160,ST16#198508-198708

55488COVER, STEREO OPENING

main55521-16010iAT160,ST160,162..GT,ST,SX198508-198708

main55521-20120iST160..SV198508-198708

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20110-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55550-20110-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×3iAT160,ST16#198508-198708

55538ACOVER, COOLER SWITCH HOLE

main55538-20040iAT160,ST16#198508-198608

main55538-20050iAT160,ST160,162198608-198708

55539COVER, SPARE SWITCH HOLE

main55539-32010-01iAT160,ST16#198508-198708

BLACK,BLACK

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010×2iAT160,ST16#198508-198708

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-20060iAT160,ST16#198508-198708

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-20050iAT160,ST16#198508-198708

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20040-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55565-20040-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

55619COVER, SWITCH HOLE

main55619-14010-24iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

main55619-14010-33iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-20120-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55650-20120-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20060-03iAT160,ST16#198508-198608

GRAY,SHADOW GRAY,TRIM1#

main55660-20060-04iAT160,ST16#198508-198608

BLUE,DEEP BLUE,TRIM8#

main55660-20061-03iAT160,ST16#198608-198708

GRAY,SHADOW GRAY,TRIM1#

main55660-20061-04iAT160,ST160,162198608-198708

BLUE,DEEP BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20060-03iAT160,ST16#198508-198608

GRAY,SHADOW GRAY,TRIM1#

main55670-20060-04iAT160,ST16#198508-198608

BLUE,DEEP BLUE,TRIM8#

main55670-20061-03iAT160,ST16#198608-198708

GRAY,SHADOW GRAY,TRIM1#

main55670-20061-04iAT160,ST160,162198608-198708

BLUE,DEEP BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iAT160,ST16#198508-198708

55699KNOB, INSTRUMENT PANEL REGISTER CONTROL

main55905-20230-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55905-20230-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20100-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55961-20100-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-20110-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main55962-20110-04iAT160,ST160,162198508-198708

BLUE,DEEP BLUE,TRIM8#

9011906051

main90119-06051

9011906126

main90119-06126

9016750013

main90167-50013

9017906097

main90179-06097

9017908025

main90179-08025

9018305005

main90183-05005

9018305094

main90183-05094

9018305103

main90183-05103

9046714002

main90467-14002

9046715014

main90467-15014

9046805047

main90468-05047

9095001310

main90950-01310

9166560820

main91665-60820

9356055010

main93560-55010

9356715020

main93567-15020

9356755014

main93567-55014

9356855014

main93568-55014

50 parts on this diagram · 1 diagram in section
