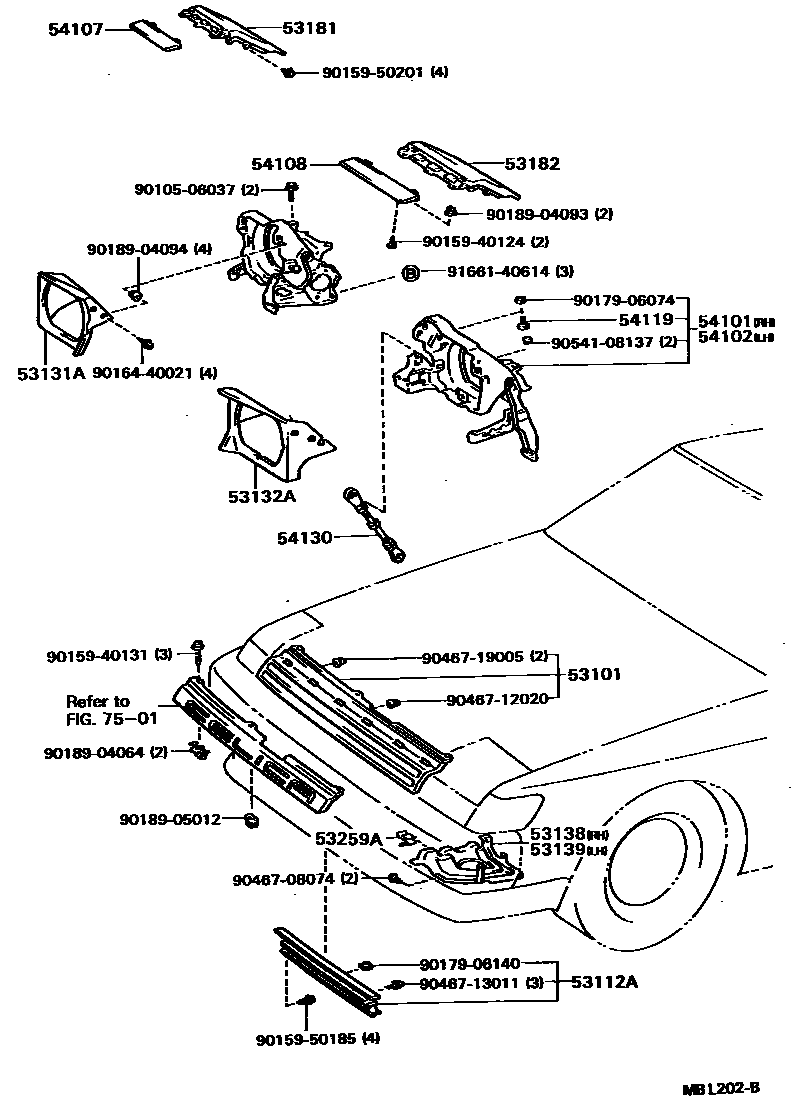

RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-20180iAT160,ST16#198508-198708

53112AGRILLE, RADIATOR, LOWER

main53112-20090iST165198610-198708

53131ADOOR, HEADLAMP, RH

main53131-20250iAT160,ST16#198508-198708

53132ADOOR, HEADLAMP, LH

main53132-20220iAT160,ST16#198508-198708

53138PROTECTOR, HEADLAMP DOOR, RH

main53138-20030iAT160,ST16#198508-198708

53139PROTECTOR, HEADLAMP DOOR, LH

main53139-20030iAT160,ST16#198508-198708

53181COVER, HEADLAMP, RH

main53181-20010iAT160,ST16#198508-198708

53182COVER, HEADLAMP, LH

main53182-20010iAT160,ST16#198508-198708

53259ACLIP, RADIATOR SUPPORT TO FRAME SEAL

main53259-20020×2iAT160,ST16#198508-198708

54101BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, RH

main54110-20010iAT160,ST16#198508-198702

main54110-20030iAT160,ST16#198702-198708

54102BRACKET SUB-ASSY, RETRACTABLE HEADLAMP, LH

main54120-20010iAT160,ST16#198508-198702

main54120-20030iAT160,ST16#198702-198708

54107GARNISH SUB-ASSY, RETRACTABLE HEADLAMP, RH

main54107-20010iAT160,ST16#198508-198708

54108GARNISH SUB-ASSY, RETRACTABLE HEADLAMP, LH

main54108-20010iAT160,ST16#198508-198708

54119STOP, RETRACTABLE HEADLAMP LINK

main54119-14010×2iAT160,ST16#198508-198708

54130ROD ASSY, RETRACTABLE HEADLAMP

main54130-20010×2iAT160,ST16#198508-198708

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010506037

main90105-06037

9015940124

main90159-40124

9015940131

main90159-40131

9015950185

main90159-50185

9015950201

main90159-50201

9016440021

main90164-40021

9017906074

main90179-06074

9017906140

main90179-06140

9018904064

main90189-04064

9018904093

main90189-04093

9018904094

main90189-04094

9018905012

main90189-05012

9046712020

main90467-12020

9046713011

main90467-13011

9046719005

main90467-19005

9054108137

main90541-08137

9166140614

main91661-40614

9946708074

main99467-08074

34 parts on this diagram · 1 diagram in section
