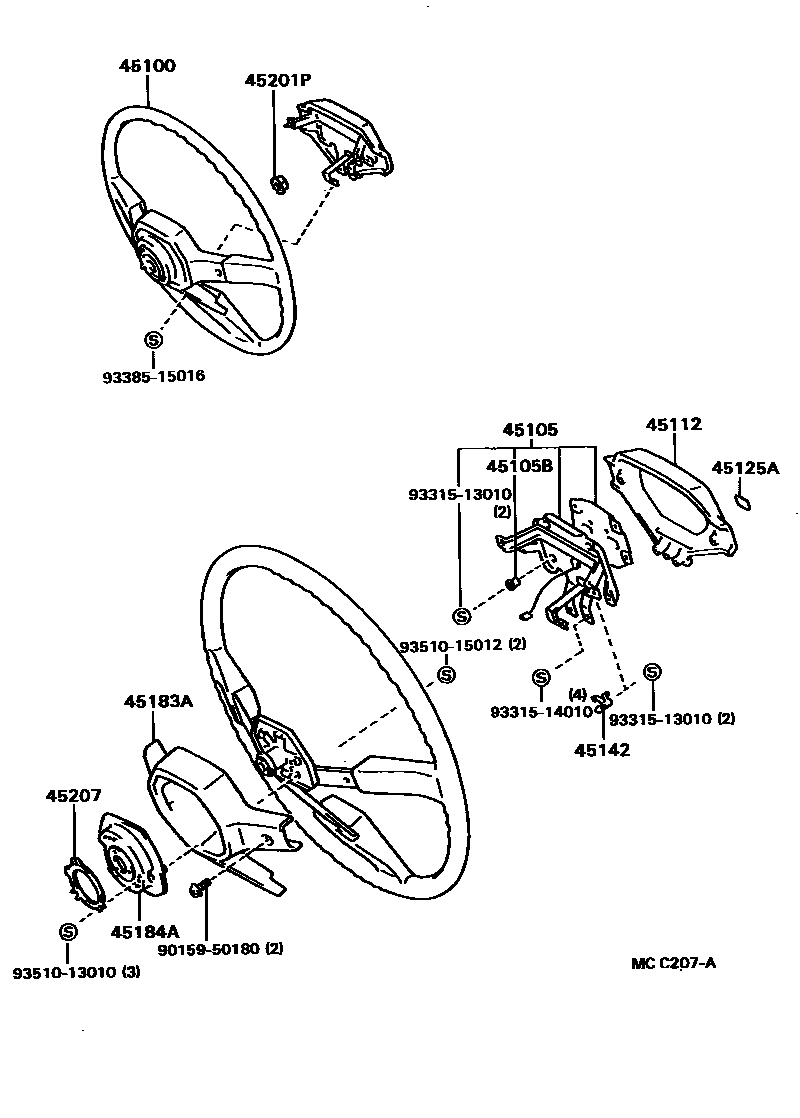

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-20330-03iST160198508-198708

SHADOW GRAY,SHADOW GRAY,TRIM1#

main45100-20330-04iST160198508-198708

DEEP BLUE,DEEP BLUE,TRIM8#

main45100-20350-03iAT160,ST162,165198508-198708

SHADOW GRAY,SHADOW GRAY,TRIM1#

main45100-20350-04iAT160,ST162198508-198708

DEEP BLUE,DEEP BLUE,TRIM8#

main45100-20360-03iST162,165198508-198708

W/AUTO DRIVE,SHADOW GRAY,SHADOW GRAY,TRIM1#

main45100-20360-04iST162198508-198708

W/AUTO DRIVE,DEEP BLUE,DEEP BLUE,TRIM8#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-20060iAT160,ST16#198508-198708

main45105-20080iST162,165198508-198708

W/AUTO DRIVE

45105BSPACER(FOR HORN BUTTON CONTACT PLATE)

main90561-02001×2iAT160,ST16#198508-198708

45112PAD, STEERING WHEEL

main45112-20190-03iST160198508-198708

SHADOW GRAY,SHADOW GRAY,TRIM1#

main45112-20190-04iST160198508-198708

DEEP BLUE,DEEP BLUE,TRIM8#

main45112-20220-03iAT160,ST162198508-198708

SHADOW GRAY,SHADOW GRAY,TRIM1#

main45112-20220-04iAT160,ST162198508-198708

DEEP BLUE,DEEP BLUE,TRIM8#

main45112-20300-03iST165198610-198708

SHADOW GRAY

45125AMARK, HORN

main45148-20020-03iAT160,ST160,162198508-198708

SHADOW GRAY,GRAY,TRIM1#

main45148-20020-04iAT160,ST160,162198508-198708

DEEP BLUE,BLUE,TRIM8#

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-20060×2iAT160,ST16#198508-198708

45183ACOVER, STEERING WHEEL BOSS, LOWER NO.1

main45183-20020-03iAT160,ST16#198508-198708

SHADOW GRAY,SHADOW GRAY,TRIM1#

main45183-20020-04iAT160,ST160,162198508-198708

DEEP BLUE,DEEP BLUE,TRIM8#

main45183-20030-03iST162,165198508-198708

W/AUTO DRIVE,SHADOW GRAY,SHADOW GRAY,TRIM1#

main45183-20030-04iST162198508-198708

W/AUTO DRIVE,DEEP BLUE,DEEP BLUE,TRIM8#

45184ACOVER, STEERING WHEEL BOSS, LOWER NO.2

main45184-20080iAT160,ST16#198508-198708

main45184-20120iST162,165198508-198708

W/AUTO DRIVE

45201PNUT, STEERING WHEEL SET

main90179-12086iAT160,ST16#198508-198708

45207RING, HORN CONTACT

main45176-20060iAT160,ST16#198508-198708

9015950180

main90159-50180

9331513010

main93315-13010

9331514010

main93315-14010

9338515016

main93385-15016

9351013010

main93510-13010

9351015012

main93510-15012

16 parts on this diagram · 2 diagrams in section
