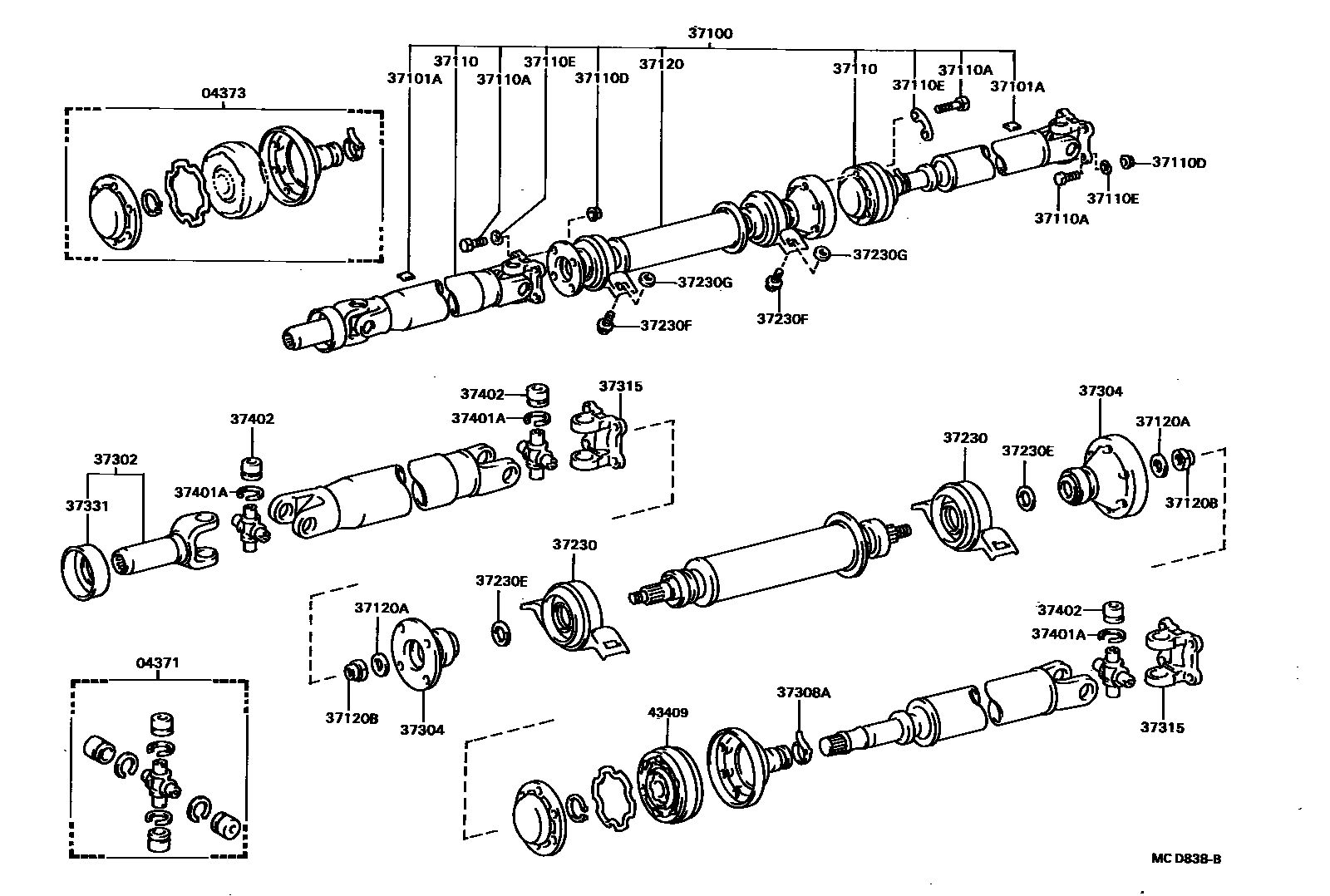

PROPELLER SHAFT & UNIVERSAL JOINT
04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
04373BOOT KIT, UNIVERSAL
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
37110ABOLT (FOR PROPELLER SHAFT)
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
CTR X RR
FR X CTR,RR X DIFF
37120SHAFT ASSY, PROPELLER INTERMEDIATE
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
WASHER T=4.5
WASHER T=6.5
WASHER T=9.0
WASHER T=11.0
WASHER T=13.5
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37304FLANGE SUB-ASSY, UNIVERSAL JOINT
FR
RR
37308ACLAMP (FOR UNIVERSAL JOINT COVER)
37315YOKE, UNIVERSAL JOINT FLANGE
37331COVER, SLIDING SHAFT DUST
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
RED PAINTED
43409JOINT SUB-ASSY, PROPELLER SHAFT CROSS GROOVE
23 parts on this diagram · 1 diagram in section
