TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

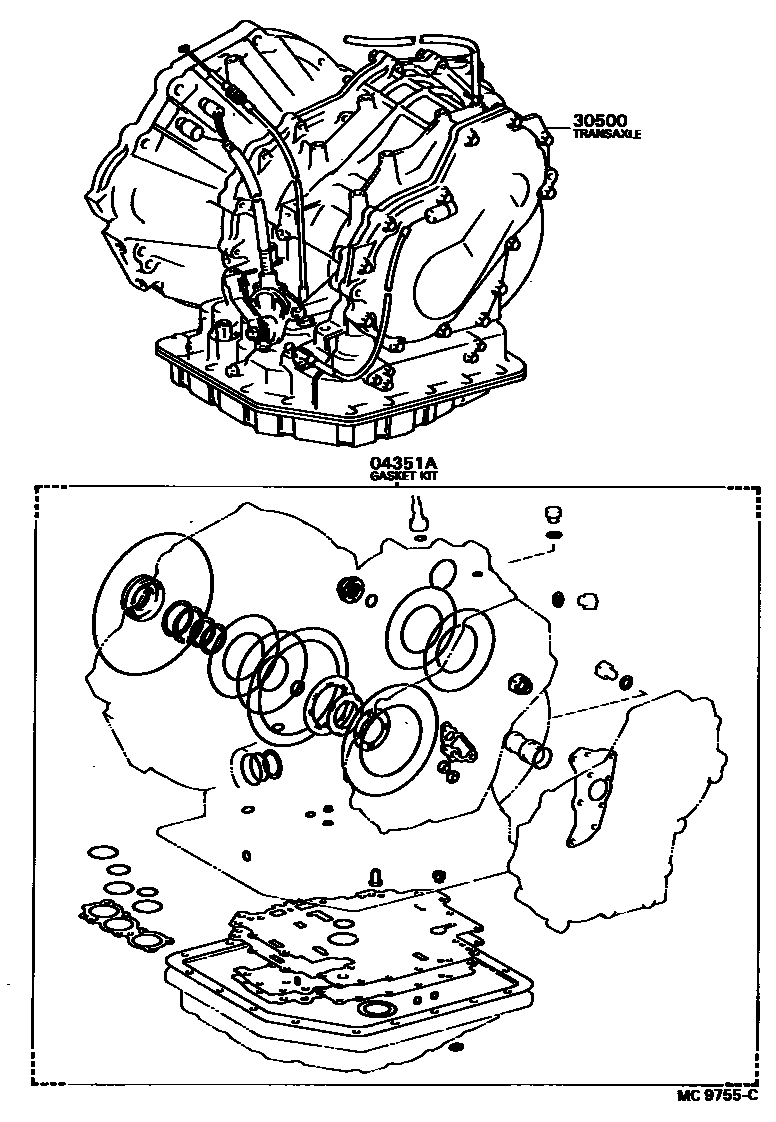

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12060i198508-198708

main04351-20080i198508-198708

main04351-20090i198508-198708

30500TRANSAXLE ASSY, AUTOMATIC

main30500-20160i198508-198607

main30500-20161i198607-198609

main30500-20162i198609-198708

main30500-20190i198508-198607

main30500-20191i198607-198609

main30500-20192i198609-198708

main30500-20221i198508-198708

2 parts on this diagram · 2 diagrams in section
