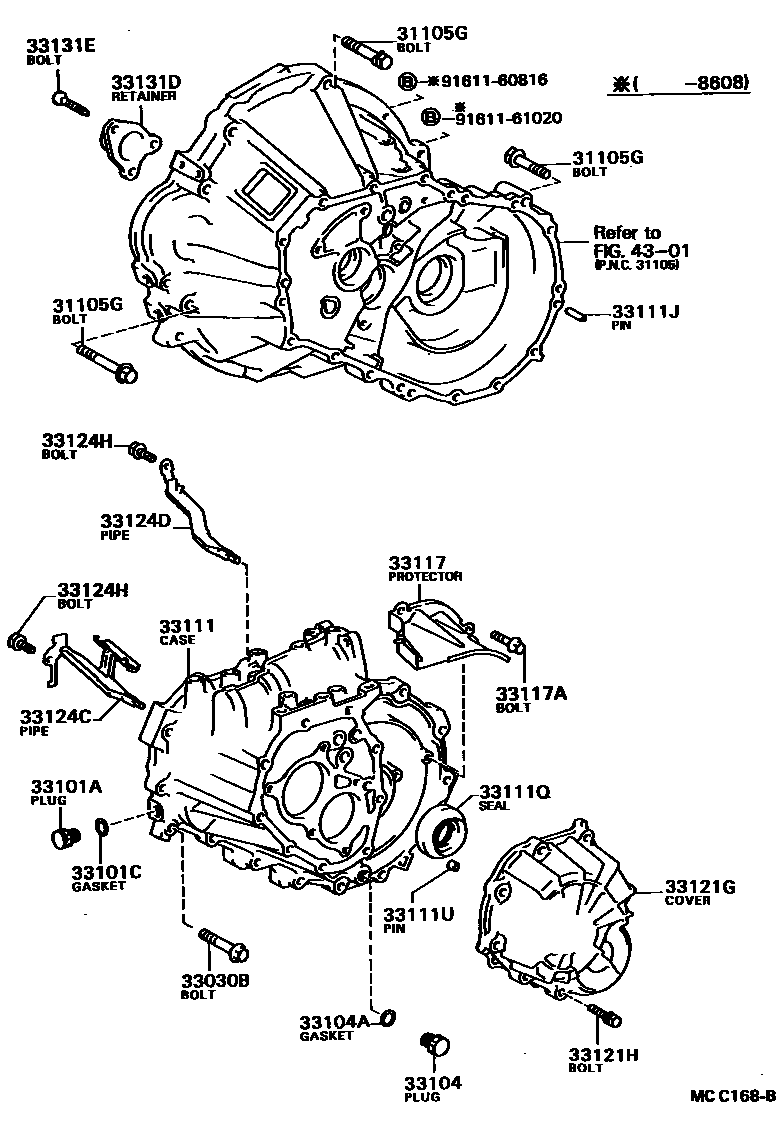

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iST160,162..5F198508-198708

sub91641-H0820

main90105-10077iAT160,ST16#..5F198508-198708

main90119-12042iAT160..5F198508-198708

main90119-12168×3iAT160,ST16#..5F198508-198708

main91511-61035×2iST162..5F198610-198708

*10-1.25PX35-30

sub91512-61035

main91611-61040×2iST162..5F198508-198610

sub91612-61040

main91651-41022iST16#..5F198507-198708

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042×17iST160,162..5F198508-198708

sub90105-08430

main90105-08064×16iAT160..5F198508-198708

sub90105-08353

main90105-08126×17iST165198610-198708

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iST160,162..5F198508-198708

main90341-18006iAT160,ST165..5F198508-198708

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAT160,ST16#..5F198508-198708

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT160,ST16#..5F198508-198708

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAT160,ST16#..5F198508-198708

33111CASE, MANUAL TRANSMISSION

main33101-20030iST165198610-198708

sub33101-20040

sub90560-10019

sub91511-61016

main33111-12170iAT160..5F198508-198608

main33111-16040iAT160..5F198608-198708

sub33111-16070

sub90109-12073

main33111-32013iST16#..5F198508-198604

sub33151-32011

main33111-32014iST160,162..5F198604-198708

sub33111-20140

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×6iAT160,ST16#..5F198508-198708

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAT160..5F198508-198708

sub90311-34017

main90311-50010iST165198610-198708

sub90311-50027

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iAT160..5F198508-198708

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-17010iAT160..5F198508-198708

sub33117-16010

main33117-20020iST165198610-198708

main33117-32011iST160,162..5F198508-198708

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAT160,ST16#..5F198508-198708

sub91641-H0820

33121GCOVER, MANUAL TRANSMISSION CASE

main33102-12020iAT160..5F198508-198708

sub33102-12021

main33102-20040iST165198610-198708

sub33102-33010

main33102-32011iST160,162..5F198508-198708

sub33102-32012

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089×8iST16#..5F198508-198708

sub90105-08273

main91611-60835×9iAT160..5F198508-198708

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAT160..5F198508-198708

main33124-20020iST165198610-198708

main33124-32010iST16#..5F198508-198510

main33124-32011iST160,162..5F198510-198708

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAT160..5F198508-198708

main33124-20030iST165198610-198708

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60818iST165198610-198708

sub90119-08830

main91611-60820×2iAT160..5F198508-198708

sub91611-G0820

main91651-60618iST160,162..5F198508-198708

33131DRETAINER, BEARING, FRONT

main33131-12070iAT160..5F198508-198708

sub33131-12071

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028×3iAT160..5F198508-198708

4301

9161160816

main91611-60816

9161161020

main91611-61020

22 parts on this diagram · 3 diagrams in section
