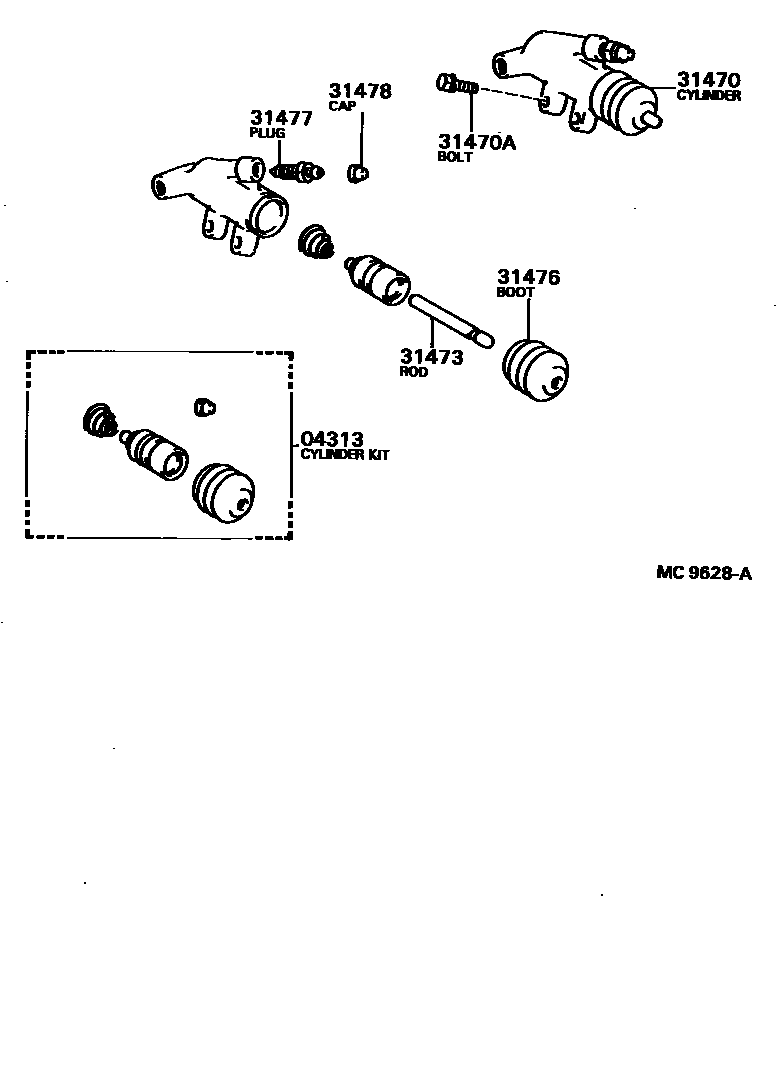

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12010198508-198708

main04313-22020198508-198708

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12041198508-198708

main31470-32020198508-198708

main31470-32030198610-198708

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822198508-198708

main91611-60825198508-198708

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010198508-198708

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010198508-198708

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010198508-198708

main47547-60020198508-198708

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010198508-198708

7 parts on this diagram · 2 diagrams in section
