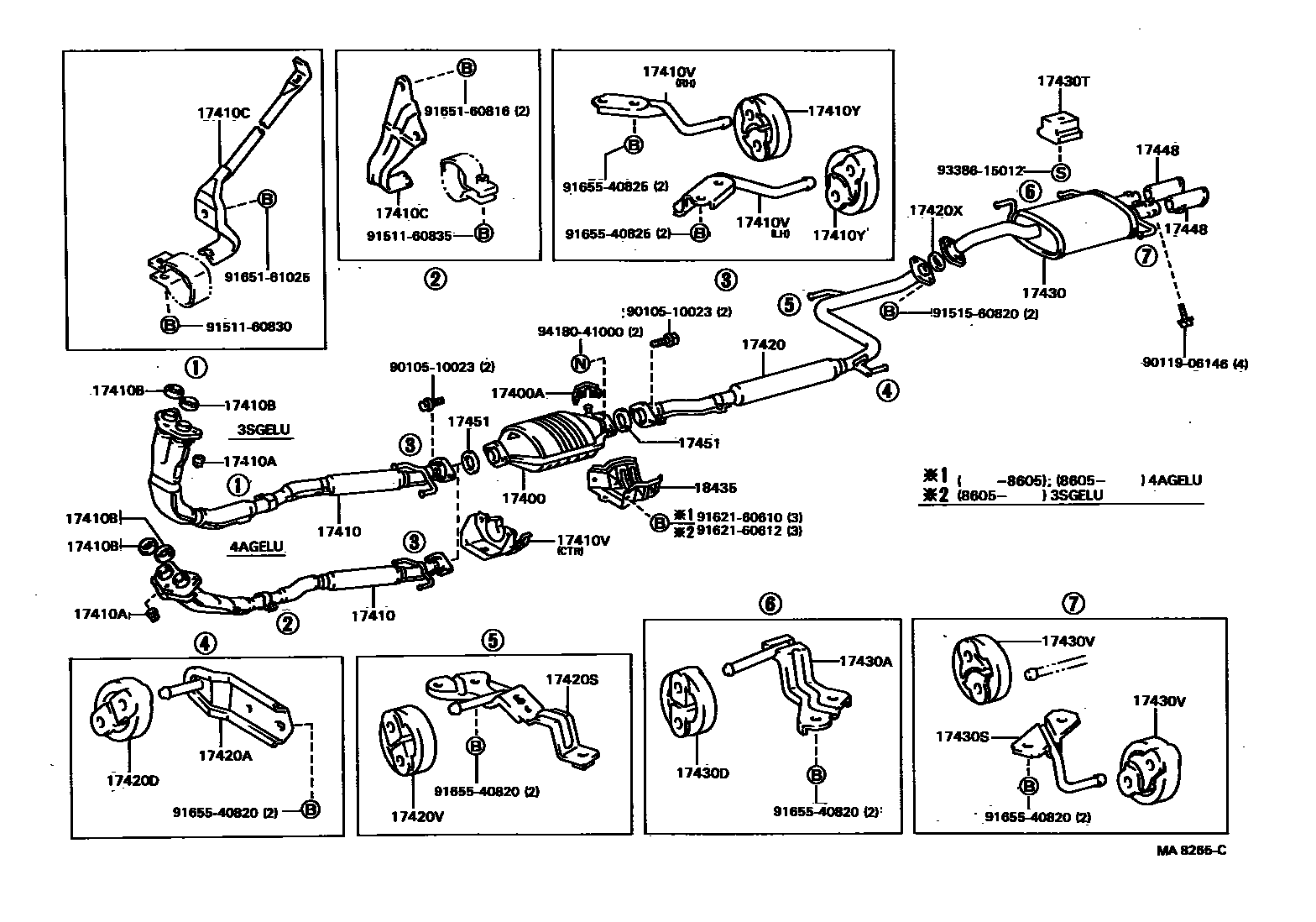

EXHAUST PIPE

0001 1 0002 1 0003 1

17400CONVERTER ASSY, W/CATALYST

main18450-16080i4AGELU..AT160198508-198708

main18450-74050i3SGELU..ST162198508-198708

17400AFLANGE, THERMOSENSER INLET

main18491-16010i4AGELU..AT160198508-198708

main18491-63010i3SGELU..ST162198508-198708

17410PIPE ASSY, EXHAUST, FRONT

main17410-16270i4AGELU..AT160198508-198708

main17410-63110i1SILU..ST160198508-198708

main17410-74090i3SGELU..ST162198508-198708

main17410-74200i3SGTE..ST165198610-198708

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i4AGELU,1SILU,3SG#..AT160,ST16#198508-198708

17410BGASKET, EXHAUST PIPE

main90917-06004×2i4AGELU,1SILU,3SGELU..AT160,ST160,162198508-198708

main90917-06013i3SGTE..ST165198610-198708

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17504-63010i1SILU..ST160198508-198512

RH

main17504-74010i1SILU..ST160198611-198702

RH,PLANT.A51-A54

main17504-74030i1SILU..ST160198611-198702

RH,PLANT.A41-A42

main17504-74040i1SILU..ST160198702-198708

RH

main17505-63020i1SILU..ST160198508-198512

LH

main17505-74010i1SILU..ST160198611-198702

LH,PLANT.A51-A54

main17505-74020i1SILU..ST160198702-198708

LH

main17506-74020i3SGELU..ST162198508-198708

main17571-16170i4AGELU..AT160198508-198708

main17571-63040i1SILU..ST160198508-198708

CTR

main17571-74060i3SGTE..ST165198610-198708

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17503-16090i4AGELU..AT160198508-198708

CCO SUPPORT

main17503-74020i3SGELU..ST162198508-198708

CCO SUPPORT

main17504-63010i4AGELU,3SGELU..AT160,ST162198508-198512

RH

main17504-74010i4AGELU,3SGELU..AT160,ST162198512-198611

RH

main17504-74020i3SGTE..ST165198610-198708

main17504-74030i4AGELU,3SGELU..AT160,ST162198611-198702

RH,PLANT.A41-A42

main17504-74040i4AGELU,3SGELU..AT160,ST162198702-198708

RH

main17505-63020i4AGELU,3SGELU..AT160,ST162198508-198512

LH

main17505-74010i4AGELU,3SGELU..AT160,ST162198611-198702

LH.PLANT.A51-A54

main17505-74020i4AGELU,3SGELU..AT160,ST162198702-198708

LH

main17507-74010i1SILU..ST160198508-198708

17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)

main17561-74110i3SGTE..ST165198610-198708

main17565-16020×2i4AGELU,3SGELU..AT160,ST162..5F198508-198604

main17565-63060i1SILU..ST160; 4AGELU,3SGELU..AT160,ST162..4FC198508-198708

main17565-63071×2i4AGELU,3SGELU..AT160,ST162..5F198604-198708

17420PIPE ASSY, EXHAUST, CENTER

main17420-16060i4AGELU..AT160198508-198708

main17420-74100i3SGELU..ST162198508-198708

main17420-74180i3SGTE..ST165198610-198708

17420ABRACKET, EXHAUST PIPE CENTER, FRONT

main17506-74010i4AGELU,3SGELU..AT160,ST162198508-198708

17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT

main17565-63060i4AGELU,3SGELU..AT160,ST162198508-198708

17420SBRACKET, EXHAUST PIPE CENTER, REAR

main17507-74010i4AGELU,3SGELU..AT160,ST162198508-198708

main17573-74010i3SGTE..ST165198610-198708

17420VBOLT OR RING, EXHAUST PIPE CENTER, REAR

main17565-63060i4AGELU,3SGELU..AT160,ST162198508-198708

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06012i4AGELU,3SGELU..AT160,ST162198508-198708

main90917-06032i3SGTE..ST165198610-198708

17430PIPE ASSY, EXHAUST, TAIL

main17430-16310i4AGELU,3SGELU..AT160,ST162198508-198606

main17430-63070i1SILU..ST160198508-198708

main17430-74080i4AGELU,3SGELU..AT160,ST162198606-198708

main17430-74250i3SGTE..ST165198610-198708

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17508-74010i4AGELU,1SILU,3SGELU..AT160,ST160,162198508-198708

main17508-74020i3SGTE..ST165198610-198708

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-63020i4AGELU,1SILU,3SGELU..AT160,ST160,162..4FC198508-198708

main17565-63030i4AGELU,1SILU,3SGELU..AT160,ST160,162..5F198508-198708

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17509-74010i4AGELU,1SILU,3SGELU..AT160,ST160,162198508-198708

main17509-74020i3SGTE..ST165198610-198708

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main17591-36010i4AGELU,1SILU,3SG#..AT160,ST16#198508-198708

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main17565-16080×2i4AGELU,1SILU,3SGELU..AT160,ST160,162..5F; 4AGELU,3SGELU..AT160,ST162198508-198708

main17565-63030×2i4AGELU,1SILU,3SGELU..AT160,ST160,162..4FC198508-198708

17448BAFFLE, TAILPIPE

main17448-74030×2i4AGELU,3SGELU..AT160,ST162198508-198708

main17448-74040×2i3SGTE..ST165198610-198708

17451GASKET, EXHAUST PIPE

main90917-06004i1SILU..ST160198508-198708

main90917-06012×2i4AGELU..AT160198508-198708

main90917-06031i3SGELU..ST162198508-198708

FR

main90917-06032i3SGELU..ST162198508-198708

RR

18435PROTECTOR, CATALYTIC CONVERTER

main18436-63010i4AGELU..AT160198508-198708

main18436-74010i3SGELU..ST162198508-198605

main18436-74020i3SGELU..ST162198605-198708

9010510023

main90105-10023

9011906146

main90119-06146

9151160830

main91511-60830

9151160835

main91511-60835

9151560820

main91515-60820

9162160610

main91621-60610

9162160612

main91621-60612

9165160816

main91651-60816

9165161025

main91651-61025

9165540820

main91655-40820

9165540825

main91655-40825

9338615012

main93386-15012

9418041000

main94180-41000

36 parts on this diagram · 3 diagrams in section
