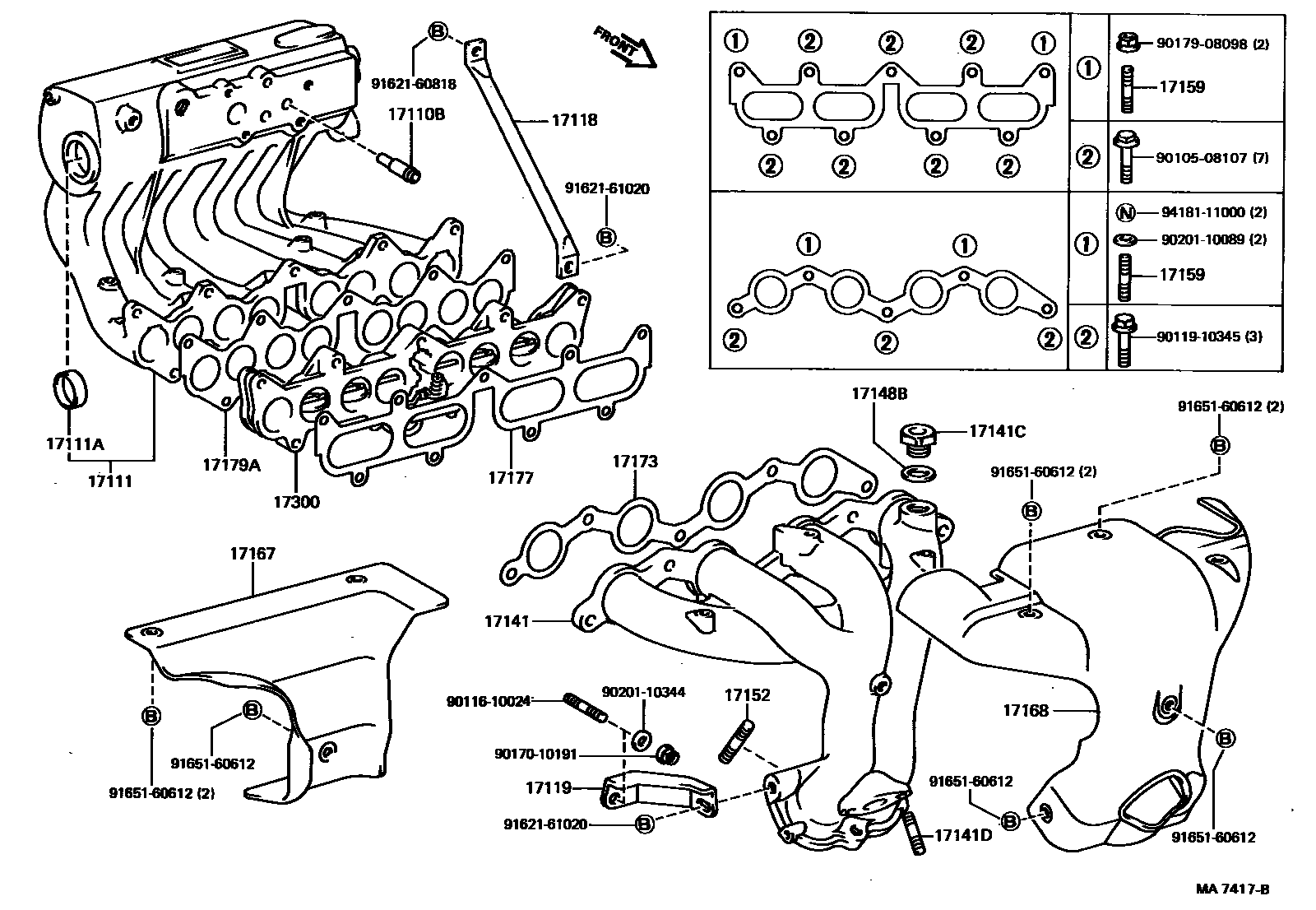

MANIFOLD
17110BUNION(FOR VENTILATION HOSE TO MANIFOLD)
17111MANIFOLD, INTAKE
17111APLUG, NO.1
17118STAY, MANIFOLD
17119STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17141CPLUG, W/HEAD STRAIGHT SCREW
17141DBOLT, STUD(FOR OXYGEN SENSOR)
*54
*53
17148PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17148BGASKET, EGR INLET
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD SIDE
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD SIDE
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
*54
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
*53
17179AGASKET, INTAKE MANIFOLD, NO.2
*53
*54
17300VALVE ASSY, INTAKE AIR CONTROL
9010508107
main90105-08107
9011610024
main90116-10024
9011910345
main90119-10345
9017010191
main90170-10191
9017908098
main90179-08098
9020110089
main90201-10089
9020110344
main90201-10344
9162160818
main91621-60818
9162161020
main91621-61020
9165160612
main91651-60612
9418111000
main94181-11000
29 parts on this diagram · 5 diagrams in section
