WATER PUMP

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

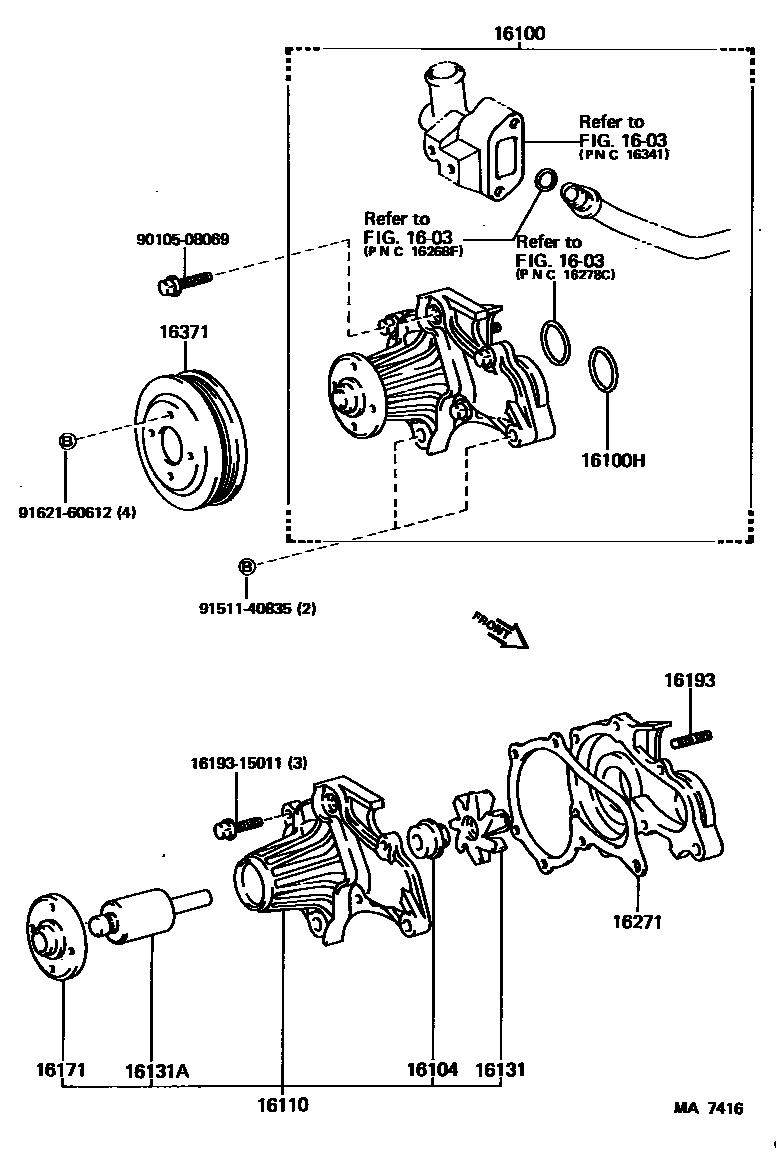

16100PUMP ASSY, ENGINE WATER

main16100-19115i4AGELU..AT160198508-198708

main16100-69075i1SILU..ST160198508-198708

main16100-79045i3SGELU..ST162198708-198708

*54

main16100-79085i3SGTE..ST165198610-198708

main16100-79095i3SGELU..ST162198708-198708

*53

16100HRING, O(FOR WATER PUMP)

main90301-37005i3SGTE..ST165198610-198708

main96711-24035i4AGELU..AT160198508-198708

main96711-24037i1SILU..ST160; 3SGELU..ST162198508-198708

*53

16104SEAL SET, WATER PUMP

main16104-15020i4AGELU..AT160198508-198708

16110PUMP ASSY, WATER, W/O COUPLING

main16110-16020i4AGELU..AT160198508-198708

16131ROTOR, WATER PUMP

main16131-16010i4AGELU..AT160198508-198708

16131ABEARING, WATER PUMP

main90369-35021i4AGELU..AT160198508-198708

16171SEAT, WATER PUMP PULLEY

main16171-15020i4AGELU..AT160198508-198708

16193BOLT, STUD(FOR WATER PUMP COVER)

main90029-01500×2i1SILU,3SGELU..ST160,162198508-198708

main92122-60816×2i4AGELU..AT160198508-198708

16271GASKET, WATER PUMP

main16124-15010i4AGELU..AT160198508-198708

16371PULLEY, FAN

main16371-16030i4AGELU..AT160198508-198708

1619315011BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011

9010508069

main90105-08069

9151140835

main91511-40835

9162160612

main91621-60612

15 parts on this diagram · 3 diagrams in section
