SHORT BLOCK ASSEMBLY

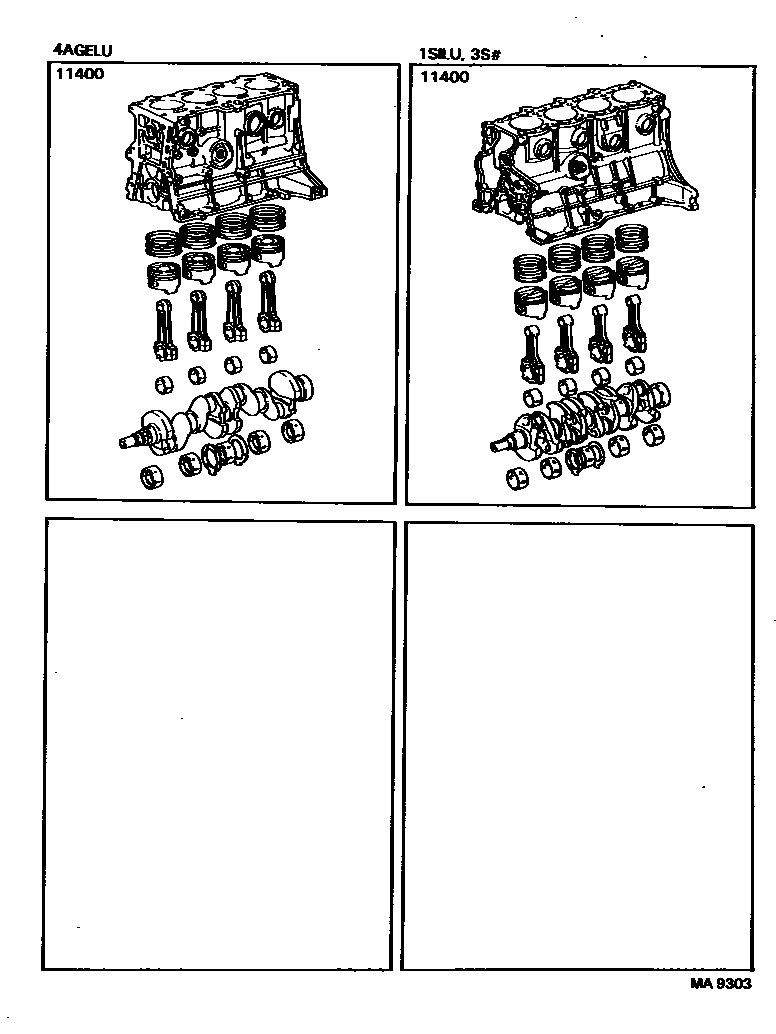

Parts diagram

11400BLOCK ASSY, SHORT

main11400-16040i198508-198708

main11400-63010i198508-198607

main11400-63011i198607-198708

main11400-88360i198508-198708

main11400-88380i198610-198708

1 parts on this diagram · 1 diagram in section
