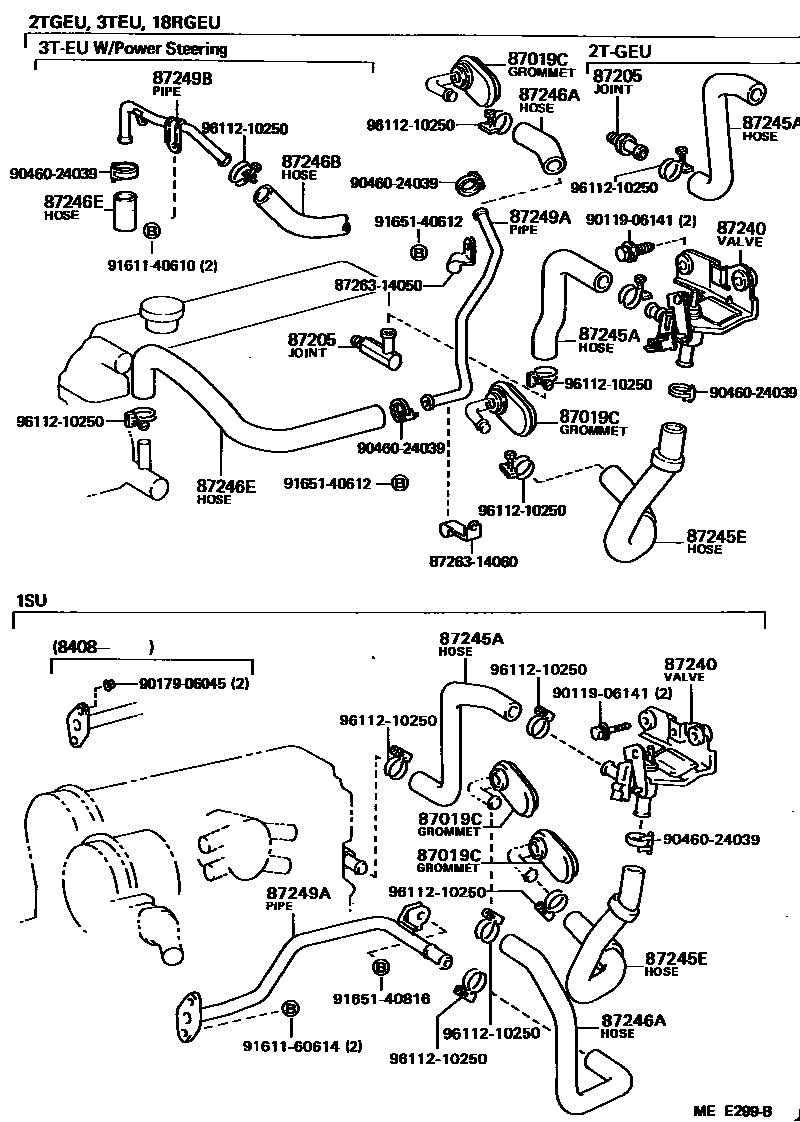

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0004 1 0005 1 0006 1

87019CGROMMET, HEATER HOSE

main90480-01015×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-14010iTA61198107-198308

main87251-14040iTA63,64..GTS,GTT198210-198507

main87251-20100iTA63..ST,SX198107-198308

main87251-24010iMA63198308-198512

main87251-30200iMA61198308-198512

main90404-54004iRA63198107-198208

87240VALVE ASSY, HEATER WATER

main87240-14110iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main88670-14060iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

W/*AAC

87245AHOSE, HEATER WATER, INLET A

main87209-24020iGA61..G,L,S198107-198512

main87245-14770iRA63,TA63..GT,ST,SX198107-198308

main87245-14780iTA61198107-198308

main87245-14800iSA60198107-198507

main87245-1B110iTA63,64..GTS,GTT198210-198507

main87245-1B120iGA61..GT198208-198501

main87245-1B121iGA61..GT198501-198512

main87245-1B130iAA63198308-198507

main87245-24040iMA61198107-198512

main87245-24070iMA63198202-198308

main87245-24120iMA63198308-198512

87245EHOSE, HEATER WATER, INLET E

main87245-14740iRA63,SA60,TA61,63..GT,GTR,ST,SV,SX198107-198507

main87245-14750iGA61,MA6#198107-198512

main99552-30100iAA63,TA63,64..GT,GTS,GTT198210-198408

main99556-30055iAA63,TA63198408-198507

87246AHOSE, HEATER WATER, OUTLET A

main87245-14790iSA60198107-198304

main87245-1B040iRA63,TA61,63..GT,GTR,ST,SX198107-198308

main87245-1B100iTA63,64..GTS,GTT198210-198507

main87245-1B140iAA63198308-198507

main87245-20600iSA60198304-198507

main87245-24030iGA61..G,L,S198107-198507

main87245-24050iGA61,MA61..GT198107-198512

main87245-24100iMA63198202-198512

87246BHOSE, HEATER WATER, OUTLET B

main99552-30500iTA63..ST,SX198107-198308

*H,L=360,W/POWER STEERING

87246EHOSE, HEATER WATER, OUTLET E

main87245-14700iTA63..ST,SX198107-198308

W/POWER STEERING

main87245-1B050iTA63..ST,SX198107-198308

main87245-1B080iTA63,64..GTS,GTT198210-198507

main87245-24060iGA61,MA61..GT198107-198512

main87245-24110iMA63198202-198512

main99552-30500iRA63; TA61198107-198208

*H,L=440; *H,L=480

87249APIPE, HEATER WATER OUTLET, A

main87208-14110iSA60198107-198304

main87208-14200iTA63,64..GTS,GTT198210-198507

main87208-14270iSA60198308-198507

main87208-20160iSA60198304-198308

main87208-22010iGA61198107-198208

main87208-22011iGA61198208-198512

main87248-14090iMA6#198107-198512

main87248-14170iRA63,TA61,63..GT,GTR,ST,SX198107-198308

87249BPIPE, HEATER WATER OUTLET, B

main87208-14190iTA63..ST,SX198107-198308

W/POWER STEERING

main87248-14090iGA61..GT198208-198512

8726314050BRACKET, HEATER WATER PIPE, NO.1

main87263-14050

8726314060BRACKET, HEATER WATER PIPE, NO.1

main87263-14060

9011906141

main90119-06141

9017906045

main90179-06045

9046024039

main90460-24039

9161140610

main91611-40610

9161160614

main91611-60614

9165140612

main91651-40612

9165140816

main91651-40816

9611210250

main96112-10250

20 parts on this diagram · 5 diagrams in section
