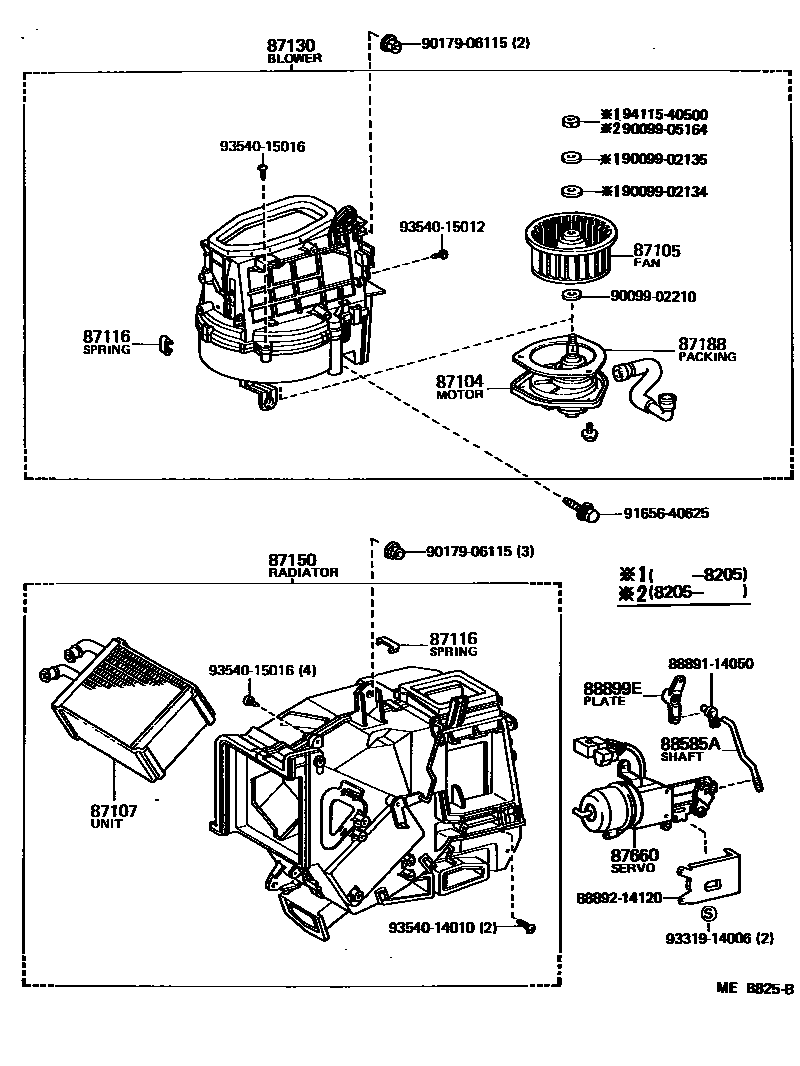

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14030iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-14100iAA63198308-198507

main87107-14110iRA63,SA60,TA6#198107-198507

main87107-24010iGA61,MA6#198107-198512

87116SPRING, HEATER CASE FASTENING

main87116-14010×10iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

87130BLOWER ASSY, HEATER, FRONT

main87130-14070iGA61,MA6#,RA63,SA60,TA6#198107-198204

main87130-14071iAA63,GA61,MA6#,RA63,SA60,TA6#198204-198512

87150RADIATOR ASSY, HEATER

main87150-14150iAA63198308-198507

main87150-14160iRA63,SA60,TA6#198107-198507

main87150-14190iGA61,MA6#198107-198512

87188PACKING, HEATER BLOWER MOTOR

main87127-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

87660SERVO ASSY, AIR CONDITIONER

main88660-14050iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

W/*AAC

88585ASHAFT, HEATER AIR DAMPER

main88585-14050iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

W/*AAC

88899EPLATE, HEATER AIR DAMPER SHAFT

main88899-14170iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

W/*AAC

8889114050PACKING (FOR COOLER)

main88891-14050

8889214120BRACKET, COOLER EVAPORATOR MOUNTING

main88892-14120

9009902134

main90099-02134

9009902135

main90099-02135

9009902210

main90099-02210

9009905164

main90099-05164

9017906115

main90179-06115

9165640625

main91656-40625

9331914006

main93319-14006

9354014010

main93540-14010

9354015012

main93540-15012

9354015016

main93540-15016

9411540500

main94115-40500

23 parts on this diagram · 1 diagram in section
