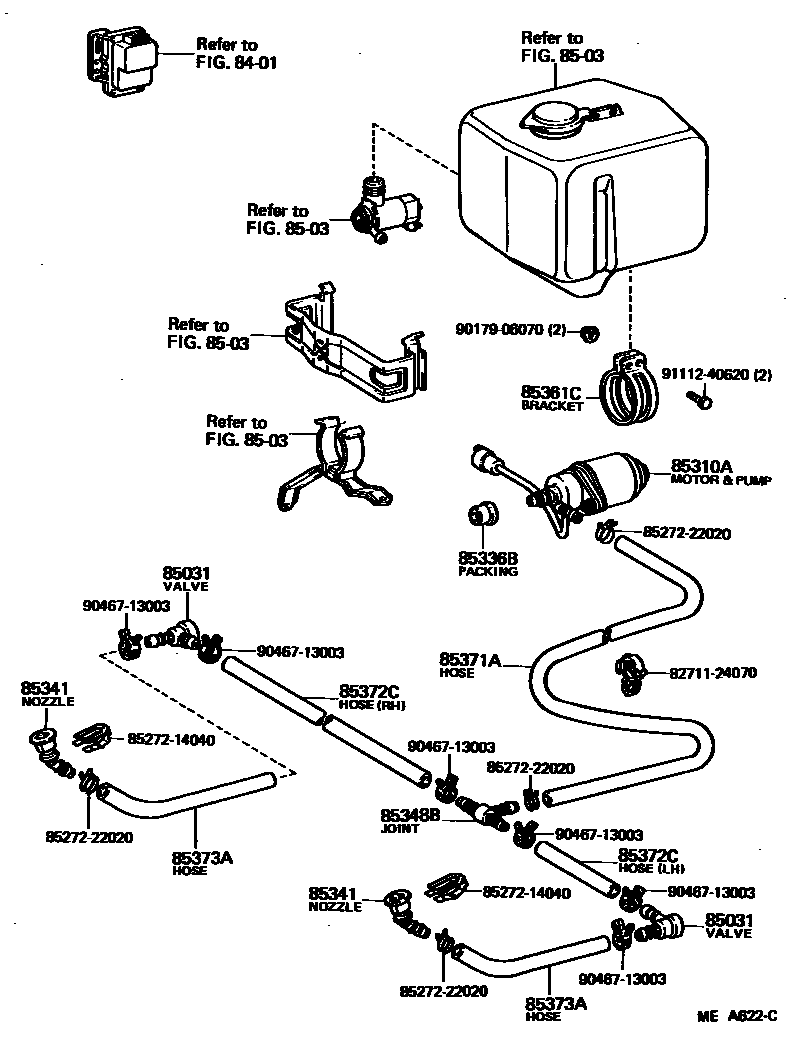

HEADLAMP CLEANER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020×2iGA61,MA61..G,GT198107-198512

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85310-22070iGA61,MA61..G,GT198107-198512

85336BPACKING, HEADLAMP CLEANER WASHER

main85336-10010iGA61,MA61..G,GT198107-198512

85341NOZZLE, HEADLAMP CLEANER WASHER

main85035-14260×2iGA61,MA61..G,GT198107-198512

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85352-12010iGA61,MA61..G,GT198107-198512

85361CBRACKET, WASHER

main85361-14100iGA61,MA61..G,GT198107-198512

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main85271-14120iGA61,MA61..G,GT198107-198512

85372CHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE)

main90445-14042iGA61,MA61..G,GT198107-198512

main90445-14059iGA61,MA61..G,GT198107-198512

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main90445-14046×2iGA61,MA61..G,GT198107-198512

8271124070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24070

8527214040CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-14040

8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-22020

9017906070

main90179-06070

9046713003

main90467-13003

9111240620

main91112-40620

17 parts on this diagram · 1 diagram in section
