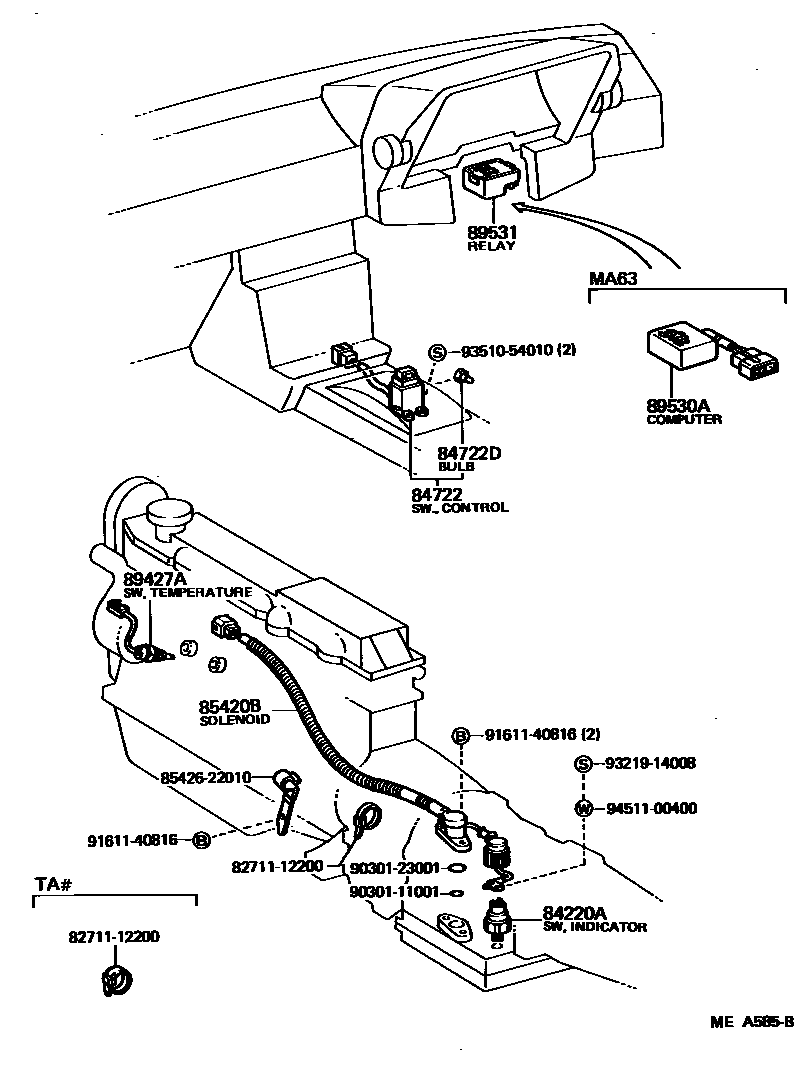

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iGA61,MA6#,SA60,TA63..4FC198107-198308

84722SWITCH, TRANSMISSION CONTROL

main84722-14060iGA61,MA6#,SA60,TA63..4FC198107-198308

84722DBULB, TRANSMISSION CONTROL SWITCH

main90981-11024iGA61,MA6#,SA60,TA63..4FC198107-198308

85420BSOLENOID ASSY, TRANSMISSION

main85420-20040iSA60..4FC198507-198507

main85420-22040iGA61,MA6#,SA60..4FC198107-198308

89427ASWITCH, TEMPERATURE

main89427-14050iSA60..4FC198107-198507

MARK=50B

main89428-14040iTA63..4FC198107-198507

MARK=50B

main89428-30050iGA61,MA6#..4FC198107-198308

MARK=70B

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-14010iMA63198202-198512

89531RELAY, TRANSMISSION CONTROL

main89531-14050iGA61,SA60,TA63..4FC198308-198512

main89531-22030iGA61,MA61,SA60,TA63..4FC198107-198308

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8542622010CLAMP, OVER DRIVE SOLENOID

main85426-22010

9030111001

main90301-11001

9030123001

main90301-23001

9161140816

main91611-40816

9321914008

main93219-14008

9351054010

main93510-54010

9451100400

main94511-00400

15 parts on this diagram · 1 diagram in section
