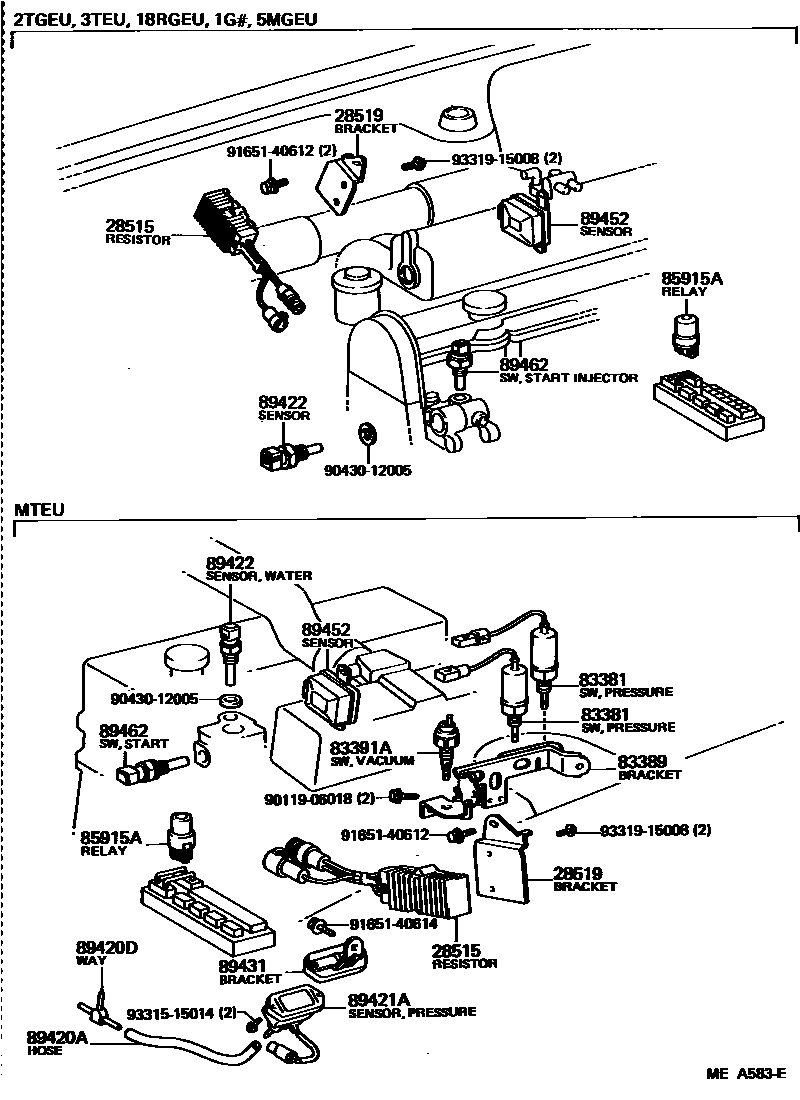

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0003 1 0004 1 0006 1

28515RESISTOR, SOLENOID

main28515-26040i18RGEU,2TGEU,3TEU..RA63,TA61,63198107-198308

main28515-43010i1G#,5MGEU,MTEU..GA61,MA6#198107-198501

28519BRACKET, SOLENOID RESISTOR

main28519-24010i1GEU..GA61198107-198512

main28519-24020i5MGEU,MTEU..MA6#198501-198512

83381SWITCH, PRESSURE

main83381-30010iTA63198308-198507

P=100MMHG

main83381-30021iMA63198202-198308

P=620MMHG

main83381-30030iTA63,64..GTS,GTT198210-198507

P=500MMHG

83389BRACKET, PRESSURE SWITCH

main83389-14010iTA63,64..GTS,GTT198210-198507

main83389-24010iMA63198202-198308

83391ASWITCH, VACUUM

main83391-14080iTA63,64..GTS,GTT198210-198507

main83391-25010iMA63198202-198308

85915ARELAY, MAIN

main85915-14050iTA63,64..GTS,GTT198210-198507

NO.2

main90987-02004iAA63,GA61,MA6#,RA63,TA6#198107-198512

NO.1

89420AHOSE, VACUUM PRESSURE SENSOR

main95411-10030iMA63198202-198308

89420DWAY, 3(FOR TURBO PRESSURE SENSOR)

main90413-04001iMA63198202-198308

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-12020iGA61..GT198501-198512

main89421-14010iAA63198308-198507

main89421-14030iGA61..G,S198501-198512

89421ASENSOR, TURBO PRESSURE

main89421-22010iMA63198202-198308

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iAA63,GA61,MA6#,RA63,TA6#198107-198512

89431BRACKET, TURBO PRESSURE

main89431-24010iMA63198202-198308

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12010iGA61..GT198208-198306

main89452-14010iRA63198107-198208

main89452-14020iMA61..5F198308-198512

main89452-14030iTA63,64..GTS,GTT198210-198507

main89452-14040iMA61..4FC198308-198512

main89452-22010iGA61..G,S198308-198501

main89452-28010iGA61198501-198505

main89452-28040iGA61198505-198512

main89452-30040iGA61..GT198306-198501

89462SWITCH, START INJECTOR TIME

main89462-30011iMA63,RA63,TA6#198107-198308

main89462-40010iGA61,MA61198107-198308

9011906018

main90119-06018

9043012005

main90430-12005

9165140612

main91651-40612

9165140614

main91651-40614

9331515014

main93315-15014

9331915008

main93319-15008

20 parts on this diagram · 4 diagrams in section
