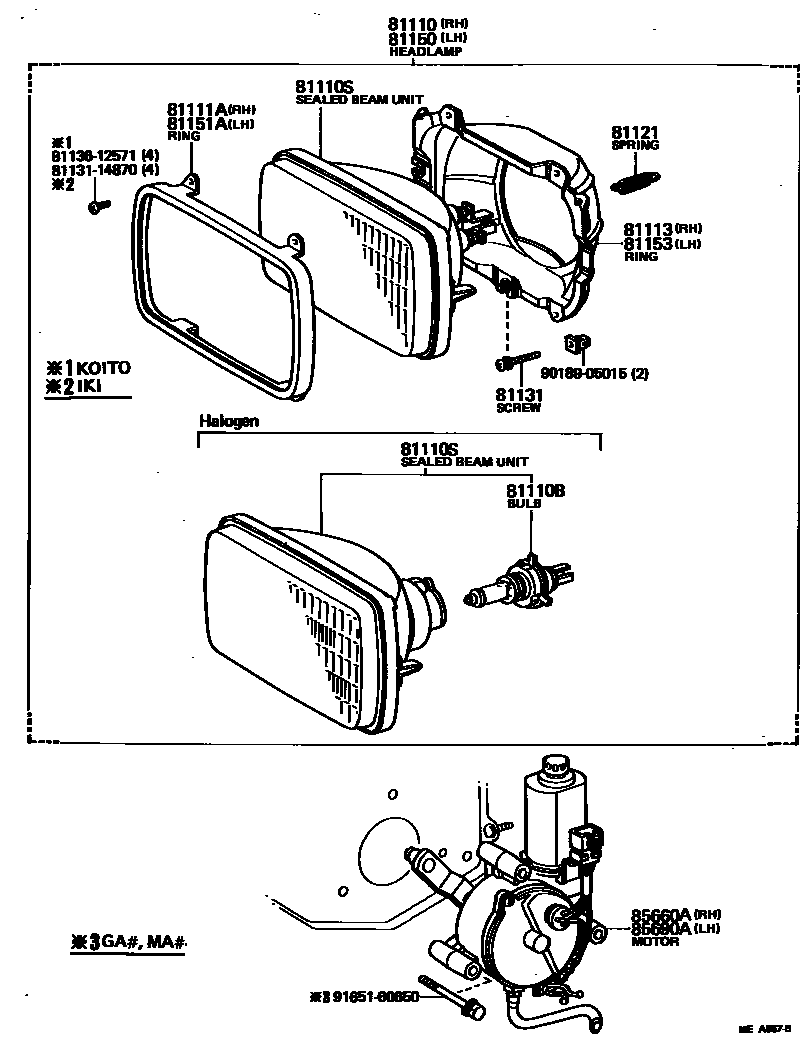

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-80130iSA60,TA63..ST,SV198107-198408

KOITO

main81110-80132iSA60,TA63..ST,SV198107-198408

IKI

main81110-80133iRA63,TA6#..GT,GTR,GTS,GTT,SX198107-198308

HALOGEN

main81110-80349iAA63,SA60,TA63..GT,GTT,SX198308-198408

HALOGEN

main81110-80403iSA60..ST,SV198408-198507

IKI

main81110-80404iAA63,SA60,TA63..GT,GTT,SX198408-198507

HALOGEN

main81150-80127iGA61..L198107-198308

KOITO

main81150-80129iGA61..L198107-198308

IKI

main81150-80130iGA61,MA6#..G,GT,S198107-198308

HALOGEN

main81150-80346iGA61,MA6#198308-198408

HALOGEN

main81150-80396iGA61,MA6#198408-198512

HALOGEN

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iAA63,GA61,MA6#,RA63,SA60,TA6#..G,GT,GTR,GTS,GTT,S,SX198107-198512

81110SSEALED BEAM UNIT, NO.1

main90981-04001×2iGA61,SA60,TA63..L,ST,SV198107-198408

main90981-04002×2iGA61,SA60,TA63..L,ST,SV198107-198408

12V 65/55W,IKI

main90981-04010×2iGA61,MA6#,RA63,TA6#..G,GT,GTR,GTS,GTT,S,SX198107-198308

main90981-04021×2iAA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,SX198308-198408

12V 60/55W,HALOGEN

main90981-04029×2iSA60..ST,SV198408-198507

main90981-04030×2iAA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,SX198408-198512

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-14710iGA61,SA60,TA63..L,ST,SV198107-198408

IKI

main81111-16020iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

KOITO

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-14670iAA63,RA63,SA60,TA6#198107-198507

KOITO

main81113-14710iSA60,TA63..ST,SV198107-198408

IKI

main81153-14670iGA61,MA6#198107-198512

KOITO

main81153-14710iGA61..L198107-198308

IKI

81121SPRING, HEADLAMP TENSION

main81121-14670×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

KOITO

main81121-14710×2iGA61,SA60,TA63..L,ST,SV198107-198408

IKI

81131SCREW, HEADLAMP ADJUSTING

main81131-14670×4iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

KOITO

main81131-14710×4iGA61,SA60,TA63..L,ST,SV198107-198408

IKI

81150HEADLAMP ASSY, LH

main81110-80130iGA61..L198107-198308

KOITO

main81110-80132iGA61..L198107-198308

IKI

main81110-80133iGA61,MA6#..G,GT,S198107-198308

HALOGEN

main81110-80349iGA61,MA6#198308-198408

HALOGEN

main81110-80404iGA61,MA6#198408-198512

HALOGEN

main81150-80127iSA60,TA63..ST,SV198107-198408

KOITO

main81150-80129iSA60,TA63..ST,SV198107-198408

IKI

main81150-80130iRA63,TA6#..GT,GTR,GTS,GTT,SX198107-198308

HALOGEN

main81150-80346iAA63,SA60,TA63..GT,GTT,SX198308-198408

HALOGEN

main81150-80395iSA60..ST,SV198408-198507

IKI

main81150-80396iAA63,SA60,TA63..GT,GTT,SX198408-198507

HALOGEN

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-14710iGA61,SA60,TA63..L,ST,SV198107-198408

IKI

main81111-16020iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

KOITO

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-14670iGA61,MA6#198107-198512

KOITO

main81113-14710iGA61..L198107-198308

IKI

main81153-14670iAA63,RA63,SA60,TA6#198107-198507

KOITO

main81153-14710iSA60,TA63..ST,SV198107-198408

IKI

85660AMOTOR ASSY, LIGHT RETRACTOR, RH

main85660-14010iRA63,SA60,TA6#198107-198209

main85660-14011iSA60,TA6#198209-198308

main85660-14020iGA61,MA6#198107-198209

main85660-14021iGA61,MA6#198209-198308

main85660-14022iGA61,MA6#198308-198512

main85660-14030iAA63,SA60,TA63198308-198507

85690AMOTOR ASSY, LIGHT RETRACTOR, LH

main85690-14010iRA63,SA60,TA6#198107-198209

main85690-14011iSA60,TA6#198209-198308

main85690-14020iGA61,MA6#198107-198209

main85690-14021iGA61,MA6#198209-198308

main85690-14022iGA61,MA6#198308-198512

main85690-14030iAA63,SA60,TA63198308-198507

8113114870SCREW, HEADLAMP ADJUSTING

main81131-14870

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9018905015

main90189-05015

9165160650

main91651-60650

16 parts on this diagram · 1 diagram in section
