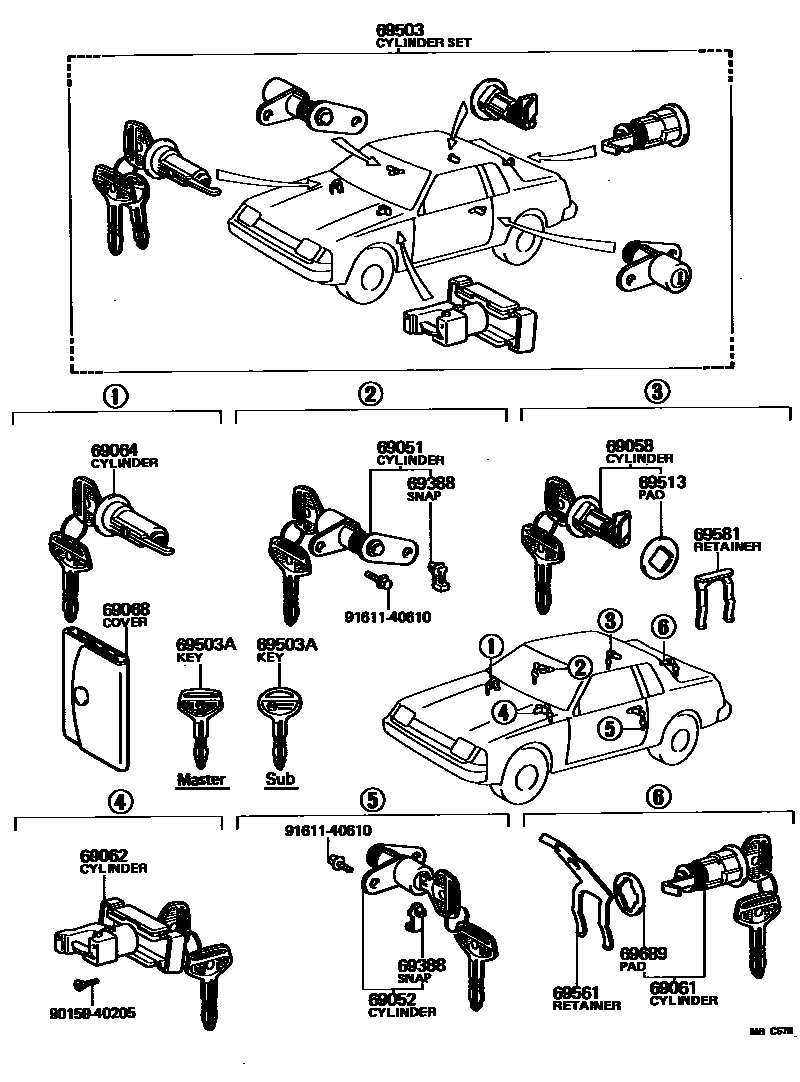

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-14070iGA61,MA6#,RA63,SA60,TA6#198107-198308

sub69051-14090

main69051-14071iAA63,SA60,TA63198308-198507

sub69051-14101

main69051-14110iGA61,MA6#198308-198512

sub69051-14101

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-14070iGA61,MA6#,RA63,SA60,TA6#198107-198308

sub69052-14090

main69052-14071iAA63,SA60,TA63198308-198507

sub69052-14091

main69052-14120iGA61,MA6#198308-198512

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-19135iGA61,MA6#,RA63,SA60,TA6#198107-198507

sub69058-14060

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-14230iGA61,MA6#198308-198512

main69055-19395iGA61,MA6#,RA63,SA60,TA61,63..LB198107-198507

sub69055-19565

main69055-19415iAA63,RA63,SA60,TA6#..CP198107-198507

sub69055-19575

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-14030-01iGA61,MA6#,RA63,SA60,TA6#198107-198507

BLACK,BLACK,TRIM2#

sub69056-20120

sub69056-14030

main69056-14030-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub69056-20120

sub69056-14030

main69056-14030-04iGA61,MA6#198107-198308

BLUE,BLUE,TRIM8#

sub69056-20120

sub69056-14030

main69056-14060-01iGA61,MA6#198308-198512

BLACK,BLACK,TRIM2#

sub69056-14050

sub69056-14060

main69056-14060-02iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub69056-14050

sub69056-14060

main69056-14060-04iGA61,MA6#198308-198512

BLUE,BLUE,TRIM8#

sub69056-14050

sub69056-14060

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-14050iGA61,MA6#,RA63,SA60,TA6#198107-198507

sub69057-14060

main69057-14070iGA61,MA6#198308-198512

sub69057-14080

69068COVER SUB-ASSY, KEY

main69555-20010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

69388SNAP, ROD(FOR DOOR LOCK)

main69759-24080iGA61,MA6#,RA63,SA60,TA6#198107-198308

RH

main69759-24090iGA61,MA6#,RA63,SA60,TA6#198107-198308

LH

main69759-30040iAA63,GA61,MA6#,SA60,TA63198308-198512

RH

main69759-30050iAA63,GA61,MA6#,SA60,TA63198308-198512

LH

69503CYLINDER SET, LOCK

main69005-14380iRA63,SA60,TA6#..CP198107-198308

main69005-14381iAA63,SA60,TA63..CP198308-198507

main69005-14390-01iGA61,MA6#198308-198512

BLACK,BLACK,TRIM2#

sub69005-14390

main69005-14390-02iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub69005-14390

main69005-14390-04iGA61,MA6#198308-198512

BLUE,BLUE,TRIM8#

sub69005-14390

main69005-14420-01iGA61,MA6#,RA63,SA60,TA61,63..LB198107-198308

BLACK,BLACK,TRIM2#

sub69005-14420

main69005-14420-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub69005-14420

main69005-14420-04iGA61,MA6#198107-198308

BLUE,BLUE,TRIM8#

sub69005-14420

main69005-14421iAA63,SA60,TA63..LB198308-198507

69503AKEY, BLANK

main90999-00066iAA63,SA60,TA63198107-198507

sub90999-00085

main90999-00068iGA61,MA6#,RA63,SA60,TA6#198107-198507

sub90999-00094

main90999-00095iGA61,MA6#198308-198512

MASTER KEY

main90999-00096iGA61,MA6#198308-198512

SUB KEY

sub90999-00094

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-14010iGA61,MA6#,RA63,SA60,TA6#198107-198507

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-14070iAA63,GA61,MA6#,RA63,SA60,TA61,63..LB198107-198512

main69561-14080iAA63,RA63,SA60,TA6#..CP198107-198507

69581RETAINER, FUEL FILLER LID CYLINDER

main69581-14010iGA61,MA6#,RA63,SA60,TA6#198107-198507

69689PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69685-12010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

9015940205

main90159-40205

9161140610

main91611-40610

16 parts on this diagram · 1 diagram in section
