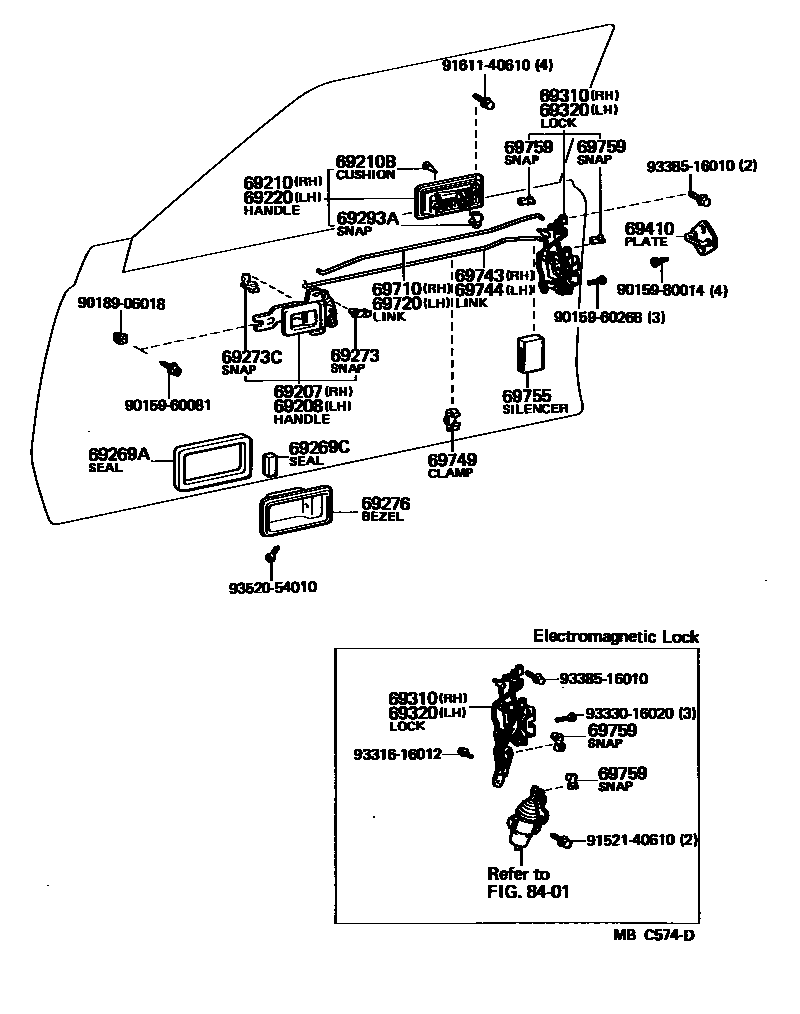

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-14050-01iGA61,MA61,RA63,SA60,TA6#198107-198108

BLACK,BLACK,TRIM2#

main69205-14050-02iGA61,MA61198107-198108

TERRA COTTA,RED/MAROON,TRIM3#

main69205-14050-04iGA61,MA61,RA63,SA60,TA6#..LB..(G,GT,L,S,ST,SX)198107-198108

BLUE,BLUE,TRIM8#

main69205-14050-06iRA63,SA60,TA6#..GT,ST,SX198107-198108

DARK BROWN,BROWN,TRIM4#

main69205-14060-01iGA61,MA6#,RA63,SA60,TA6#198108-198308

BLACK,BLACK,TRIM2#

main69205-14060-02iGA61,MA6#198108-198308

TERRA COTTA,RED/MAROON,TRIM3#

main69205-14060-04iGA61,MA6#,RA63,SA60,TA61,63..LB..(G,GT,L,S,ST,SX)198108-198308

BLUE,BLUE,TRIM8#

main69205-14060-06iRA63,SA60,TA61,63..GT,ST,SX198108-198308

DARK BROWN,BROWN,TRIM4#

main69205-14061-01iAA63,GA61,MA6#,SA60,TA63198308-198512

BLACK,BLACK,TRIM2#

main69205-14061-02iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main69205-14061-04iAA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX198308-198507

BLUE,BLUE,TRIM8#

main69205-14061-06iAA63,SA60,TA63..GT,GTT,ST,SX198308-198507

DARK BROWN,BROWN,TRIM4#

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-14050-01iGA61,MA61,RA63,SA60,TA6#198107-198108

BLACK,BLACK,TRIM2#

main69206-14050-02iGA61,MA61198107-198108

TERRA COTTA,RED/MAROON,TRIM3#

main69206-14050-04iGA61,MA61,RA63,SA60,TA6#..LB..(G,GT,L,S,ST,SX)198107-198108

BLUE,BLUE,TRIM8#

main69206-14050-06iRA63,SA60,TA6#..GT,ST,SX198107-198108

DARK BROWN,BROWN,TRIM4#

main69206-14060-01iGA61,MA6#,RA63,SA60,TA6#198108-198308

BLACK,BLACK,TRIM2#

main69206-14060-02iGA61,MA6#198108-198308

TERRA COTTA,RED/MAROON,TRIM3#

main69206-14060-04iGA61,MA6#,RA63,SA60,TA61,63..LB..(G,GT,L,S,ST,SX)198108-198308

BLUE,BLUE,TRIM8#

main69206-14060-06iRA63,SA60,TA61,63..GT,ST,SX198108-198308

DARK BROWN,BROWN,TRIM4#

main69206-14061-01iAA63,GA61,MA6#,SA60,TA63198308-198512

BLACK,BLACK,TRIM2#

main69206-14061-02iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main69206-14061-04iAA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX198308-198512

BLUE,BLUE,TRIM8#

main69206-14061-06iAA63,SA60,TA63..GT,GTT,ST,SX198308-198507

DARK BROWN,BROWN,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-14070iGA61,MA6#,RA63,SA60,TA6#198107-198308

main69210-14080iAA63,GA61,MA6#,SA60,TA63198308-198512

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-14070iGA61,MA6#,RA63,SA60,TA6#198107-198308

main69220-14080iAA63,GA61,MA6#,SA60,TA63198308-198512

69269ASEAL, DOOR INSIDE HANDLE NO.1(FOR FRONT DOOR)

main69269-14010iGA61,MA6#,RA63,SA60,TA6#198107-198308

COLD SPEC

main69269-14020iAA63,GA61,MA6#,SA60,TA63198308-198512

COLD SPEC

69269CSEAL, DOOR INSIDE HANDLE NO.2(FOR FRONT DOOR)

main69289-12010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

COLD SPEC

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-14050iGA61,MA6#,RA63,SA60,TA6#198107-198308

LH

main69759-20020iAA63,GA61,MA6#,SA60,TA63198308-198512

RH

main69759-20030iAA63,GA61,MA6#,SA60,TA63198308-198512

LH

main69759-24070iGA61,MA6#,RA63,SA60,TA6#198107-198308

RH

69273CSNAP, DOOR INSIDE HANDLE LINK

main69759-20060iAA63,GA61,MA6#,SA60,TA63198308-198512

LH

main69759-20070iAA63,GA61,MA6#,SA60,TA63198308-198512

RH

main69759-24030iGA61,MA6#,RA63,SA60,TA6#198107-198308

RH

main69759-24040iGA61,MA6#,RA63,SA60,TA6#198107-198308

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-14020-01iGA61,MA61,RA63,SA60,TA6#198107-198108

BLACK,BLACK,TRIM2#

main69277-14020-02iGA61,MA61198107-198108

TERRA COTTA,RED/MAROON,TRIM3#

main69277-14020-04iGA61,MA61,RA63,SA60,TA6#..LB..(G,GT,L,S,ST,SX)198107-198108

BLUE,BLUE,TRIM8#

main69277-14020-06iRA63,SA60,TA6#..GT,ST,SX198107-198108

DARK BROWN,BROWN,TRIM4#

main69277-14030-01iAA63,GA61,MA6#,RA63,SA60,TA6#198108-198512

BLACK,BLACK,TRIM2#

sub69277-14030

main69277-14030-02iGA61,MA6#198108-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub69277-14030

main69277-14030-04iGA61,MA6#,RA63,SA60,TA61,63..LB..(G,GT,L,S,ST,SX)198108-198512

BLUE,BLUE,TRIM8#

sub69277-14030

main69277-14030-06iAA63,RA63,SA60,TA61,63..GT,GTT,ST,SX198108-198507

DARK BROWN,BROWN,TRIM4#

sub69277-14030

main69277-14030-22iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub69277-14030

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iAA63,GA61,MA6#,SA60,TA63198308-198512

RH

main69293-12040iAA63,GA61,MA6#,SA60,TA63198308-198512

LH

main69293-16010iGA61,MA6#,RA63,SA60,TA6#198107-198308

LH

main69293-16020iGA61,MA6#,RA63,SA60,TA6#198107-198308

RH

69310LOCK ASSY, FRONT DOOR, RH

main69310-14180iGA61,MA61..G,GT198107-198108

W/SOLENOID LINK

main69310-14181iGA61,MA61..G,GT198108-198308

W/SOLENOID LINK

main69310-14182iGA61,MA61..G,GT198308-198512

W/SOLENOID LINK

main69310-14210iGA61,RA63,SA60,TA6#198107-198108

main69310-14211iGA61,MA63,RA63,SA60,TA6#198108-198308

main69310-14212iGA61..G,S;AA63,MA63,SA60,TA63198308-198512

69320LOCK ASSY, FRONT DOOR, LH

main69320-14150iGA61,MA61..G,GT198107-198108

W/SOLENOID LINK

main69320-14151iGA61,MA61..G,GT198108-198308

W/SOLENOID LINK

main69320-14152iGA61,MA61..G,GT198308-198512

W/SOLENOID LINK

main69320-14180iGA61,RA63,SA60,TA6#198107-198108

main69320-14181iGA61,MA63,RA63,SA60,TA6#198108-198308

main69320-14182iGA61..G,S;AA63,MA63,SA60,TA63198308-198512

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-12050iAA63,GA61,MA6#,SA60,TA63198308-198512

main69410-14040iGA61,MA6#,RA63,SA60,TA6#198107-198308

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-14060iGA61,MA61,RA63,SA60,TA6#198107-198108

main69711-14061iGA61,MA6#,RA63,SA60,TA6#198108-198308

main69711-14062iAA63,GA61,MA6#,SA60,TA63198308-198512

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-14060iGA61,MA61,RA63,SA60,TA6#198107-198108

main69712-14061iGA61,MA6#,RA63,SA60,TA6#198108-198308

main69712-14062iAA63,GA61,MA6#,SA60,TA63198308-198512

69743LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH

main69733-14040iGA61,MA6#,RA63,SA60,TA6#198107-198308

main69733-14041iAA63,GA61,MA6#,SA60,TA63198308-198512

69744LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH

main69734-14040iGA61,MA6#,RA63,SA60,TA6#198107-198308

main69734-14041iAA63,GA61,MA6#,SA60,TA63198308-198512

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12030iGA61,MA61,RA63,SA60,TA6#198107-198308

main69749-12040iAA63,GA61,MA6#,SA60,TA63198308-198512

69755SILENCER, FRONT DOOR LOCK LINK

main69759-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iAA63,GA61,MA6#,SA60,TA63198308-198512

OPEN LINK,LH

main69759-20050iAA63,GA61,MA6#,SA60,TA63198308-198512

OPEN LINK,RH

main69759-20080iAA63,GA61,MA6#,SA60,TA63198308-198512

LOCKING LINK,LH

main69759-20090iAA63,GA61,MA6#,SA60,TA63198308-198512

LOCKING LINK,RH

main69759-20100iGA61,MA61..G,GT198308-198512

RH,W/SOLENOID LINK

main69759-20110iGA61,MA61..G,GT198308-198512

LH,W/SOLENOID LINK

main69759-24010iGA61,MA61..G,GT198107-198308

RH,W/SOLENOID LINK

main69759-24020iGA61,MA61..G,GT198107-198308

LH,W/SOLENOID LINK

main69759-24050iGA61,MA6#,RA63,SA60,TA6#198107-198308

OPEN & LOCKING LINK,LH

main69759-24060iGA61,MA6#,RA63,SA60,TA6#198107-198308

OPEN & LOCKING LINK,RH

8401

9015960081

main90159-60081

9015960268

main90159-60268

9015980014

main90159-80014

9018906018

main90189-06018

9152140610

main91521-40610

9161140610

main91611-40610

9331616012

main93316-16012

9333016020

main93330-16020

9338516010

main93385-16010

9352054010

main93520-54010

32 parts on this diagram · 1 diagram in section
