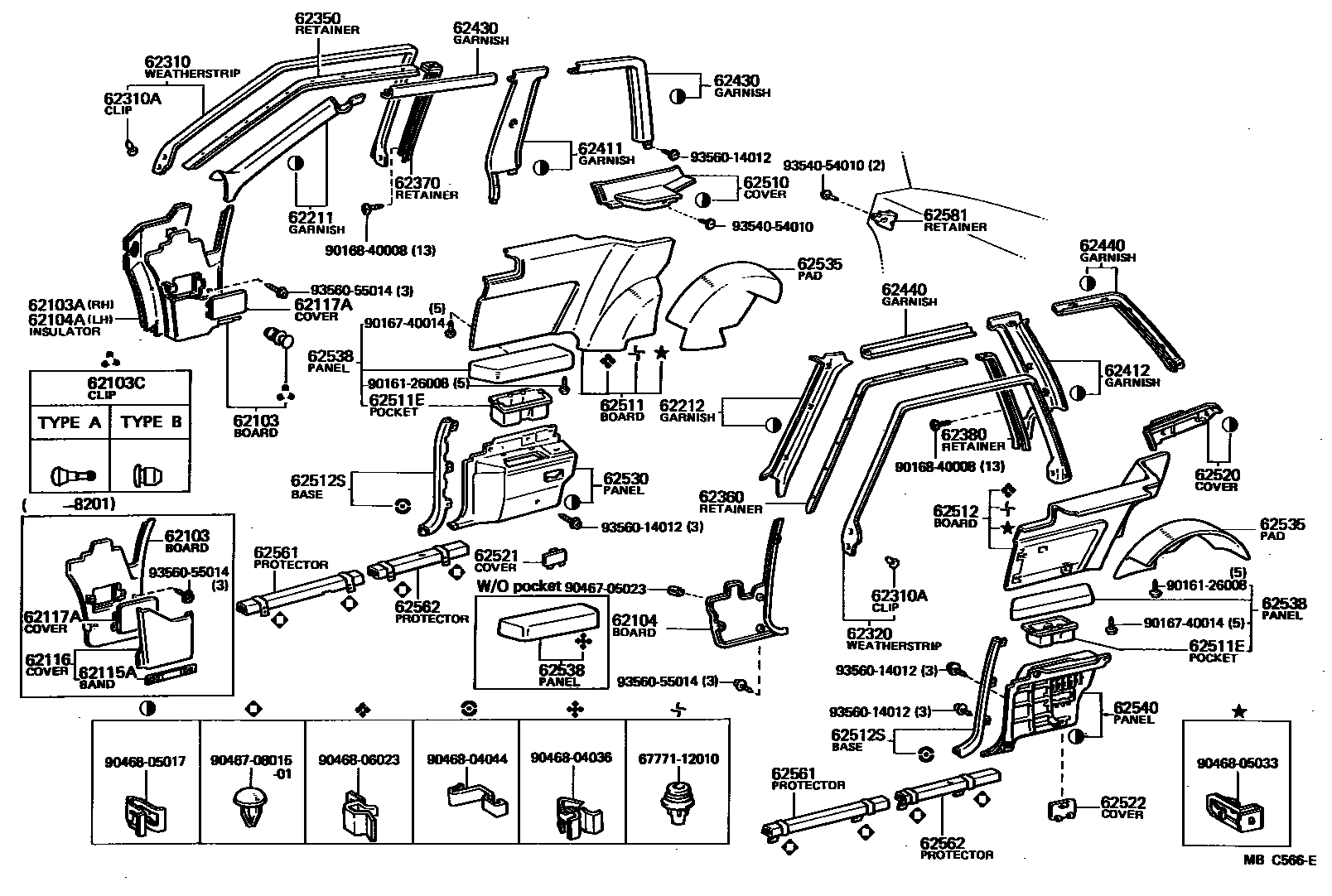

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-14130-01iGA61,MA61,RA63,SA60,TA6#198107-198201

BLACK,BLACK,TRIM2#

sub62101-14131

main62101-14130-02iGA61,MA61198107-198201

TERRA COTTA,RED/MAROON,TRIM3#

sub62101-14131

main62101-14130-04iGA61,MA61,RA63,SA60,TA6#..LB..(G,GT,L,S,ST,SX)198107-198201

BLUE,BLUE,TRIM8#

sub62101-14131

main62101-14130-06iRA63,SA60,TA6#..GT,ST,SX198107-198201

DARK BROWN,BROWN,TRIM4#

sub62101-14131

main62101-14131-01iAA63,GA61,MA6#,RA63,SA60,TA6#198201-198512

BLACK,BLACK,TRIM2#

sub62101-14131

main62101-14131-02iGA61,MA6#198201-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62101-14131

main62101-14131-04iGA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)198201-198512

BLUE,BLUE,TRIM8#

sub62101-14131

main62101-14131-06iTA63..ST,SX198201-198507

DARK BROWN,BROWN,TRIM4#

sub62101-14131

main62101-14131-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62101-14131

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-14030iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-05015-01iAA63,GA61,MA6#,RA63,SA60,TA6#198201-198512

TYPE A,BLACK,BLACK,TRIM2#

sub90467-05015

main90467-05015-02iGA61,MA6#198201-198308

TYPE A,TERRA COTTA,RED/MAROON,TRIM3#

sub90467-05015

main90467-05015-04iGA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)198201-198512

TYPE A,BLUE,BLUE,TRIM8#

sub90467-05015

main90467-05015-06iRA63,SA60,TA61..GT,ST198201-198507

TYPE A,DARK BROWN,BROWN,TRIM4#

sub90467-05015

main90467-05015-12iGA61,MA6#198308-198512

TYPE A,DEEP MAROON,RED/MAROON,TRIM3#

sub90467-05015

main90467-08031-01iAA63,GA61,MA6#,RA63,SA60,TA6#198201-198512

TYPE B,BLACK,BLACK,TRIM2#

sub90467-08031

main90467-08031-02iGA61,MA6#198201-198308

TYPE B,TERRA COTTA,RED/MAROON,TRIM3#

sub90467-08031

main90467-08031-04iTA63..LB..(ST,SX)198201-198512

TYPE B,BLUE,BLUE,TRIM8#

sub90467-08031

main90467-08031-06iTA63..ST,SX198201-198507

TYPE B,DARK BROWN,BROWN,TRIM4#

sub90467-08031

main90467-08031-12iGA61,MA6#198308-198512

TYPE B,DEEP MAROON,RED/MAROON,TRIM3#

sub90467-08031

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-14150-01iAA63,GA61,MA6#,SA60198107-198512

BLACK,BLACK,TRIM2#

sub62102-14150

main62102-14150-02iGA61,MA61198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62102-14150

main62102-14150-04iAA63,GA61,MA6#,SA60..G,GT,S,ST,SX198107-198512

BLUE,BLUE,TRIM8#

sub62102-14150

main62102-14150-06iRA63,SA60,TA61..GT,ST198107-198507

DARK BROWN,BROWN,TRIM4#

sub62102-14150

main62102-14150-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62102-14150

main62102-14190-01iMA63,TA63,64198202-198512

BLACK,BLACK,TRIM2#

sub62102-14190

main62102-14190-02iMA63198202-198512

TERRA COTTA,RED/MAROON,TRIM3#

sub62102-14190

main62102-14190-04iTA63198202-198512

BLUE,BLUE,TRIM8#

sub62102-14190

main62102-14190-06iTA63198308-198507

DARK BROWN,BROWN,TRIM4#

sub62102-14190

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-14030iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

62115ABAND, COWL SIDE TRIM

main62115-14010iGA61,MA61,RA63,SA60,TA6#198107-198201

62116COVER, COWL SIDE TRIM, LOWER

main62113-14040-01iGA61,MA61,RA63,SA60,TA6#198107-198201

BLACK,BLACK,TRIM2#

sub62101-14131

main62113-14040-02iGA61,MA61198107-198201

TERRA COTTA,RED/MAROON,TRIM3#

sub62101-14131

main62113-14040-04iGA61,MA61,RA63,SA60,TA6#..LB..(G,GT,L,S,ST,SX)198107-198201

BLUE,BLUE,TRIM8#

sub62101-14131

main62113-14040-06iRA63,SA60,TA6#..GT,ST,SX198107-198201

DARK BROWN,BROWN,TRIM4#

sub62101-14131

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-14010-01iGA61,MA6#,RA63,SA60,TA6#198107-198308

BLACK,BLACK,TRIM2#

sub62117-14010

main62117-14010-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62117-14010

main62117-14010-04iGA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)198107-198308

BLUE,BLUE,TRIM8#

sub62117-14010

main62117-14010-06iTA63..ST,SX198107-198308

DARK BROWN,BROWN,TRIM4#

sub62117-14010

main62117-14030-01iAA63,GA61,MA6#,SA60,TA63198308-198408

BLACK,BLACK,TRIM2#

sub62117-14030

main62117-14030-04iAA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX198308-198408

BLUE,BLUE,TRIM8#

sub62117-14030

main62117-14030-06iAA63,SA60,TA63..GT,GTT,ST,SX198308-198408

DARK BROWN,BROWN,TRIM4#

sub62117-14030

main62117-14030-12iGA61,MA6#198308-198408

DEEP MAROON,RED/MAROON,TRIM3#

sub62117-14030

main62117-14031-01iAA63,GA61,MA6#,SA60,TA63198408-198512

BLACK,BLACK,TRIM2#

main62117-14031-02iGA61,MA6#198408-198512

DEEP MAROON,DEEP MAROON,TRIM3#

main62117-14031-04iAA63,GA61,MA6#,SA60,TA63..G,GT,GTT,S,ST,SX198408-198512

BLUE,BLUE,TRIM8#

main62117-14031-06iAA63,SA60,TA63..GT,GTT,ST,SX198408-198507

DARK BROWN,DARK BROWN,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62210-14020-01iGA61,MA6#198107-198512

BLACK,BLACK,TRIM2#

main62210-14020-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main62210-14020-04iGA61,MA6#198107-198512

BLUE,BLUE,TRIM8#

main62210-14020-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main62211-14110-01iAA63,RA63,SA60,TA6#198107-198507

BLACK,BLACK,TRIM2#

sub62210-91D01

main62211-14110-04iTA63..LB..(ST,SX)198107-198507

BLUE,BLUE,TRIM8#

sub62210-91D01

main62211-14110-06iTA63..ST,SX198107-198507

DARK BROWN,BROWN,TRIM4#

sub62210-91D01

62212GARNISH, FRONT PILLAR, LH

main62212-14110-01iAA63,RA63,SA60,TA6#198107-198507

BLACK,BLACK,TRIM2#

sub62220-91D01

main62212-14110-04iTA63..LB..(ST,SX)198107-198507

BLUE,BLUE,TRIM8#

sub62220-91D01

main62212-14110-06iRA63,SA60,TA61..GT,ST198107-198507

DARK BROWN,BROWN,TRIM4#

sub62220-91D01

main62220-14020-01iGA61,MA6#198107-198512

BLACK,BLACK,TRIM2#

main62220-14020-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main62220-14020-04iGA61,MA6#198107-198512

BLUE,BLUE,TRIM8#

main62220-14020-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

62310WEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-14090iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main62381-14100iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

COLD SPEC

sub62381-14090

62310ACLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-30020iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

62320WEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-14090iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main62382-14100iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

COLD SPEC

sub62382-14090

62350RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP FRONT, RH

main62361-14040iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

62360RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP FRONT, LH

main62362-14040iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

62370RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, RH

main62371-14050iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

62380RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, LH

main62372-14050iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

62411GARNISH, CENTER PILLAR, RH

main62413-14030-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

sub62413-14030

main62413-14030-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62413-14030

main62413-14030-04iTA63..LB..(ST,SX)198107-198512

BLUE,BLUE,TRIM8#

sub62413-14030

main62413-14030-06iAA63,SA60,TA63..GT,GTT,ST,SX198107-198507

DARK BROWN,BROWN,TRIM4#

sub62413-14030

main62413-14030-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62413-14030

62412GARNISH, CENTER PILLAR, LH

main62414-14030-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

sub62414-14030

main62414-14030-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62414-14030

main62414-14030-04iGA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)198107-198512

BLUE,BLUE,TRIM8#

sub62414-14030

main62414-14030-06iTA63..ST,SX198107-198507

DARK BROWN,BROWN,TRIM4#

sub62414-14030

main62414-14030-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62414-14030

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62431-14040-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

FR,BLACK,BLACK,TRIM2#

main62431-14040-02iGA61,MA6#198107-198308

FR,TERRA COTTA,RED/MAROON,TRIM3#

main62431-14040-04iTA63..LB..(ST,SX)198107-198512

FR,BLUE,BLUE,TRIM8#

main62431-14040-06iRA63,SA60,TA61..GT,ST198107-198507

FR,DARK BROWN,BROWN,TRIM4#

main62431-14040-12iGA61,MA6#198308-198512

FR,DEEP MAROON,RED/MAROON,TRIM3#

main62451-14040-01iAA63,RA63,SA60,TA6#..CP198107-198507

RR,BLACK,BLACK,TRIM2#

sub62451-14040

main62451-14040-04iAA63,SA60,TA63..CP..(GT,GTT,ST,SX)198308-198507

RR,BLUE,BLUE,TRIM8#

sub62451-14040

main62451-14040-06iRA63,SA60,TA61..CP..(GT,ST)198107-198507

RR,DARK BROWN,BROWN,TRIM4#

sub62451-14040

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62431-14040-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

FR,BLACK,BLACK,TRIM2#

main62431-14040-02iGA61,MA6#198107-198308

FR,TERRA COTTA,RED/MAROON,TRIM3#

main62431-14040-04iGA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)198107-198512

FR,BLUE,BLUE,TRIM8#

main62431-14040-06iRA63,SA60,TA61..GT,ST198107-198507

FR,DARK BROWN,BROWN,TRIM4#

main62431-14040-12iGA61,MA6#198308-198512

FR,DEEP MAROON,RED/MAROON,TRIM3#

main62452-14030-01iAA63,RA63,SA60,TA6#..CP198107-198507

RR,BLACK,BLACK,TRIM2#

sub62452-14030

main62452-14030-04iAA63,SA60,TA63..CP..(GT,GTT,ST,SX)198308-198507

RR,BLUE,BLUE,TRIM8#

sub62452-14030

main62452-14030-06iRA63,SA60,TA61..CP..(GT,ST)198107-198507

RR,DARK BROWN,BROWN,TRIM4#

sub62452-14030

62510COVER ASSY, BACK WINDOW SIDE GARNISH, RH

main62471-14210-01iAA63,GA61,MA6#,RA63,SA60,TA61,63..LB198107-198512

BLACK,BLACK,TRIM2#

sub62471-14210

main62471-14210-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62471-14210

main62471-14210-04iTA63..LB..(ST,SX)198107-198512

BLUE,BLUE,TRIM8#

sub62471-14210

main62471-14210-06iRA63,SA60,TA61..LB..(GT,ST)198107-198507

DARK BROWN,BROWN,TRIM4#

sub62471-14210

main62471-14210-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62471-14210

main62571-14120-01iAA63,RA63,SA60,TA6#..CP198107-198507

BLACK,BLACK,TRIM2#

main62571-14120-04iAA63,SA60,TA63..CP..(GT,GTT,ST,SX)198308-198507

BLUE,BLUE,TRIM8#

main62571-14120-06iRA63,SA60,TA61..CP..(GT,ST)198107-198507

DARK BROWN,BROWN,TRIM4#

62511BOARD, QUARTER INSIDE TRIM, RH

main62510-14460-01iRA63,TA61,63..CP..(GT,GTT,SX)198107-198308

BLACK,BLACK,TRIM2#

main62510-14460-06iTA63..CP..SX198107-198308

DARK BROWN,BROWN,TRIM4#

main62510-14560-01iSA60,TA6#..CP..(GTR,GTS,ST,SV)198107-198507

BLACK,BLACK,TRIM2#

main62510-14560-04iAA63,SA60,TA63..CP..(GT,GTT,ST)198308-198507

BLUE,BLUE,TRIM8#

main62510-14560-06iAA63,SA60,TA63..CP..(GT,GTT,ST)198107-198507

DARK BROWN,BROWN,TRIM4#

main62510-14570-01iAA63,SA60,TA63..LB..(GT,GTT,ST,SV)198107-198507

BLACK,BLACK,TRIM2#

main62510-14570-02iGA61,MA6#..G,GT198210-198308

*SPS,LEATHER SEAT,TERRA COTTA,RED/MAROON,TRIM3#

main62510-14570-02iMA61;GA61,MA63..G198107-198210

LEATHER SEAT,TERRA COTTA,RED/MAROON,TRIM3#

main62510-14570-04iSA60,TA63..LB..ST198107-198507

BLUE,BLUE,TRIM8#

main62510-14570-06iAA63,SA60,TA63..LB..(GT,GTT,ST)198107-198507

DARK BROWN,BROWN,TRIM4#

main62510-14580-01iRA63,TA61,63..LB..(GT,GTT,SX)198107-198308

BLACK,BLACK,TRIM2#

main62510-14580-04iRA63,TA61..LB..GT198107-198308

BLUE,BLUE,TRIM8#

main62510-14580-06iRA63,TA61..LB..GT198107-198308

DARK BROWN,BROWN,TRIM4#

main62510-14620-01iGA61,MA63..L,S198107-198308

BLACK,BLACK,TRIM2#

main62510-14620-02iGA61,MA63..L,S198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main62510-14620-04iGA61,MA63..L,S198107-198308

BLUE,BLUE,TRIM8#

main62510-14620-11iGA61,MA63..S198308-198512

BLACK,BLACK,TRIM2#

main62510-14620-12iGA61,MA63..S198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main62510-14620-14iGA61,MA63..S198308-198512

BLUE,BLUE,TRIM8#

main62510-14630-01iGA61,MA63..G198107-198308

BLACK,BLACK,TRIM2#

main62510-14630-02iGA61,MA63..G198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main62510-14630-04iGA61,MA63..G198107-198308

BLUE,BLUE,TRIM8#

main62510-14640-01iGA61,MA61..GT198107-198308

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62510-14640-02iMA63..G198107-198308

W/SPORTS SEAT,TERRA COTTA,RED/MAROON,TRIM3#

main62510-14640-04iGA61,MA61..GT198107-198308

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62510-14790-01iAA63,TA63..CP198308-198507

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62510-14790-01iSA60..CP..SX198308-198507

BLACK,BLACK,TRIM2#

main62510-14790-04iAA63,TA63..CP198308-198507

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62510-14790-04iSA60..CP..SX198308-198507

BLUE,BLUE,TRIM8#

main62510-14790-06iAA63,TA63..CP198308-198507

W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

main62510-14790-06iSA60..CP..SX198308-198507

DARK BROWN,BROWN,TRIM4#

main62510-14810-01iAA63,TA63..LB198308-198507

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62510-14810-01iAA63,TA63..LB198308-198507

BLACK,BLACK,TRIM2#

main62510-14810-04iAA63,TA63..LB198308-198507

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62510-14810-04iSA60..LB..SX198308-198507

BLUE,BLUE,TRIM8#

main62510-14810-06iAA63,TA63..LB198308-198507

W/SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

main62510-14810-06iSA60..LB..SX198308-198507

DARK BROWN,BROWN,TRIM4#

main62510-14850-01iGA61,MA6#..G,GT198308-198512

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62510-14850-02iGA61,MA6#..G,GT198308-198512

W/SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main62510-14850-04iGA61,MA6#..G,GT198308-198512

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

62511EPOCKET, QUARTER TRIM

main62594-14040iRA63,TA61,63..CP..(GT,GTT,SX)198107-198512

main62594-14040iSA60..CP..SX198308-198507

*SPS

62512BOARD, QUARTER INSIDE TRIM, LH

main62520-14500-01iRA63,TA61,63..CP..(GT,GTT,SX)198107-198308

BLACK,BLACK,TRIM2#

main62520-14500-06iTA63..CP..SX198107-198308

DARK BROWN,BROWN,TRIM4#

main62520-14550-01iSA60,TA6#..CP..(GTR,GTS,ST,SV)198107-198507

BLACK,BLACK,TRIM2#

main62520-14550-04iAA63,SA60,TA63..CP..(GT,GTT,ST)198308-198507

BLUE,BLUE,TRIM8#

main62520-14550-06iSA60,TA63..CP..ST198107-198507

DARK BROWN,BROWN,TRIM4#

main62520-14560-01iSA60,TA61,63..LB..(GTR,ST,SV)198107-198507

BLACK,BLACK,TRIM2#

main62520-14560-02iMA61;GA61,MA63..G198107-198210

LEATHER SEAT,TERRA COTTA,RED/MAROON,TRIM3#

main62520-14560-02iGA61,MA6#..G,GT198210-198308

*SPS,LEATHER SEAT,TERRA COTTA,RED/MAROON,TRIM3#

main62520-14560-04iAA63,SA60,TA63..LB..(GT,GTT,ST)198107-198507

BLUE,BLUE,TRIM8#

main62520-14560-06iAA63,SA60,TA63..LB..(GT,GTT,ST)198107-198507

DARK BROWN,BROWN,TRIM4#

main62520-14570-01iRA63,TA61,63..LB..(GT,GTT,SX)198107-198308

BLACK,BLACK,TRIM2#

main62520-14570-04iRA63,TA61..LB..GT198107-198308

BLUE,BLUE,TRIM8#

main62520-14570-06iRA63,TA61..LB..GT198107-198308

DARK BROWN,BROWN,TRIM4#

main62520-14610-01iGA61,MA63..L,S198107-198308

BLACK,BLACK,TRIM2#

main62520-14610-02iGA61,MA63..L,S198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main62520-14610-04iGA61,MA63..L,S198107-198308

BLUE,BLUE,TRIM8#

main62520-14610-11iGA61,MA63..S198308-198512

BLACK,BLACK,TRIM2#

main62520-14610-12iGA61,MA63..S198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main62520-14610-14iGA61,MA63..S198308-198512

BLUE,BLUE,TRIM8#

main62520-14620-01iGA61,MA63..G198107-198308

BLACK,BLACK,TRIM2#

main62520-14620-02iGA61,MA63..G198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main62520-14620-04iGA61,MA63..G198107-198308

BLUE,BLUE,TRIM8#

main62520-14630-01iGA61,MA61..GT198107-198308

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62520-14630-02iGA61,MA61..GT198107-198308

W/SPORTS SEAT,TERRA COTTA,RED/MAROON,TRIM3#

main62520-14630-04iMA63..G198107-198308

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

main62520-14780-01iAA63,TA63..CP198308-198507

SPORTS SEAT,BLACK,BLACK,TRIM2#

main62520-14780-01iSA60..CP..SX198308-198507

BLACK,BLACK,TRIM2#

main62520-14780-04iAA63,TA63..CP198308-198507

SPORTS SEAT,BLUE,BLUE,TRIM8#

main62520-14780-04iSA60..CP..SX198308-198507

BLUE,BLUE,TRIM8#

main62520-14780-06iAA63,TA63..CP198308-198507

SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

main62520-14780-06iSA60..CP..SX198308-198507

DARK BROWN,BROWN,TRIM4#

main62520-14800-01iAA63,TA63..LB198308-198507

SPORTS SEAT,BLACK,BLACK,TRIM2#

main62520-14800-01iSA60..LB..SX198308-198507

BLACK,BLACK,TRIM2#

main62520-14800-04iAA63,TA63..LB198308-198507

BLUE,BLUE,TRIM8#

main62520-14800-04iSA60..LB..SX198308-198507

SPORTS SEAT,BLUE,BLUE,TRIM8#

main62520-14800-06iAA63,TA63..LB198308-198507

SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

main62520-14800-06iSA60..LB..SX198308-198507

DARK BROWN,BROWN,TRIM4#

main62520-14840-01iGA61,MA6#..G,GT198308-198512

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

main62520-14840-02iGA61,MA6#..G,GT198308-198512

W/SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

main62520-14840-04iGA61,MA6#..G,GT198308-198512

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

62512SBASE, QUARTER TRIM, FRONT

main62517-14050-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

RH,BLACK,BLACK,TRIM2#

sub62517-14050

main62517-14050-02iGA61,MA6#198107-198308

RH,TERRA COTTA,RED/MAROON,TRIM3#

sub62517-14050

main62517-14050-04iTA63..LB..(ST,SX)198107-198512

RH,BLUE,BLUE,TRIM8#

sub62517-14050

main62517-14050-06iRA63,SA60,TA61..GT,ST198107-198507

RH,DARK BROWN,BROWN,TRIM4#

sub62517-14050

main62517-14050-12iGA61,MA6#198308-198512

RH,DEEP MAROON,RED/MAROON,TRIM3#

sub62517-14050

main62518-14030-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

LH,BLACK,BLACK,TRIM2#

sub62518-14030

main62518-14030-02iGA61,MA6#198107-198308

LH,TERRA COTTA,RED/MAROON,TRIM3#

sub62518-14030

main62518-14030-04iTA63..LB..(ST,SX)198107-198512

LH,BLUE,BLUE,TRIM8#

sub62518-14030

main62518-14030-06iRA63,SA60,TA61..GT,ST198107-198507

LH,DARK BROWN,BROWN,TRIM4#

sub62518-14030

main62518-14030-12iGA61,MA6#198308-198512

LH,DEEP MAROON,RED/MAROON,TRIM3#

sub62518-14030

62520COVER ASSY, BACK WINDOW SIDE GARNISH, LH

main62472-14180-01iAA63,GA61,MA6#,RA63,SA60,TA61,63..LB198107-198512

BLACK,BLACK,TRIM2#

sub62472-14180

main62472-14180-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62472-14180

main62472-14180-04iGA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)198107-198512

BLUE,BLUE,TRIM8#

sub62472-14180

main62472-14180-06iRA63,SA60,TA61..LB..(GT,ST)198107-198507

DARK BROWN,BROWN,TRIM4#

sub62472-14180

main62472-14180-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62472-14180

main62572-14090-01iAA63,RA63,SA60,TA6#..CP198107-198507

BLACK,BLACK,TRIM2#

main62572-14090-04iAA63,SA60,TA63..CP..(GT,GTT,ST,SX)198308-198507

BLUE,BLUE,TRIM8#

main62572-14090-06iRA63,SA60,TA61..CP..(GT,ST)198107-198507

DARK BROWN,BROWN,TRIM4#

62521COVER, QUARTER INSIDE SERVICE HOLE, RH

main62538-14010-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

sub62538-14010

main62538-14010-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62538-14010

main62538-14010-04iTA63..LB..(ST,SX)198107-198512

BLUE,BLUE,TRIM8#

sub62538-14010

main62538-14010-06iRA63,SA60,TA61..GT,ST198107-198308

DARK BROWN,BROWN,TRIM4#

sub62538-14010

main62538-14010-06iAA63,SA60,TA63..GT,GTT,ST,SX198308-198507

DARK BRWON,BROWN,TRIM4#

sub62538-14010

main62538-14010-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62538-14010

62522COVER, QUARTER INSIDE SERVICE HOLE, LH

main62538-14010-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

sub62538-14010

main62538-14010-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62538-14010

main62538-14010-04iTA63..LB..(ST,SX)198107-198512

BLUE,BLUE,TRIM8#

sub62538-14010

main62538-14010-06iRA63,SA60,TA61..GT,ST198107-198507

DARK BROWN,BROWN,TRIM4#

sub62538-14010

main62538-14010-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62538-14010

62530PANEL ASSY, QUARTER TRIM, LOWER RH

main62513-14020-01iSA60,TA6#..CP..(GTR,GTS,ST,SV)198107-198507

BLACK,BLACK,TRIM2#

sub62513-14020

main62513-14020-04iAA63,SA60,TA63..CP..(GT,GTT,ST)198308-198507

BLUE,BLUE,TRIM8#

sub62513-14020

main62513-14020-06iSA60,TA63..CP..ST198107-198507

DARK BROWN,BROWN,TRIM4#

sub62513-14020

main62513-14040-01iRA63,TA61,63..CP..(GT,GTT,SX)198107-198512

BLACK,BLACK,TRIM2#

sub62513-14040

main62513-14040-01iRA63,TA61,63..CP..(GT,GTT,SX)198107-198512

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

sub62513-14040

main62513-14040-01iSA60..CP..SX198308-198507

SPORTS SEAT,BLACK,BLACK,TRIM2#

sub62513-14040

main62513-14040-02iGA61,MA61..GT198107-198308

TERRA COTTA,TERACOTTA,TRIM3#

sub62513-14040

main62513-14040-02iGA61,MA61..GT198107-198308

W/SPORTS SEAT,TERRA COTTA,TERACOTTA,TRIM3#

sub62513-14040

main62513-14040-02iMA61;GA61,MA63..G198107-198210

LEATHER SEAT,TERRA COTTA,TERACOTTA,TRIM3#

sub62513-14040

main62513-14040-02iGA61,MA6#..G,GT198210-198308

*SPS,LEATHER SEAT,TERRA COTTA,TERACOTTA,TRIM3#

sub62513-14040

main62513-14040-02iMA63..G198202-198308

W/SPORTS SEAT, TERRA COTTA,TERACOTTA,TRIM3#

sub62513-14040

main62513-14040-04iTA63..LB..(ST,SX)198107-198512

BLUE,BLUE,TRIM8#

sub62513-14040

main62513-14040-04iTA63..LB..(ST,SX)198107-198512

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

sub62513-14040

main62513-14040-04iSA60..CP..SX198308-198507

SPORTS SEAT,BLUE,BLUE,TRIM8#

sub62513-14040

main62513-14040-06iTA63..CP..(ST,SX)198107-198507

DARK BROWN,BROWN,TRIM4#

sub62513-14040

main62513-14040-06iSA60..CP..SX198308-198507

SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

sub62513-14040

main62513-14040-12iGA61,MA63..S198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62513-14040

main62513-14040-12iGA61,MA63..S198308-198512

W/SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

sub62513-14040

62535PAD, QUARTER WHEEL HOUSE TRIM

main62611-14020iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

62538PANEL, QUARTER TRIM ARMREST

main74250-14040-01iSA60,TA6#..CP..(GTR,GTS,ST,SV)198107-198507

RH,BLACK,BLACK,TRIM2#

main74250-14040-04iAA63,SA60,TA63..CP..(GT,GTT,ST)198308-198507

RH,BLUE,BLUE,TRIM8#

main74250-14040-06iSA60,TA63..CP..ST198107-198507

RH,DARK BROWN,BROWN,TRIM4#

main74250-14050-01iSA60..CP..SX198107-198512

RH,BLACK,BLACK,TRIM2#

main74250-14050-01iSA60..CP..SX198308-198507

RH,*SPS,BLACK,BLACK,TRIM2#

main74250-14050-02iGA61,MA6#198107-198308

RH,TERRA COTTA,RED/MAROON,TRIM3#

main74250-14050-04iSA60..CP..SX198107-198512

RH,BLUE,BLUE,TRIM8#

main74250-14050-04iAA63,TA63..CP198308-198507

RH,*SPS,BLUE,BLUE,TRIM8#

main74250-14050-06iRA63,TA61..CP..GT198107-198507

RH,DARK BROWN,BROWN,TRIM4#

main74250-14050-06iSA60..CP..SX198308-198507

RH,*SPS,DARK BROWN,BROWN,TRIM4#

main74250-14050-12iGA61,MA6#198308-198512

RH,DEEP MAROON,RED/MAROON,TRIM3#

main74250-14060-01iSA60,TA61..LB..(GTR,SV)198107-198507

RH,BLACK,BLACK,TRIM2#

main74250-14070iMA61;GA61,MA63..G198107-198210

RH,W/LEATHER SEAT

main74250-14070iGA61,MA6#..G,GT198210-198308

RH,*SPS,LEATHER SEAT

main74260-14020-01iSA60..CP..SX198107-198512

LH,BLACK,BLACK,TRIM2#

main74260-14020-01iSA60..CP..SX198308-198507

LH,*SPS,BLACK,BLACK,TRIM2#

main74260-14020-02iGA61,MA6#198107-198308

LH,TERRA COTTA,RED/MAROON,TRIM3#

main74260-14020-04iSA60..CP..SX198308-198507

LH,*SPS,BLUE,BLUE,TRIM8#

main74260-14020-04iTA63..LB..(ST,SX)198107-198512

LH,BLUE,BLUE,TRIM8#

main74260-14020-06iTA63..LB..(ST,SX)198107-198507

LH,DARK BROWN,BROWN,TRIM4#

main74260-14020-12iGA61,MA6#198308-198512

LH,DEEP MAROON,RED/MAROON,TRIM3#

main74260-14030-01iSA60,TA61..LB..(GTR,SV)198107-198507

LH,BLACK,BLACK,TRIM2#

main74260-14040iGA61,MA6#..G,GT198210-198308

LH,*SPS,LEATHER SEAT

main74260-14040iMA61;GA61,MA63..G198107-198210

LH,W/LEATHER SEAT

main74260-14050-01iAA63,SA60,TA63..CP..(GT,GTT,ST,SV)198107-198507

LH,BLACK,BLACK,TRIM2#

main74260-14050-04iAA63,SA60,TA63..CP..(GT,GTT,ST)198308-198507

LH,BLUE,BLUE,TRIM8#

main74260-14050-06iAA63,SA60,TA63..CP..(GT,GTT,ST)198107-198507

LH,DARK BROWN,BROWN,TRIM4#

62540PANEL ASSY, QUARTER TRIM, LOWER LH

main62514-14020-01iAA63,SA60,TA63..CP..(GT,GTT,ST,SV)198107-198507

BLACK,BLACK,TRIM2#

sub62514-14020

main62514-14020-04iAA63,SA60,TA63..CP..(GT,GTT,ST)198308-198507

BLUE,BLUE,TRIM8#

sub62514-14020

main62514-14020-06iSA60,TA63..CP..ST198107-198507

DARK BROWN,BROWN,TRIM4#

sub62514-14020

main62514-14040-01iGA61,MA63..G198107-198512

BLACK,BLACK,TRIM2#

sub62514-14040

main62514-14040-01iGA61,MA63..G198107-198512

W/SPORTS SEAT,BLACK,BLACK,TRIM2#

sub62514-14040

main62514-14040-01iAA63,TA63..CP198308-198507

SPORTS SEAT,BLACK,BLACK,TRIM2#

sub62514-14040

main62514-14040-02iGA61,MA61..GT198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

sub62514-14040

main62514-14040-02iGA61,MA61..GT198107-198308

W/SPORTS SEAT,TERRA COTTA,RED/MAROON,TRIM3#

sub62514-14040

main62514-14040-02iMA61;GA61,MA63..G198107-198210

LEATHER SEAT,TERRA COTTA,RED/MAROON,TRIM3#

sub62514-14040

main62514-14040-02iGA61,MA6#..G,GT198210-198308

*SPS,LEATHER SEAT,TERRA COTTA,RED/MAROON,TRIM3#

sub62514-14040

main62514-14040-04iRA63,SA60,TA61..LB..(GT,ST)198107-198512

W/SPORTS SEAT,BLUE,BLUE,TRIM8#

sub62514-14040

main62514-14040-04iGA61,MA61..GT198107-198512

BLUE,BLUE,TRIM8#

sub62514-14040

main62514-14040-04iSA60..CP..SX198308-198507

SPORTS SEAT,BLUE,BLUE,TRIM8#

sub62514-14040

main62514-14040-06iAA63,TA63..CP198308-198507

SPORTS SEAT,DARK BROWN,BROWN,TRIM4#

sub62514-14040

main62514-14040-06iTA63..CP..(ST,SX)198107-198507

DARK BROWN,BROWN,TRIM4#

sub62514-14040

main62514-14040-12iGA61,MA6#..G,GT198308-198512

W/SPORTS SEAT,DEEP MAROON,RED/MAROON,TRIM3#

sub62514-14040

main62514-14040-12iGA61,MA63..S198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

sub62514-14040

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-14070iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

RH

main62562-14060iMA63,TA63,64198202-198507

LH

main62562-14070iTA63..ST,SX198107-198512

LH

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-14060iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

RH

main62564-14020iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

LH

62581RETAINER, QUARTER TRIM

main62533-14050iAA63,RA63,SA60,TA6#..CP198107-198507

RH

main62534-14040iAA63,RA63,SA60,TA6#..CP198107-198507

LH

6777112010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12010

9016126008

main90161-26008

9016740014

main90167-40014

9016840008

main90168-40008

9046705023

main90467-05023

9046708015

main90467-08015

9046804036

main90468-04036

9046804044

main90468-04044

9046805017

main90468-05017

9046805033

main90468-05033

9046806023

main90468-06023

9354054010

main93540-54010

9356014012

main93560-14012

9356055014

main93560-55014

50 parts on this diagram · 2 diagrams in section
