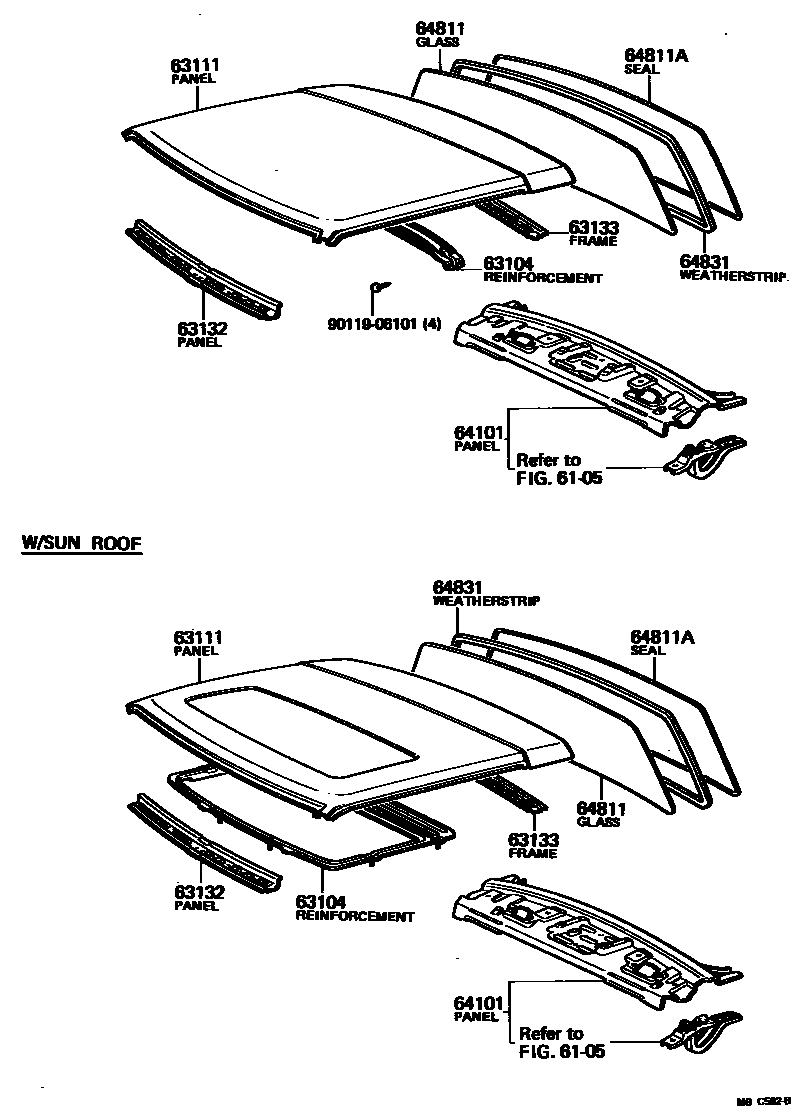

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-14080iMA61198107-198308

NAVICOM

main63141-14060iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main63142-14030iSA60..SX198308-198507

63111PANEL, ROOF

main63111-14140iAA63,RA63,SA60,TA6#..CP198107-198507

main63111-14150iAA63,RA63,TA61,63..CP198107-198507

W/SUN ROOF

main63111-14160iAA63,GA61,MA6#,RA63,SA60,TA61,63..LB198107-198512

main63111-14170iAA63,GA61,MA6#,RA63,TA61,63..LB198107-198512

W/SUN ROOF

63132PANEL, WINDSHIELD HEADER, INNER

main63102-14070iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

63133FRAME, BACK WINDOW OPENING, UPPER

main63105-14030iAA63,GA61,MA6#,RA63,SA60,TA61,63..LB198107-198512

main63133-14090iAA63,RA63,SA60,TA6#..CP198107-198507

64101PANEL SUB-ASSY, UPPER BACK

main64101-14170iSA60,TA6#..CP..(GTR,GTS,ST,SV)198107-198308

main64101-14190iRA63,TA61,63..CP..(GT,GTT,SX)198107-198308

64811GLASS, BACK WINDOW

main64801-14400iAA63,RA63,SA60,TA6#..CP198107-198507

T=3.5,*EHTT

64811ASEAL, BACK WINDOW GLASS WEATHERSTRIP

main64814-14030iAA63,RA63,SA60,TA6#..CP198107-198507

64831WEATHERSTRIP, BACK WINDOW GLASS

main64812-14120iSA60..CP..SV198107-198507

main64812-14130iAA63,RA63,SA60,TA6#..CP..(GT,GTR,GTS,GTT,ST,SX)198107-198507

9011906101

main90119-06101

10 parts on this diagram · 3 diagrams in section
