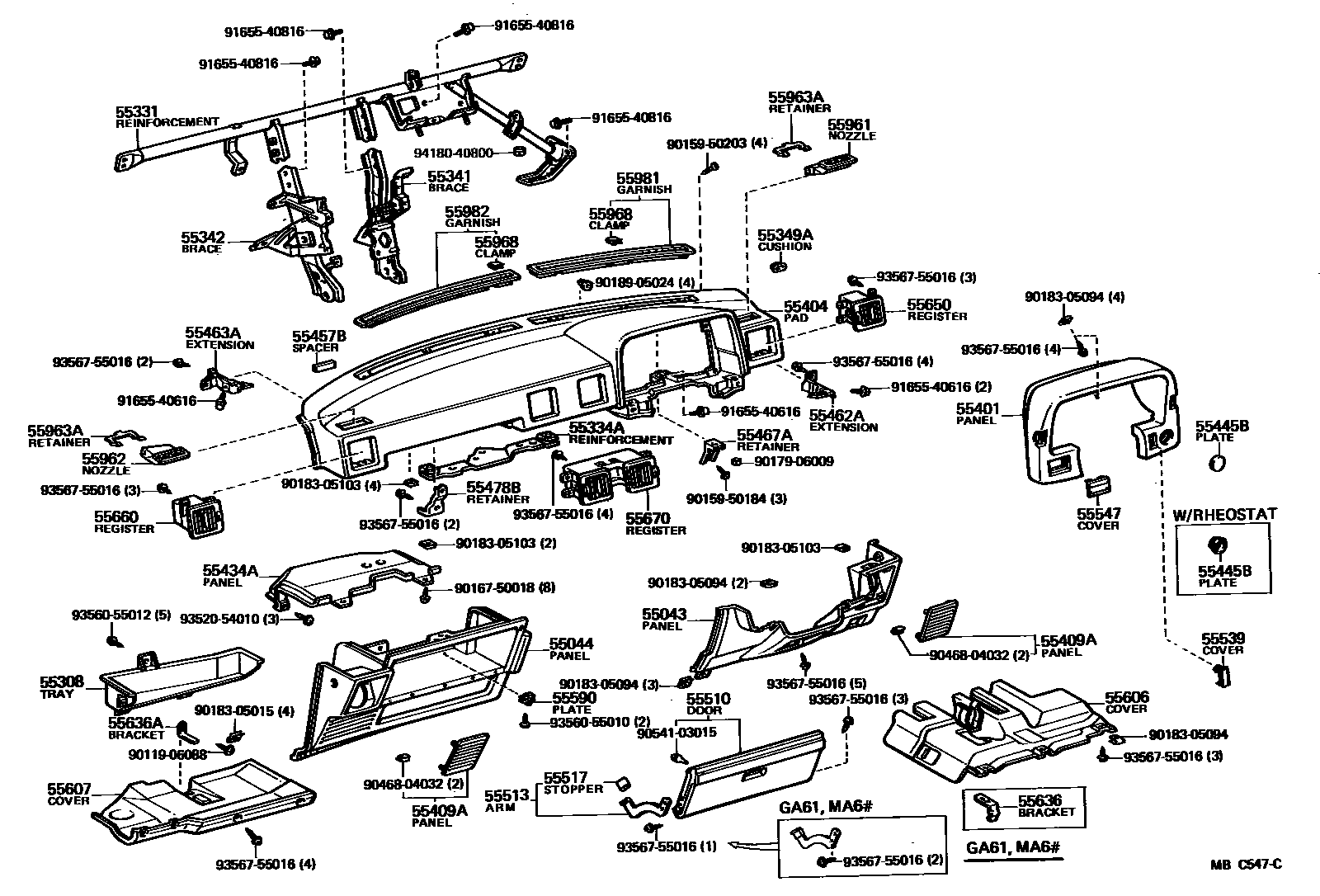

INSTRUMENT PANEL & GLOVE COMPARTMENT

55043PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH

main55045-14070-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main55045-14070-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55045-14070-04iTA63..LB..(ST,SX)198107-198512

BLUE,BLUE,TRIM8#

main55045-14070-06iRA63,SA60,TA61..GT,ST198107-198507

DARK BROWN,BROWN,TRIM4#

main55045-14070-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55044PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH

main55046-14060-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main55046-14060-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55046-14060-04iTA63..LB..(ST,SX)198107-198512

BLUE,BLUE,TRIM8#

main55046-14060-06iAA63,SA60,TA63..GT,GTT,ST,SX198107-198507

DARK BROWN,BROWN,TRIM4#

main55046-14060-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER

main55601-14180-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main55601-14180-02iGA61,MA6#198107-198209

TERRA COTTA,RED/MAROON,TRIM3#

main55601-14180-04iGA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)198107-198209

BLUE,BLUE,TRIM8#

main55601-14180-06iTA63198107-198209

DARK BROWN,BROWN,TRIM4#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55334AREINFORCEMENT, INSTRUMENT PANEL, UPPER

main55334-14010iGA61,MA61,RA63,SA60,TA6#198107-198108

main55334-14011iAA63,GA61,MA6#,RA63,SA60,TA6#198108-198512

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-14030iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-14080iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55349ACUSHION, INSTRUMENT PANEL

main90467-13014iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-14450-01iAA63,RA63,SA60,TA6#198107-198507

BLACK,BLACK,TRIM2#

main55404-14450-04iRA63,SA60,TA61..LB..(GT,ST)198107-198507

BLUE,BLUE,TRIM8#

main55404-14450-06iRA63,SA60,TA61..GT,ST198107-198507

DARK BROWN,BROWN,TRIM4#

main55404-14470-01iGA61,MA6#198107-198512

BLACK,BLACK,TRIM2#

main55404-14470-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55404-14470-04iGA61,MA6#198107-198512

BLUE,BLUE,TRIM8#

main55404-14470-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-14360-01iAA63,RA63,SA60,TA6#198107-198507

BLACK,BLACK,TRIM2#

main55401-14360-04iTA63..LB..(ST,SX)198107-198507

BLUE,BLUE,TRIM8#

main55401-14360-06iTA63..ST,SX198107-198507

DARK BROWN,BROWN,TRIM4#

main55401-14380-01iGA61,MA6#198107-198512

BLACK,BLACK,TRIM2#

main55401-14380-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55401-14380-04iGA61,MA6#198107-198512

BLUE,BLUE,TRIM8#

main55401-14380-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main55401-14450-01iMA61198107-198308

W/NAVICOM,BLACK,BLACK,TRIM2#

main55401-14450-02iMA61198107-198308

W/NAVICOM,TERRA COTTA,RED/MAROON,TRIM3#

main55401-14450-04iMA61198107-198308

W/NAVICOM,BLUE,BLUE,TRIM8#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55408-14010-01iAA63,SA60,TA63198107-198512

RH,BLACK,BLACK,TRIM2#

main55408-14010-02iGA61,MA63..S198308-198512

RH,DEEP MAROON,RED/MAROON,TRIM3#

main55408-14010-04iAA63,SA60,TA63198107-198512

RH,BLUE,BLUE,TRIM8#

main55408-14010-06iAA63,SA60,TA63198107-198507

RH,DARK BROWN,BROWN,TRIM4#

main55408-14030-01iTA63..SX198107-198512

RH,BLACK,BLACK,TRIM2#

main55408-14030-02iGA61,MA6#198107-198308

RH,TERRA COTTA,RED/MAROON,TRIM3#

main55408-14030-04iGA61,MA6#,RA63,TA61..LB..(G,GT,L,S)198107-198212

RH,BLUE,BLUE,TRIM8#

main55408-14030-06iTA63..SX198107-198212

RH,DARK BROWN,BROWN,TRIM4#

main55408-14030-12iGA61,MA6#..G,GT198308-198512

RH,DEEP MAROON,RED/MAROON,TRIM3#

main55408-14030-14iGA61,MA6#,TA61..LB..(G,GT,L,S)198212-198512

RH,BLUE,BLUE,TRIM8#

main55408-14030-26iTA61..GT198212-198308

RH,DARK BROWN,BROWN,TRIM4#

main55409-14010-01iSA60,TA6#..GTR,GTS,GTT,ST,SV198107-198512

LH,BLACK,BLACK,TRIM2#

main55409-14010-02iGA61,MA63..S198308-198512

LH,DEEP MAROON,RED/MAROON,TRIM3#

main55409-14010-04iAA63,SA60,TA63198107-198512

LH,BLUE,BLUE,TRIM8#

main55409-14010-06iSA60,TA63..ST198107-198507

LH,DARK BROWN,BROWN,TRIM4#

main55409-14030-01iGA61,MA6#..G,GT198107-198512

LH,BLACK,BLACK,TRIM2#

main55409-14030-02iGA61,MA6#198107-198308

LH,TERRA COTTA,RED/MAROON,TRIM3#

main55409-14030-04iGA61,MA6#,RA63,TA61..LB..(G,GT,L,S)198107-198212

LH,BLUE,BLUE,TRIM8#

main55409-14030-06iTA63..SX198107-198212

LH,DARK BROWN,BROWN,TRIM4#

main55409-14030-12iGA61,MA6#..G,GT198308-198512

LH,DEEP MAROON,RED/MAROON,TRIM3#

main55409-14030-14iGA61,MA6#,TA61..LB..(G,GT,L,S)198212-198512

LH,BLUE,BLUE,TRIM8#

main55409-14030-26iTA61..GT198212-198308

LH,DARK BROWN,BROWN,TRIM4#

55434APANEL, INSTRUMENT FINISH, LOWER SUB

main55434-14030-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main55434-14030-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55434-14030-04iTA63..LB..(ST,SX)198107-198308

BLUE,BLUE,TRIM8#

main55434-14030-06iTA63..ST,SX198107-198308

DARK BROWN,BROWN,TRIM4#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-14010-01iTA63..SX198107-198512

W/RHEOSTAT,BLACK,BLACK,TRIM2#

main55445-14010-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55445-14010-04iGA61,MA6#,RA63,TA61..LB..(G,GT,L,S)198107-198512

W/RHEOSTAT,BLUE,BLUE,TRIM8#

main55445-14010-06iRA63,TA61..GT198107-198507

W/RHEOSTAT,DARK BROWN,BROWN,TRIM4#

main55445-14010-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

main55445-14030-01iSA60,TA6#..GTR,GTS,GTT,ST,SV198107-198507

W/O RHEOSTAT,BLACK,BLACK,TRIM2#

main55445-14030-04iAA63,SA60,TA63..GT,GTT,ST,SX198107-198507

W/O RHEOSTAT,BLUE,BLUE,TRIM8#

main55445-14030-06iSA60,TA63..ST198107-198507

W/O RHEOSTAT,DARK BROWN,BROWN,TRIM4#

55457BSPACER, INSTRUMENT PANEL SAFETY PAD

main55457-22030iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55462AEXTENSION, INSTRUMENT SAFETY PAD INSERT, RH

main55462-14050iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55463AEXTENSION, INSTRUMENT SAFETY PAD INSERT, LH

main55463-14060iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55467ARETAINER, INSTRUMENT PANEL SAFETY PAD, NO.2

main55467-14070iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55478BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.4

main55478-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-14110-01iAA63,RA63,SA60,TA6#198107-198507

BLACK,BLACK,TRIM2#

main55550-14110-04iTA63..LB..(ST,SX)198107-198507

BLUE,BLUE,TRIM8#

main55550-14110-06iRA63,SA60,TA61..GT,ST198107-198507

DARK BROWN,BROWN,TRIM4#

main55550-14130-01iGA61,MA6#198107-198512

BLACK,BLACK,TRIM2#

main55550-14130-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55550-14130-04iGA61,MA6#198107-198512

BLUE,BLUE,TRIM8#

main55550-14130-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55513ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-14080iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55539COVER, SPARE SWITCH HOLE

main55539-14030-01iRA63,TA6#..GT,SX198107-198208

BLACK,BLACK,TRIM2#

main55539-14030-04iRA63,TA61..LB..GT198107-198208

BLUE,BLUE,TRIM8#

main55539-14030-06iTA63..SX198107-198208

DARK BROWN,BROWN,TRIM4#

main55539-14031-01iTA61,63..GT,SX198208-198308

BLACK,BLACK,TRIM2#

main55539-14031-04iTA63..LB..SX198208-198308

BLUE,BLUE,TRIM8#

main55539-14031-06iTA63..SX198208-198308

DARK BROWN,BROWN,TRIM4#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-14010-01iSA60,TA6#..GTR,GTS,ST,SV198107-198507

BLACK,BLACK,TRIM2#

main55547-14010-04iSA60,TA63..LB..ST198107-198507

BLUE,BLUE,TRIM8#

main55547-14010-06iSA60,TA63..ST198107-198507

DARK BROWN,BROWN,TRIM4#

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198412

main55590-14020iAA63,GA61,MA6#,SA60,TA63198412-198512

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-14030iGA61,MA6#198107-198512

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-14030iGA61,MA61,RA63,SA60,TA6#198107-198512

main55607-14080iMA63198202-198507

55636BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1

main55636-14030iGA61,MA6#198107-198512

55636ABRACKET, INSTRUMENT PANEL UNDER COVER, NO.2

main55636-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-14070-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main55650-14070-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55650-14070-04iGA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)198107-198512

BLUE,BLUE,TRIM8#

main55650-14070-06iTA63..ST,SX198107-198507

DARK BROWN,BROWN,TRIM4#

main55650-14070-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-14070-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main55660-14070-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55660-14070-04iTA63..LB..(ST,SX)198107-198512

BLUE,BLUE,TRIM8#

main55660-14070-06iTA63..ST,SX198107-198507

DARK BROWN,BROWN,TRIM4#

main55660-14070-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-14040-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main55670-14040-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55670-14040-04iGA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)198107-198512

BLUE,BLUE,TRIM8#

main55670-14040-06iRA63,SA60,TA61..GT,ST198107-198507

DARK BROWN,BROWN,TRIM4#

main55670-14040-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-14040-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main55961-14040-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55961-14040-04iGA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)198107-198512

BLUE,BLUE,TRIM8#

main55961-14040-06iRA63,SA60,TA61..GT,ST198107-198507

DARK BROWN,BROWN,TRIM4#

main55961-14040-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-14020-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main55962-14020-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55962-14020-04iTA63..LB..(ST,SX)198107-198512

BLUE,BLUE,TRIM8#

main55962-14020-06iTA63..ST,SX198107-198507

DARK BROWN,BROWN,TRIM4#

main55962-14020-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55963ARETAINER, SIDE DEFROSTER

main55963-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55968CLAMP, DEFROSTER NOZZLE

main55968-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-14020-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main55981-14020-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55981-14020-04iTA63..LB..(ST,SX)198107-198512

BLUE,BLUE,TRIM8#

main55981-14020-06iTA63..ST,SX198107-198507

DARK BROWN,BROWN,TRIM4#

main55981-14020-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-14020-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main55982-14020-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main55982-14020-04iGA61,MA6#,RA63,SA60,TA61..LB..(G,GT,L,S,ST)198107-198512

BLUE,BLUE,TRIM8#

main55982-14020-06iTA63..ST,SX198107-198507

DARK BROWN,BROWN,TRIM4#

main55982-14020-12iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

9011906088

main90119-06088

9015950184

main90159-50184

9015950203

main90159-50203

9016750018

main90167-50018

9017906009

main90179-06009

9018305015

main90183-05015

9018305094

main90183-05094

9018305103

main90183-05103

9018905024

main90189-05024

9046804032

main90468-04032

9054103015

main90541-03015

9165540616

main91655-40616

9165540816

main91655-40816

9352054010

main93520-54010

9356055010

main93560-55010

9356055012

main93560-55012

9356755016

main93567-55016

9418040800

main94180-40800

55 parts on this diagram · 1 diagram in section
