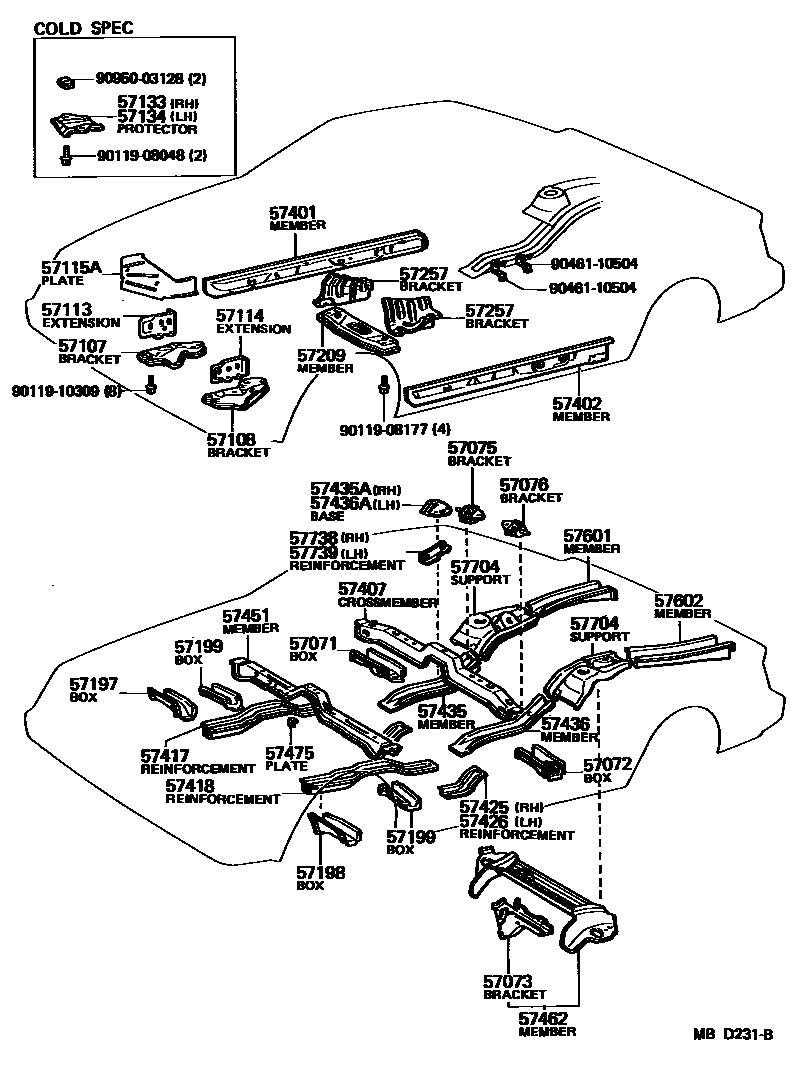

FLOOR SIDE MEMBER

0001 1 0002 1

57071BOX SUB-ASSY, TORQUE, REAR RH

main57071-14020iSA60,TA64198107-198507

main57071-14030iAA63,GA61,MA6#,RA63,TA61,63198107-198512

57072BOX SUB-ASSY, TORQUE, REAR LH

main57072-14020iSA60,TA64198107-198507

main57072-14030iAA63,GA61,MA6#,RA63,TA61,63198107-198512

57073BRACKET SUB-ASSY, LATERAL ROD

main57073-14040iSA60,TA64198107-198507

57075BRACKET SUB-ASSY, UPPER CONTROL LINK, RH

main57075-14030iSA60,TA64198107-198507

57076BRACKET SUB-ASSY, UPPER CONTROL LINK, LH

main57076-14030iSA60,TA64198107-198507

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-14080iAA63,RA63,SA60,TA6#198107-198507

main57107-24010iGA61,MA6#198107-198512

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-14080iAA63,RA63,SA60,TA6#198107-198507

main57108-24010iGA61,MA6#198107-198512

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-14090iAA63,RA63,SA60,TA6#198107-198507

main57113-14100iGA61,MA6#198107-198403

main57113-14110iGA61,MA6#198403-198512

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-14050iAA63,RA63,SA60,TA6#198107-198507

main57114-14060iGA61,MA6#198107-198403

main57114-14070iGA61,MA6#198403-198512

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-14090iAA63,SA60,TA63198308-198507

57133PROTECTOR, STRUT BAR BRACKET, RH

main57133-14020iGA61,MA6#198107-198512

COLD SPEC

main57133-14030iAA63,RA63,SA60,TA6#198107-198507

COLD SPEC

57134PROTECTOR, STRUT BAR BRACKET, LH

main57133-14020iGA61,MA6#198107-198512

COLD SPEC

main57134-14020iAA63,RA63,SA60,TA6#198107-198507

COLD SPEC

57197BOX, TORQUE, FRONT RH

main57197-14010iAA63,RA63,SA60,TA6#198107-198507

PLANT.A41,A42

main57197-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

PLANT.A51-A54

57198BOX, TORQUE, FRONT LH

main57198-14010iAA63,RA63,SA60,TA6#198107-198507

PLANT.A41,A42

main57198-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

PLANT.A51-A54

57199BOX, TORQUE, FRONT, NO.2

main58173-14010×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-14170iTA61,63..5F..(GT,GTR,ST,SX)198107-198308

main57209-14180iSA60..MTM198107-198507

main57209-14190iTA63..4FC..(ST,SX)198107-198308

main57209-14210iSA60..4FC198107-198507

main57209-14270iTA63..4FC..GTT198210-198507

main57209-14290iAA63198308-198507

main57209-24010iGA61,MA61..5F198107-198512

main57209-24020iGA61,MA6#..4FC198107-198512

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-14050iAA63,RA63,SA60,TA6#..GT,GTR,GTS,ST,SV,SX198107-198507

RH

main57257-24010iTA63..GTT198210-198507

RH

main57258-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

LH

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14180iSA60,TA64198107-198505

main57401-14190iAA63,GA61,MA6#,RA63,TA61,63198107-198505

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14180iSA60,TA64198107-198505

main57402-14190iAA63,GA61,MA6#,RA63,TA61,63198107-198505

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-14010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

57435MEMBER, CENTER FLOOR SIDE, RH

main57435-14010iSA60,TA64198107-198507

main57435-24010iAA63,GA61,MA6#,RA63,TA61,63198107-198512

57435ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-14010iSA60,TA64198107-198507

57436MEMBER, CENTER FLOOR SIDE, LH

main57436-14010iSA60,TA64198107-198507

main57436-14020iAA63,GA61,MA6#,RA63,TA61,63198107-198512

57436ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-14010iSA60,TA64198107-198507

57451MEMBER, FRONT FLOOR CROSS

main57451-24010iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57405-14080iSA60,TA64198107-198507

main57405-14100iAA63,GA61,MA6#,RA63,TA61,63198107-198512

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-24010×4iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14100iSA60,TA64198107-198507

main57601-14110iAA63,GA61,MA6#,RA63,TA61,63..LB198107-198512

main57601-14130iAA63,RA63,TA61,63..CP198107-198507

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14090iSA60,TA64198107-198507

main57602-14100iAA63,GA61,MA6#,RA63,TA61,63..LB198107-198512

main57602-14120iAA63,RA63,TA61,63..CP198107-198507

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57701-14040iSA60,TA64198107-198507

RH

main57704-14050iSA60,TA64198107-198507

LH

main57723-14030iAA63,GA61,MA6#,RA63,TA61,63198107-198512

RH

main57724-14020iAA63,GA61,MA6#,RA63,TA61,63198107-198512

LH

57738REINFORCEMENT, REAR STABILIZER BRACKET, RH

main57738-14020iSA60,TA64198107-198507

57739REINFORCEMENT, REAR STABILIZER BRACKET, LH

main57739-14010iSA60,TA64198107-198507

9011908048

main90119-08048

9011908177

main90119-08177

9011910309

main90119-10309

9046110504

main90461-10504

9095003128

main90950-03128

41 parts on this diagram · 2 diagrams in section
