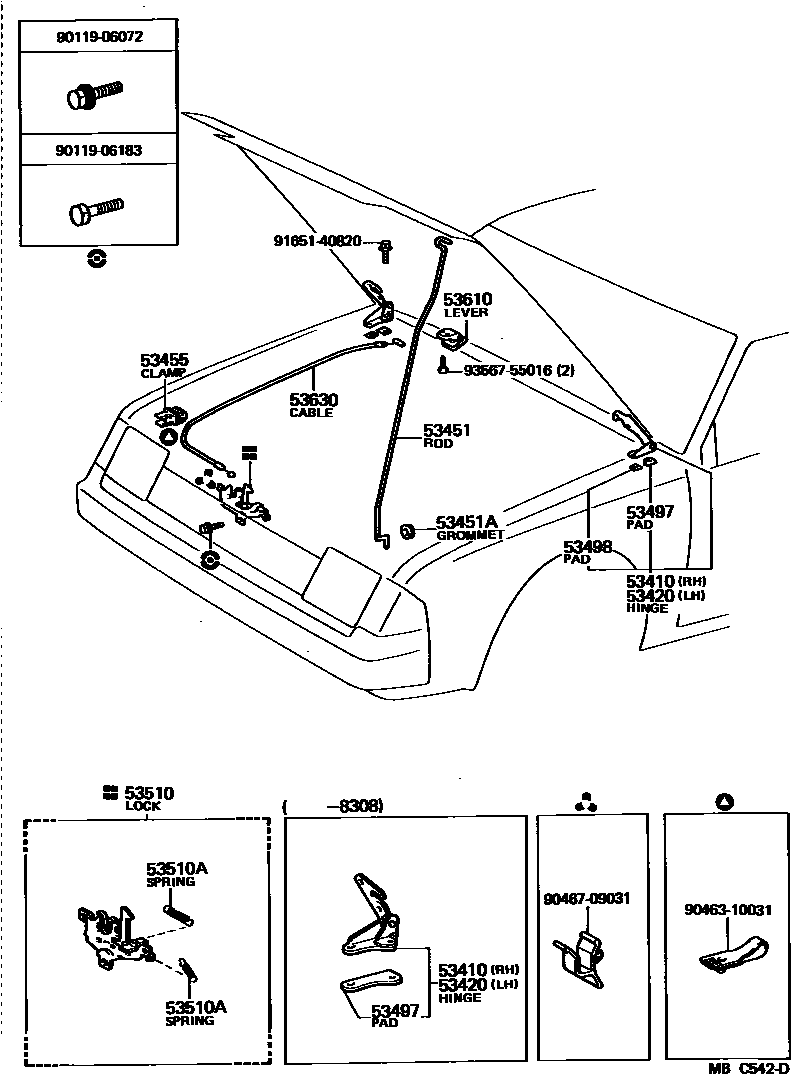

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-14070iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

53420HINGE ASSY, HOOD, LH

main53420-14050iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

53451ROD, HOOD SUPPORT

main53451-14050iRA63,SA60,TA6#198107-198308

main53451-14060iAA63,SA60,TA63198308-198507

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15002iRA63,SA60,TA6#198107-198201

main90480-15011iAA63,RA63,SA60,TA6#198201-198507

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iAA63,RA63,SA60,TA6#198107-198507

53497PAD, HOOD HINGE, NO.1

main53497-12010×2iAA63,GA61,MA6#,SA60,TA63198308-198512

main53497-14020×2iGA61,MA6#,RA63,SA60,TA6#198107-198308

53498PAD, HOOD HINGE, NO.2

main53498-12010×2iAA63,GA61,MA6#,SA60,TA63198308-198512

T=1.0,FR

53510LOCK ASSY, HOOD

main53510-14140iRA63,SA60,TA6#198107-198308

main53510-14160iGA61,MA6#198107-198308

main53510-14161iGA61,MA6#198308-198512

main53510-14180iAA63,SA60,TA63198308-198507

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008×2iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

main90506-18024iGA61,MA6#198107-198512

WD=2.0

main90506-20008iAA63,RA63,SA60,TA6#198107-198507

53610LEVER ASSY, HOOD LOCK RELEASE

main53601-14010-01iAA63,GA61,MA6#,RA63,SA60,TA6#198107-198512

BLACK,BLACK,TRIM2#

main53601-14010-02iGA61,MA6#198107-198308

TERRA COTTA,RED/MAROON,TRIM3#

main53601-14010-04iGA61,MA6#,RA63,SA60,TA61,63..LB..(G,GT,L,S,ST,SX)198107-198308

BLUE,BLUE,TRIM8#

main53601-14010-06iRA63,SA60,TA61,63..GT,ST,SX198107-198308

DARK BROWN,BROWN,TRIM4#

main53601-14010-22iGA61,MA6#198308-198512

DEEP MAROON,RED/MAROON,TRIM3#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-14190iGA61,MA6#198107-198512

main53630-14230iAA63,RA63,SA60,TA6#198107-198507

9011906072

main90119-06072

9011906183

main90119-06183

9046310031

main90463-10031

9046709031

main90467-09031

9165140820

main91651-40820

9356755016

main93567-55016

17 parts on this diagram · 2 diagrams in section
